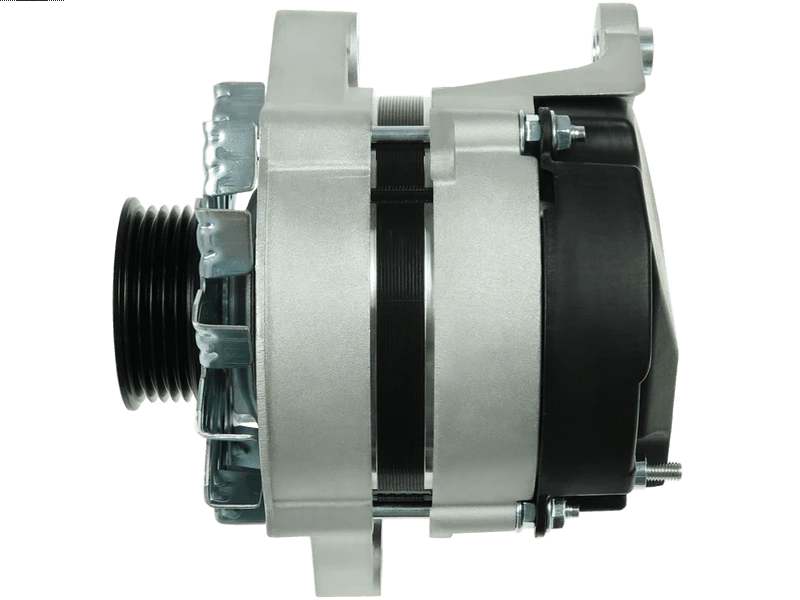

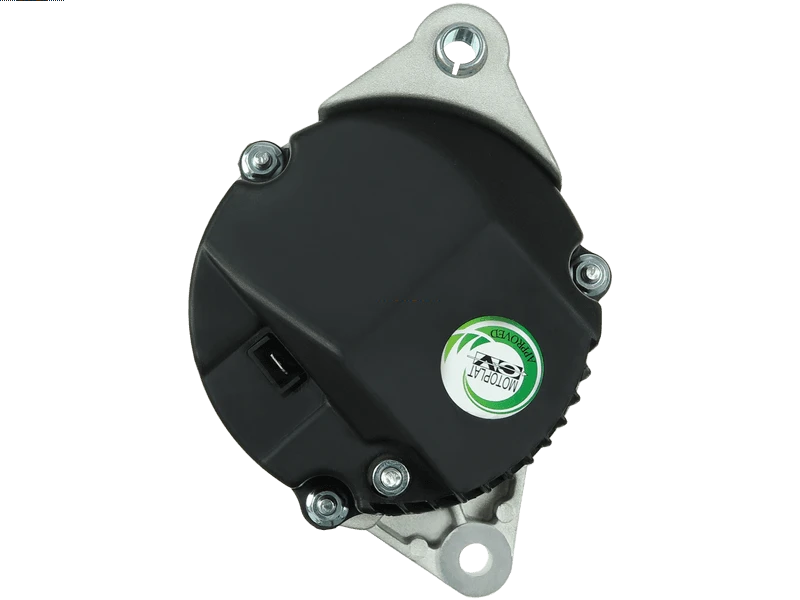

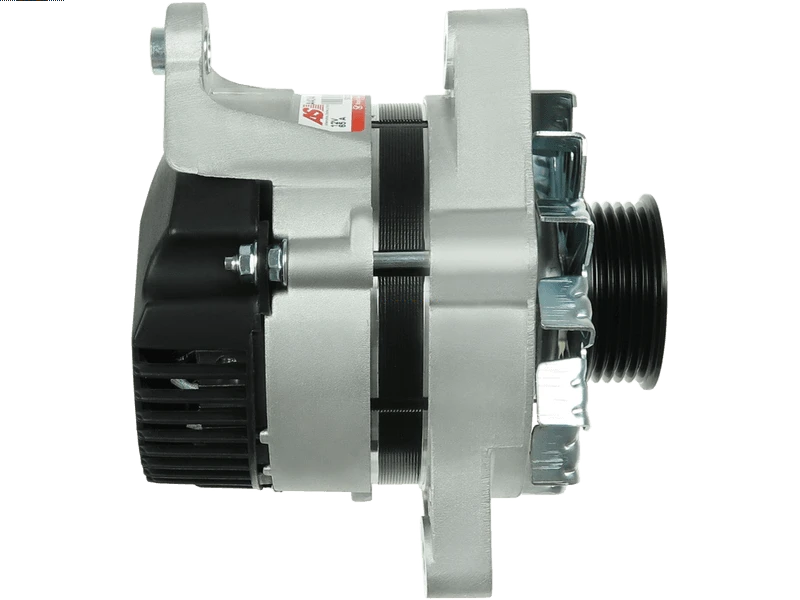

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 263.12 including GST
NZ$ 228.80 excluding GST
or four payments of $65.78
with
Learn More
each
A4044
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321156Associated Numbers
0986037130 0986037160 11.0596 11.201.697 11.201.698 113472 20104031BN 20104031OE 20104131BN 20104131OE 20104131RC 20110178 2030130 2030131 21178N 21181RW 28-1633 30596RI 30596RIM 436242 436244 4441 46231691 46231721 46445100 56102 63320048 63320082 63320083 63320132 63321091 63321149 63321156 63321157 7651070 7702242 7702245 89212744 8EL725879-001 9037160 A13E66 A13E67 AAK4558 AAK4559 AEA1278 ALT12036 CA596IR CAL30130AS CAL30130GS CAL30131AS CAL30131GS CAL30131RS DAN617 DRA3283 GA321156-A LRB00178 NA488 NA489 SA635 SA650Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Elba 1.6 | 04.1989-12.1996 | |
| FIAT | Fiorino 1.4 | [146C5.000] | 09.1993-06.1995 |
| FIAT | Fiorino 1.4 | [146D5.000] | 06.1995-12.2001 |
| FIAT | Fiorino 1.6 | [146C6.000] | 10.1990-05.2001 |
| FIAT | Fiorino 1.6 | [146D6.000] | 01.1994-12.2001 |
| FIAT | Tempra 1.4 i.e. | [160A1.046] | 03.1992-12.1996 |
| FIAT | Tempra 1.4 i.e. | [836A4.000] | 03.1995-12.1996 |
| FIAT | Tempra 1.6 i.e. | [159A3.046] | 06.1990-08.1996 |
| FIAT | Tempra 1.6 i.e. | [159A3.048] | 06.1992-03.1993 |
| FIAT | Tempra 1.6 i.e. | [159B9.000] | 05.1994-12.1996 |
| FIAT | Tempra 1.6 i.e. | [835C1.000] | 04.1993-08.1996 |
| FIAT | Tipo 1.4 i.e. | [160A1.046] | 05.1989-03.1993 |
| FIAT | Tipo 1.4 i.e. | [836A4.000] | 05.1989-10.1995 |
| FIAT | Tipo 1.6 i.e. | [159A3.046] | 03.1990-03.1993 |
| FIAT | Tipo 1.6 i.e. | [159A3.048] | 03.1993-10.1995 |
| FIAT | Tipo 1.6 i.e. | [835C1.000] | 03.1993-10.1995 |
| INNOCENTI | Elba 1.4 i.e. | [146C.5000] | 09.1994-12.1996 |
| INNOCENTI | Elba 1.4 i.e. | [146D.5000] | 09.1994-12.1996 |
| INNOCENTI | Elba 1.6 i.e. | [146C6.000] | 09.1994-12.1996 |
| INNOCENTI | Elba 1.6 i.e. | [146D6.000] | 09.1994-12.1996 |
| LANCIA | Dedra 1.6 | [159B9.000] | 10.1994-07.1999 |
| LANCIA | Dedra 1.6 i.e. | [835A1.000] | 08.1989-06.1994 |
| LANCIA | Dedra 1.6 i.e. | [835A1.046] | 08.1989-03.1993 |
| LANCIA | Dedra 1.6 i.e. | [835C1.000] | 04.1993-12.1999 |
| LANCIA | Dedra 1.6 LE | [159B9.000] | 07.1994-04.1998 |
| LANCIA | Delta 1.4 i.e. | [160A1.046] | 01.1993-04.1994 |
| LANCIA | Delta 1.4 i.e. | [836A4.000] | 04.1994-12.1999 |
| LANCIA | Delta 1.6 i.e. | [835C1.000] | 06.1993-12.1999 |
| LANCIA | Prisma 2.0 i.e. 4WD | [831B4.000] | 04.1986-12.1989 |
Reference Information
| 063321156010 | MAGNETI MARELLI |
| 0986037130 | BOSCH |
| 0986037160 | BOSCH |
| 0986037161 | BOSCH |
| 11.201.698 | ISKRA / LETRIKA |
| 20104131BN | REAL |
| 20104131OE | REAL |
| 20104131RC | REAL |
| 2030131.0 | SANDO |
| 2030131.1 | SANDO |
| 2030131.2 | SANDO |
| 210221 | ERA |
| 210221A | ERA |
| 28-1633 | ELSTOCK |
| 30596RI | KUHNER |
| 30596RIL | KUHNER |
| 30596RIM | KUHNER |
| 30596RIR | KUHNER |
| 32037130 | HERTH+BUSS |
| 43231721 | FIAT |
| 440403 | LOGISTIK |
| 4441 | CEVAM |
| 46207936 | FIAT |
| 46231690 | FIAT |
| 46231691 | FIAT |
| 46231721 | FIAT |
| 46445100 | FIAT |
| 505.024.065.050 | PSH |
| 505.024.065.215 | PSH |
| 505.024.065.260 | PSH |
| 505.024.065.311 | PSH |
| 505.024.065.312 | PSH |
| 505.024.065.395 | PSH |
| 505.024.065.605 | PSH |
| 63320048 | MAGNETI MARELLI |
| 63320132 | MAGNETI MARELLI |
| 63321089 | MAGNETI MARELLI |
| 63321156 | MAGNETI MARELLI |
| 63321157 | MAGNETI MARELLI |
| 72735207 | ISKRA / LETRIKA |
| 7596859 | FIAT |
| 7647441 | FIAT |
| 7648126 | FIAT |
| 7650210 | FIAT |
| 7651050 | FIAT |
| 7651051 | FIAT |
| 7651070 | FIAT |
| 7702241 | FIAT |
| 7702242 | FIAT |
| 7702245 | INNOCENTI |
| 7702245 | FIAT |
| 7702247 | FIAT |
| 7702372 | FIAT |
| 7715319 | FIAT |
| 7717878 | FIAT |
| 77547410 | FIAT |
| 77603410 | FIAT |
| 77603411 | FIAT |
| 89212744 | POWERMAX |
| 8EL012427-611 | HELLA |
| 8EL725879-001 | HELLA |
| 944390371300 | MAGNETI MARELLI |
| A12MA1193A2 | SIDAT |
| A132.731 | PSH |
| A146.142 | PSH |
| A4044 | AS-PL |
| AAK4559 | ISKRA / LETRIKA |
| AEA1278 | AUTOELECTRO |
| AG0184 | GHIBAUDI |
| ALE0596 | KRAUF |
| ALT12036 | WOODAUTO |
| ALT79154 | ELECTROLOG |
| ALT90093 | ELECTROLOG |
| ANM35503X | ANDEL |
| CA596IR | HC PARTS |
| CAL30131AS | CASCO |
| CAL30131GS | CASCO |
| CAL30131RS | CASCO |
| DA4393 | DELCO |
| DRA3283 | DELCO |
| IA0698 | ISKRA / LETRIKA |
| LRB00178 | LUCAS |
| LRB178 | LUCAS |
| MAN323 | MAGNETI MARELLI |
| MG208 | MAHLE |
| STA0233R | BOVEZ |
| STX100253 | STARDAX |
| STX100253R | STARDAX |
| STX100296 | STARDAX |
| STX100904 | STARDAX |
Video/Publications
