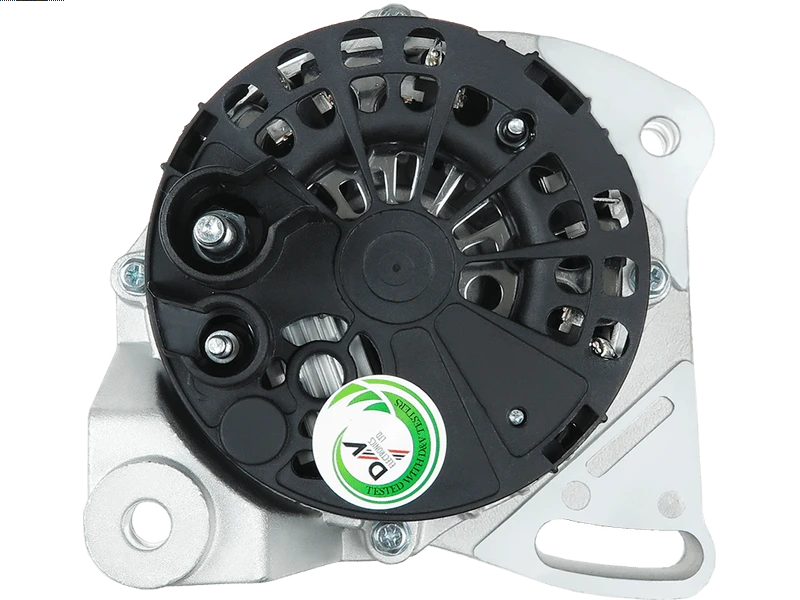

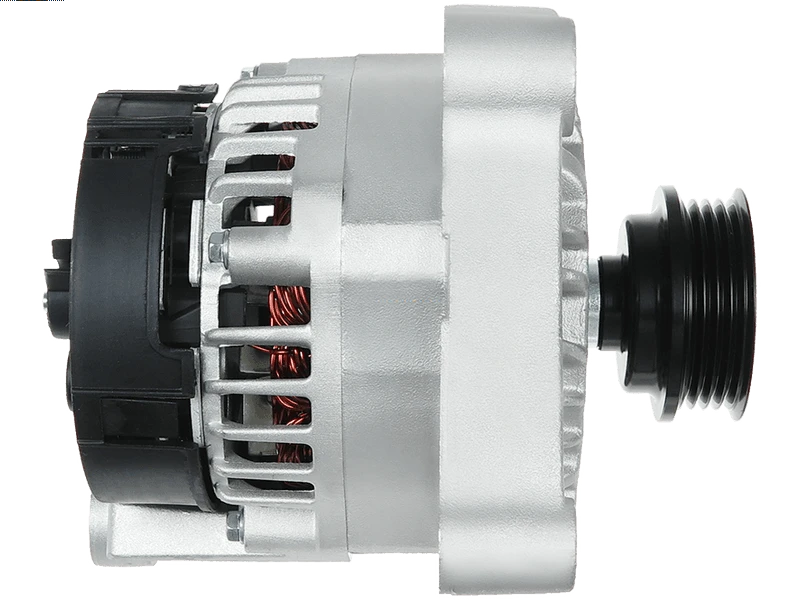

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 377.82 including GST
NZ$ 328.54 excluding GST
or four payments of $94.46
with
Learn More
each
A4075
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321626Associated Numbers
063321605010 0986048630 113684 2030158 22896R 28-3753 301349RI 301349RID 301647RI 301647RIM 301647RIR 4025 46231692 46419297 46437412 46530261 46765842 51717419 51759994 51832735 56968 63321605 63321626 63321626010 63321788 71721190 89213081 8EL012429-761 8EL737551-001 9213081 943321191010 944390394710 944390900990 AEC1349 ALE1349 CA1349IR CAL30158 CAL30158AS CAL30158ES CAL30158GS CAL30158OS CAL30158RS DA4753 DRA3643 LRA01889 LRA1889 MAN939 MAN941 MRA90099 UNIT BOM 202-316Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 202 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 69 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Albea 1.2 | [188A5.000] | 09.2001-12.2009 |
| FIAT | Brava 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Brava 1.2 16V | [182B2.000] | 12.1998-12.2002 |
| FIAT | Brava 1.2 16V | [188A5.000] | 10.2000-10.2001 |
| FIAT | Brava 1.2 16V | [188A5.000] | 12.1998- |
| FIAT | Bravo 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Bravo 1.2 16V | [188A5.000] | 10.2000-10.2001 |
| FIAT | Bravo 1.2 16V | [188A5.000] | 12.1998- |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998- |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998-05.2002 |
| FIAT | Palio 1.2 | [188A5.000] | 09.2001- |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997- |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-06.2000 |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-09.1999 |
| FIAT | Siena 1.2 | [178C4.066] | 09.2001- |
| FIAT | Siena 1.2 | [188A4.000] | 09.2001- |
| FIAT | Siena 1.2 | [188A5.000] | 09.2001- |
| FIAT | Strada 1.2 | [188A4.000] | 04.2003- |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-06.2000 |
Reference Information
| 0124215007 | BOSCH |
| 0124225061 | BOSCH |
| 0986048630 | BOSCH |
| 20104851BN | REAL |
| 20104851OE | REAL |
| 2030158.0 | SANDO |
| 2030158.1 | SANDO |
| 210485 | ERA |
| 22896R | WAI / TRANSPO |
| 28-3753 | ELSTOCK |
| 4025 | CEVAM |
| 437691 | VALEO |
| 441496 | LOGISTIK |
| 46437412 | FIAT |
| 46765842 | FIAT |
| 46816033 | FIAT |
| 505.520.065.050 | PSH |
| 505.520.065.210 | PSH |
| 505.520.065.265 | PSH |
| 51717419 | FIAT |
| 51759994 | FIAT |
| 51832735 | FIAT |
| 56968 | EAI |
| 63321626 | MAGNETI MARELLI |
| 63321788 | MAGNETI MARELLI |
| 71721166 | FIAT |
| 71721167 | FIAT |
| 71721190 | FIAT |
| 71780099 | FIAT |
| 8EL012429-761 | HELLA |
| 8EL737551-001 | HELLA |
| 943321191010 | MAGNETI MARELLI |
| A4075 | AS-PL |
| AEC1349 | AUTOELECTRO |
| AG1305 | GHIBAUDI |
| ALE1349 | KRAUF |
| ALT321580 | SIOM |
| ALT321580R | SIOM |
| ALT90011 | ELECTROLOG |
| ALTS078 | 3EFFE |
| ANM35863X | ANDEL |
| CA1349IR | HC PARTS |
| CAL30158AS | CASCO |
| CAL30158GS | CASCO |
| DA4753 | DELCO |
| DRA3643 | DELCO |
| LRA01889 | LUCAS |
| LRA1889 | LUCAS |
| MAN941 | MAGNETI MARELLI |
| MRA90099 | MAGNETI MARELLI |
| STA0132R | BOVEZ |
| STX100279 | STARDAX |
| STX100279R | STARDAX |
