A4077 - Brand new AS-PL Alternator

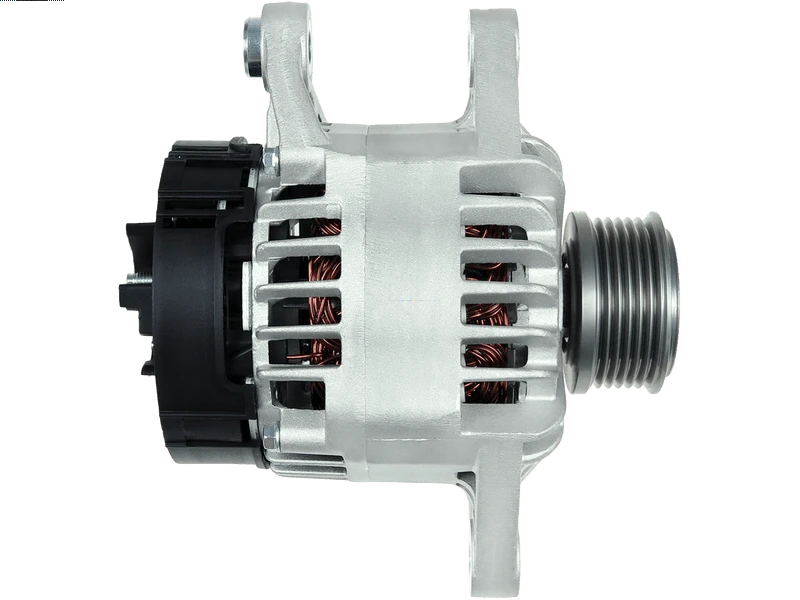

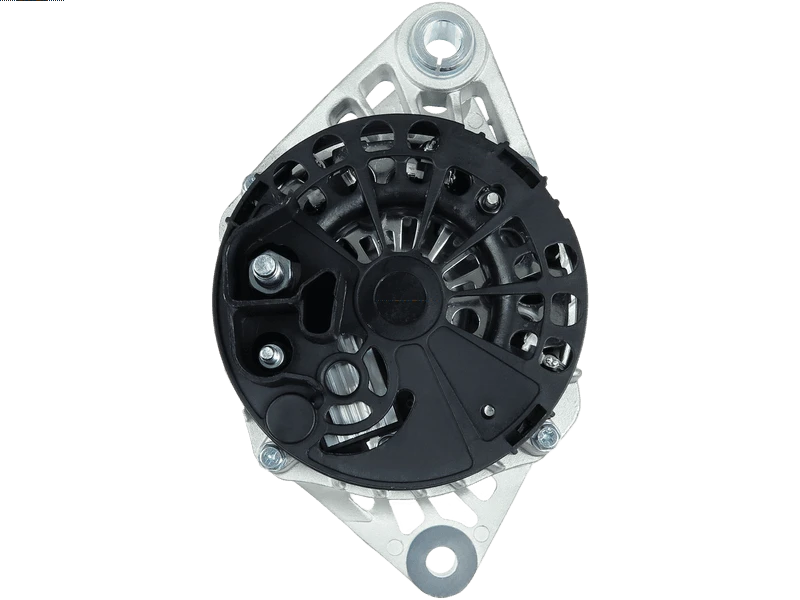

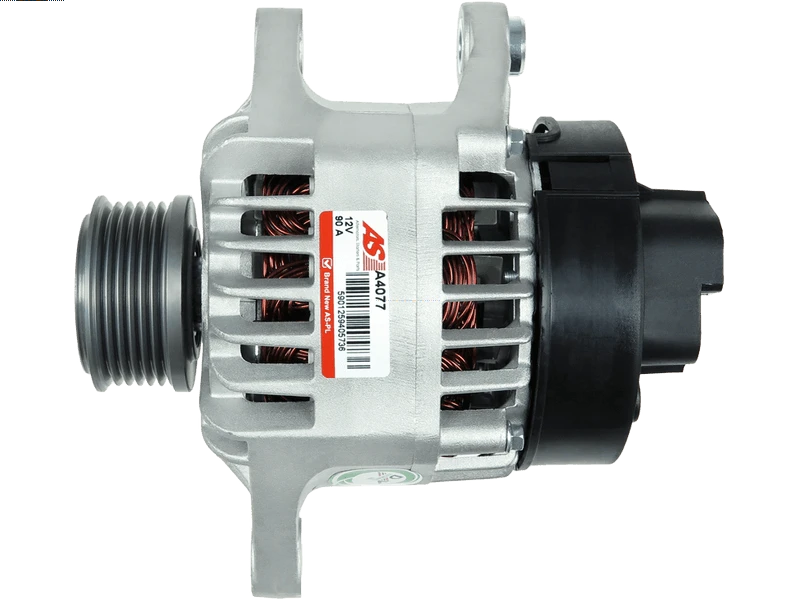

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 407.81 including GST

NZ$ 354.62 excluding GST



or four payments of $101.95 with
Afterpay Payment Offer Learn More

each
A4077
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

63321819
063321819010 063321826010 0986049610 101210-1500 105.505.090 113943 20104681BN 20104681OE 2030103 2030186 210263 210863 23104N 23104R 28-4546 301216RI 301216RID 301558RI 301558RIM 301697RI 301697RIM 437635 4497 46554408 46763533 46774430 51859052 56944 63321497 63321804 63321819 63321826 89213762 8EL011710-691 8EL738058-001 944390901680 944390903340 AEK2105 ALE1697 CA1697IR CAL30103 CAL30103AS CAL30103ES CAL30103GS CAL30103OS CAL30103RS CAL30186 CAL30186AS CAL30186ES CAL30186GS CAL30186OS CAL30186RS DA5316 DAN520 DENDAN520 DRA4206 LRA02105 MAN1110 MRA90168 RAA15317 SA522 UD804974(DENSO)A
Amp90 A
Bottom Mounting Foot Width (B)17 mm
Diameter (D.1)12 mm
Diameter (D.2)11 mm
Diameter (D.3)12 mm
Length (L.1)203 mm
Mount Inside Length or Pad Mount C-C (C)54.50 mm
OEM ProductNo
Plug CodePL_9104
Product LineStandard Line
Product TypeBrand new
Pulley Grooves6 qty
Pulley Outside Diameter (O.D.1)62 mm
Pulley to Mount Distance (A)44.50 mm
Pulley TypeClutch
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
FIAT Doblo 1.9 Diesel [223A6.000] 03.2001-
FIAT Doblo 1.9 Diesel Multijet [186A9.000] 10.2005-
FIAT Doblo 1.9 JTD [182B9.000] 10.2001-
FIAT Doblo 1.9 JTD [223A7.000] 10.2001-09.2005
FIAT Doblo 1.9 JTD [223B1.000] 10.2001-09.2005
FIAT Doblo 1.9 JTD [223B2.000] 10.2001-
FIAT Multipla 1.9 JTD [182B4.000] 04.1999-
FIAT Multipla 1.9 JTD [186A9.000] 04.2002-
FIAT Palio 1.9 Diesel [223A6.000] 03.2001-
FIAT Palio 1.9 Diesel [223A6.000] 09.2000-09.2001
FIAT Palio 1.9 JTD EL [188A2.000] 09.2001-
FIAT Punto 1.9 Diesel [188A3.000] 02.2000-
FIAT Punto 1.9 Diesel [188A3.000] 09.1999-
FIAT Punto 1.9 JTD [188A2.000] 09.1999-
FIAT Punto 1.9 JTD [188A7.000] 10.2001-
FIAT Siena 1.9 Diesel [223A6.000] 11.2000-
FIAT Stilo 1.9 Diesel [192B5.000] 09.2004-
FIAT Stilo 1.9 Diesel Multijet [192A8.000] 09.2005-
FIAT Stilo 1.9 Diesel Multijet [192A9.000] 09.2005-
FIAT Stilo 1.9 JTD [192A1.000] 01.2003-
FIAT Stilo 1.9 JTD [192B5.000] 09.2004-
FIAT Stilo 1.9 JTD [937A7.000] 01.2003-
FIAT Strada 1.9 Diesel [223A6.000] 11.2000-03.2003
FIAT Strada 1.9 JTD [188A2.000] 04.2003-
0046430531FIAT
063321819010MAGNETI MARELLI
063321826010MAGNETI MARELLI
0986049610BOSCH
101210-1500DENSO
105.505.090PSH
113943CARGO
20104681BNREAL
20104681OEREAL
2030186.0SANDO
2030186.1SANDO
210263ERA
210863ERA
23104NWAI / TRANSPO
23104RWAI / TRANSPO
28-4546ELSTOCK
301216RIKUHNER
301216RIDKUHNER
301558RIKUHNER
301558RIMKUHNER
301697RIKUHNER
301697RIMKUHNER
437635VALEO
4497CEVAM
46412681FIAT
46430530FIAT
46430531FIAT
46447117FIAT
46448434FIAT
46544329FIAT
46554408FIAT
46709068FIAT
46748343FIAT
46763532FIAT
46763533FIAT
46763534FIAT
46774430FIAT
46782212FIAT
46782213FIAT
51859052FIAT
51859053FIAT
56944EAI
60812713FIAT
60812814FIAT
60815953FIAT
60816045FIAT
60816047FIAT
60816557FIAT
63321497MAGNETI MARELLI
63321804MAGNETI MARELLI
63321819MAGNETI MARELLI
63321826MAGNETI MARELLI
71721136FIAT
71721172FIAT
71794807FIAT
89213762POWERMAX
8EL011710-691HELLA
8EL738058-001HELLA
944390901680MAGNETI MARELLI
944390903340MAGNETI MARELLI
A12DE0003A2SIDAT
A4077AS-PL
AEK2105AUTOELECTRO
ALE1697KRAUF
ALT122620SIOM
ALT2200SIOM
ALT2280SIOM
ALT321860SIOM
ALT9026ELECTROLOG
ALTL1293EFFE
ALTL2733EFFE
AX 1287STARLINE
CA1558IRHC PARTS
CA1697IRHC PARTS
CAL30186ASCASCO
CAL30186GSCASCO
DA5316DELCO
DAN520DENSO
DENDAN520WOODAUTO
DRA4206DELCO
F032113943CARGO
LRA02105LUCAS
LRA2105LUCAS
MAN1110MAGNETI MARELLI
MRA90168MAGNETI MARELLI
RAA15317DELCO
RNL63321805RNL
SA522SOVEREIGN
STA0074RBOVEZ
STX100029STARDAX
STX100029RSTARDAX
STX100127STARDAX
STX100127RSTARDAX
STX100287STARDAX
STX101441STARDAX
STX102027STARDAX
A4077
