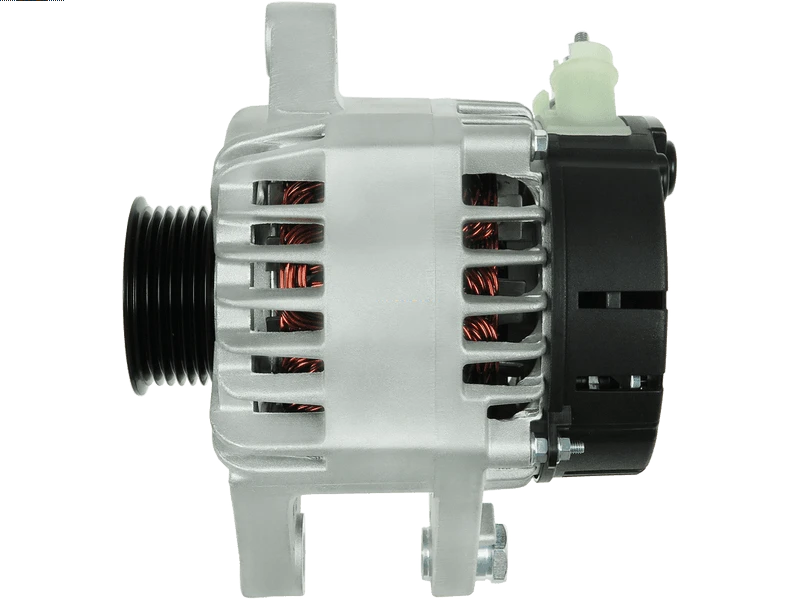

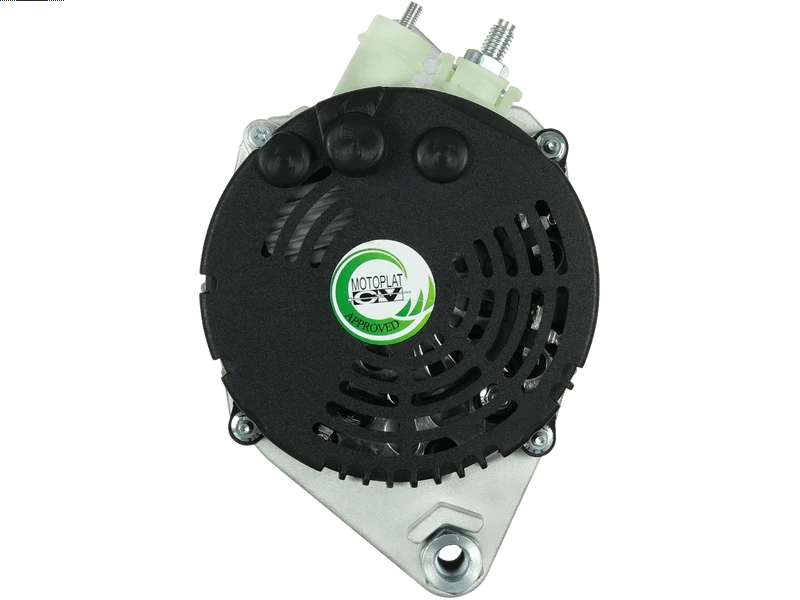

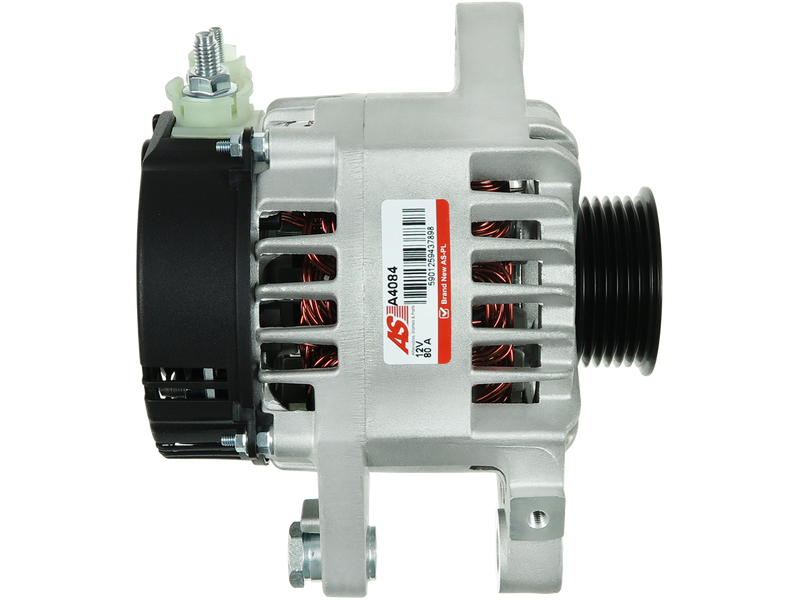

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 387.81 including GST
NZ$ 337.23 excluding GST
or four payments of $96.95
with
Learn More
each
A4084
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1022118741Associated Numbers
0986081000 102211-8740 102211-8741 11.1949M 114099 195.910.080 20132772BN 20132772OE 2040277 23966N 23966R 27060-0Q020 27060-0Q021 28-5623 301949RI 301949RID 5702J2 57043 5705KJ 89212953 9090663 9212953 A4084 AEK3010 ALT30476 CA1949IR CAL40277AS CAL40277GS DAN1036 DRA0216 LRA03010 RAA11327 SB213 SB270Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 29 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C1 1.0 | [CFA(384F)] | 06.2005- |
| PEUGEOT | 107 1.0 | [CFA(384F)] | 06.2005- |
| TOYOTA | Aygo 1.0 i | [1KR-FE] | 02.2005- |
Reference Information
| 0986081000 | BOSCH |
| 102211-8740 | DENSO |
| 102211-8741 | DENSO |
| 11.1949M | LAUBER |
| 114099 | CARGO |
| 195.910.080 | PSH |
| 195.910.080.050 | PSH |
| 195.910.080.460 | PSH |
| 20132772BN | REAL |
| 20132772OE | REAL |
| 2040277 | SANDO |
| 210830 | ERA |
| 23966N | WAI / TRANSPO |
| 23966R | WAI / TRANSPO |
| 27060-00020 | TOYOTA |
| 27060-0Q020 | TOYOTA |
| 27060-0Q021 | TOYOTA |
| 270600Q100 | TOYOTA |
| 27060-0Q100 | TOYOTA |
| 270600Q10000 | TOYOTA |
| 27060-0Q100-00 | TOYOTA |
| 270600Q130 | TOYOTA |
| 27060-0Q130 | TOYOTA |
| 28-5623 | ELSTOCK |
| 301949RI | KUHNER |
| 301949RID | KUHNER |
| 5702J2 | PEUGEOT |
| 5702L1 | PEUGEOT |
| 57043 | EAI |
| 5705CP | PEUGEOT |
| 5705KJ | PEUGEOT |
| 5705NP | PEUGEOT |
| 89212953 | POWERMAX |
| 9090663 | FRIESEN |
| 9212953 | POWERMAX |
| A12DE1140A2 | SIDAT |
| A4084 | AS-PL |
| AAL1164 | APEC |
| AEK3010 | AUTOELECTRO |
| ALT2106 | ROLLCO |
| ALT30476 | WOODAUTO |
| ALT6258 | ELECTROLOG |
| ALTL124 | 3EFFE |
| ANM32436X | ANDEL |
| CA1949IR | HC PARTS |
| CAL40277AS | CASCO |
| CAL40277GS | CASCO |
| DAN1036 | DENSO |
| DRA0216 | DELCO |
| F032114099 | CARGO |
| LRA03010 | LUCAS |
| LRA3010 | LUCAS |
| NPANAL1164 | NAPA |
| RAA11327 | DELCO |
| RNL102211-8740 | RNL |
| SB213 | SOVEREIGN |
| SB270 | SOVEREIGN |
| STA0442R | BOVEZ |
| STX100499 | STARDAX |
| STX100499R | STARDAX |
