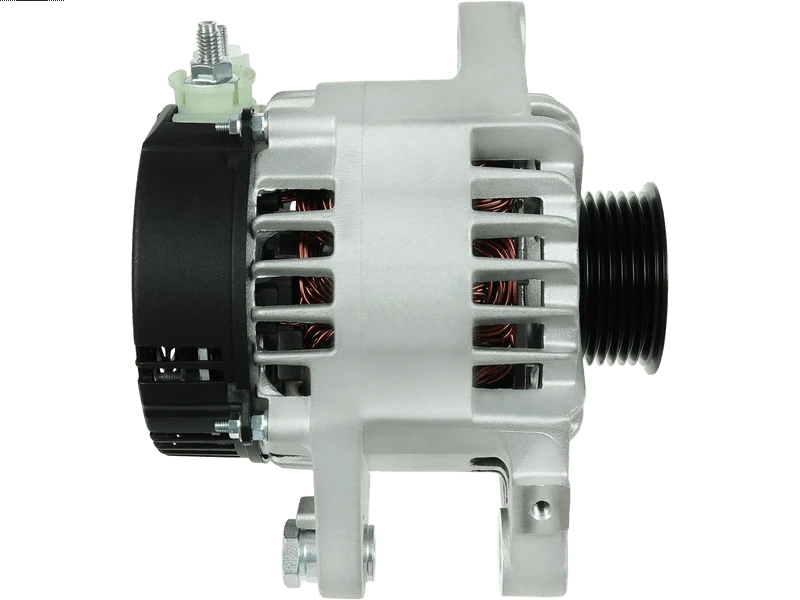

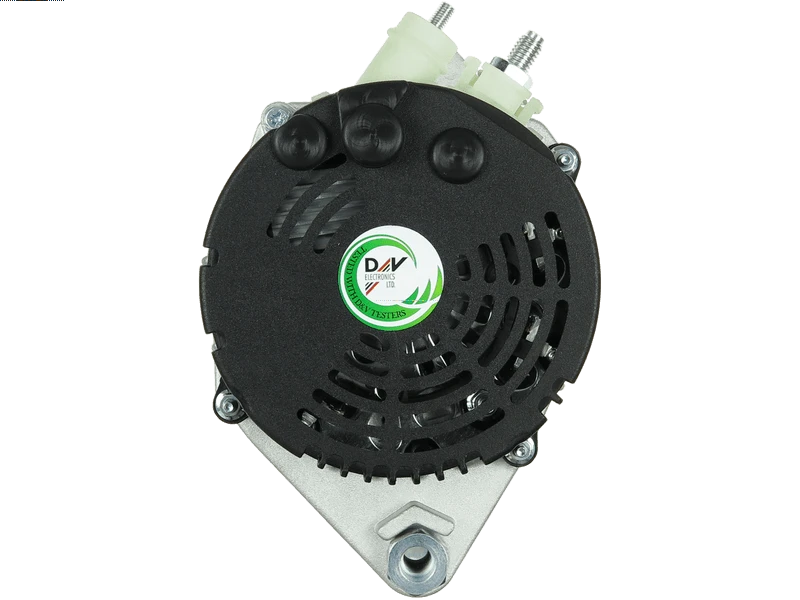

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 395.86 including GST
NZ$ 344.23 excluding GST
or four payments of $98.97
with
Learn More
each
A4085
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1022118730Associated Numbers
063377548010 0986049960 101210-1290 101210-1400 102211-8730 102211-8731 11.1978 114090 20132603BN 20132603OE 2040306 210841 23965RW 23966N 27060-0Q010 27060-0Q011 27060-0Q050 27060-0Q120 28-5684 301949RI 301949RID 301978RI 301978RID 32049960 5702J1 5702L0 57042 5705KH 5705NN 89213484 9049960 9213484 AEK3010 ALT30477 CA1978IR CAL40306 CAL40306AS CAL40306ES CAL40306GS CAL40306OS CAL40306RS DAN1035 DRA0248 EAA-221711 LRA03072 UD804920(DENSO)ASpecifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 20.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 29 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C1 1.0 | [CFA(384F)] | 06.2005- |
| PEUGEOT | 107 1.0 | [CFA(384F)] | 06.2005- |
| TOYOTA | Aygo 1.0 i | [1KR-FE] | 02.2005- |
Reference Information
| 063377548010 | MAGNETI MARELLI |
| 0986049960 | BOSCH |
| 101210-1290 | DENSO |
| 101210-1400 | DENSO |
| 102211-8730 | DENSO |
| 102211-8731 | DENSO |
| 11.1978 | LAUBER |
| 114090 | CARGO |
| 195.910.070.050 | PSH |
| 20132603BN | REAL |
| 20132603OE | REAL |
| 2040306 | SANDO |
| 210830 | ERA |
| 210841 | ERA |
| 23965RW | WAI / TRANSPO |
| 23966N | WAI / TRANSPO |
| 27060-0Q010 | TOYOTA |
| 27060-0Q011 | TOYOTA |
| 27060-0Q050 | TOYOTA |
| 270600Q05000 | TOYOTA |
| 27060-0Q050-00 | TOYOTA |
| 27060-0Q120 | TOYOTA |
| 28-5684 | ELSTOCK |
| 301949RI | KUHNER |
| 301949RID | KUHNER |
| 301978RI | KUHNER |
| 301978RID | KUHNER |
| 32049960 | HERTH+BUSS |
| 442202 | LOGISTIK |
| 5702J1 | PEUGEOT |
| 5702L0 | PEUGEOT |
| 57042 | EAI |
| 5705CR | PEUGEOT |
| 5705KH | PEUGEOT |
| 5705NN | PEUGEOT |
| 89213484 | POWERMAX |
| 9049960 | FRIESEN |
| 9213484 | POWERMAX |
| A12DE0494A2 | SIDAT |
| A4085 | AS-PL |
| AEK3010 | AUTOELECTRO |
| ALT2106 | ROLLCO |
| ALT30477 | WOODAUTO |
| ALT6351 | ELECTROLOG |
| ALTE134 | 3EFFE |
| ANM32468X | ANDEL |
| CA1978IR | HC PARTS |
| CAL40306 | CASCO |
| CAL40306AS | CASCO |
| CAL40306ES | CASCO |
| CAL40306GS | CASCO |
| CAL40306OS | CASCO |
| CAL40306RS | CASCO |
| DAN1035 | DENSO |
| DRA0248 | DELCO |
| F032114090 | CARGO |
| LRA03072 | LUCAS |
| LRA3072 | LUCAS |
| RNL102211-8730 | RNL |
| STA0314R | BOVEZ |
| STX100441 | STARDAX |
| UD804920(DENSO)A | AS-PL |
Video/Publications
