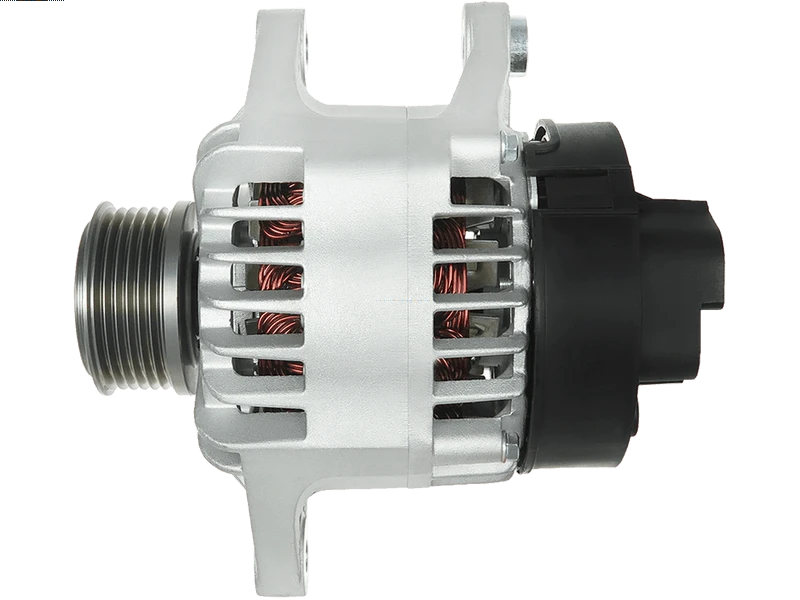

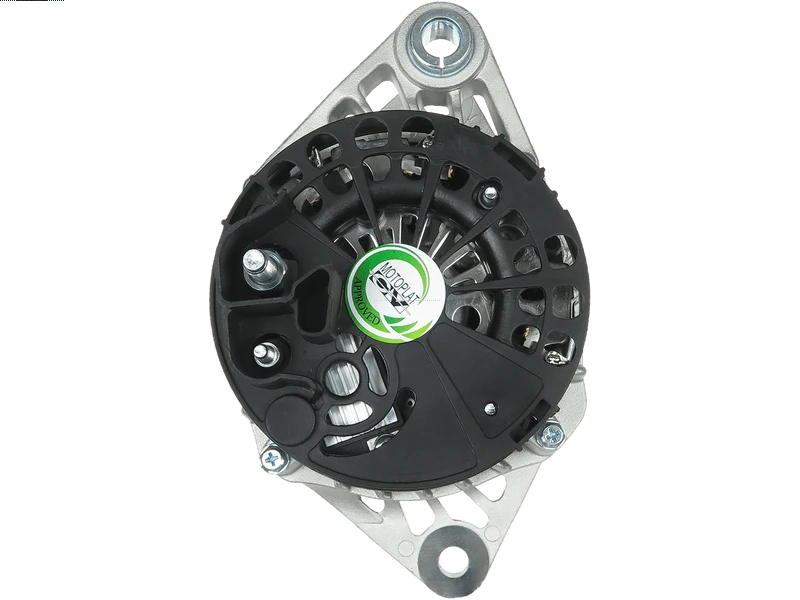

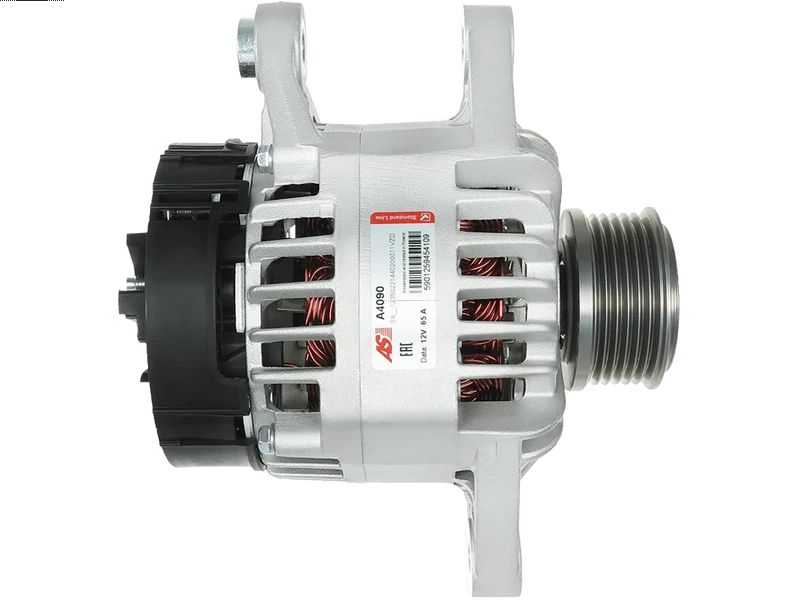

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 403.32 including GST
NZ$ 350.71 excluding GST
or four payments of $100.83
with
Learn More
each
A4090
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321833Associated Numbers
063321833010 0986049760 11.1696 11.1696M 113338 20104481BN 20104481OE 2030184 21244R 28-4828 301696RI 46782218 4755 505.544.065 56945 63321833 89213828 9049760 9213828 AEC1558 ALT12066 CA1696IR CAL30184AS CAL30184GS DRA1241 EAA-221402 GA321833-A LRA02331Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 202 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 61.50 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Clutch |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Doblo 1.9 Diesel | [223A6.000] | 03.2001- |
| FIAT | Palio 1.9 Diesel | [223A6.000] | 03.2001- |
| FIAT | Palio 1.9 JTD EL | [188A2.000] | 09.2001- |
| FIAT | Strada 1.9 JTD | [188A2.000] | 04.2003- |
Reference Information
| 063321833010 | MAGNETI MARELLI |
| 0986049760 | BOSCH |
| 11.1696 | LAUBER |
| 11.1696M | LAUBER |
| 113338 | CARGO |
| 20104481BN | REAL |
| 20104481OE | REAL |
| 2030184 | SANDO |
| 210686 | ERA |
| 21244R | WAI / TRANSPO |
| 28-4828 | ELSTOCK |
| 301696RI | KUHNER |
| 46782218 | FIAT |
| 4755 | CEVAM |
| 505.544.065 | PSH |
| 56945 | EAI |
| 63321833 | MAGNETI MARELLI |
| 71721110 | FIAT |
| 89213828 | POWERMAX |
| 9049760 | FRIESEN |
| 9213828 | POWERMAX |
| A4090 | AS-PL |
| AEC1558 | AUTOELECTRO |
| ALT12066 | WOODAUTO |
| ALT2290 | SIOM |
| ALT90024 | ELECTROLOG |
| ALTL769 | 3EFFE |
| CA1696IR | HC PARTS |
| CAL30184AS | CASCO |
| CAL30184GS | CASCO |
| DRA1241 | DELCO |
| F032113338 | CARGO |
| GA321833-A | GPARTS |
| LRA02331 | LUCAS |
| LRA2331 | LUCAS |
| STA0147R | BOVEZ |
| STX100165 | STARDAX |
| STX100165R | STARDAX |
Video/Publications
