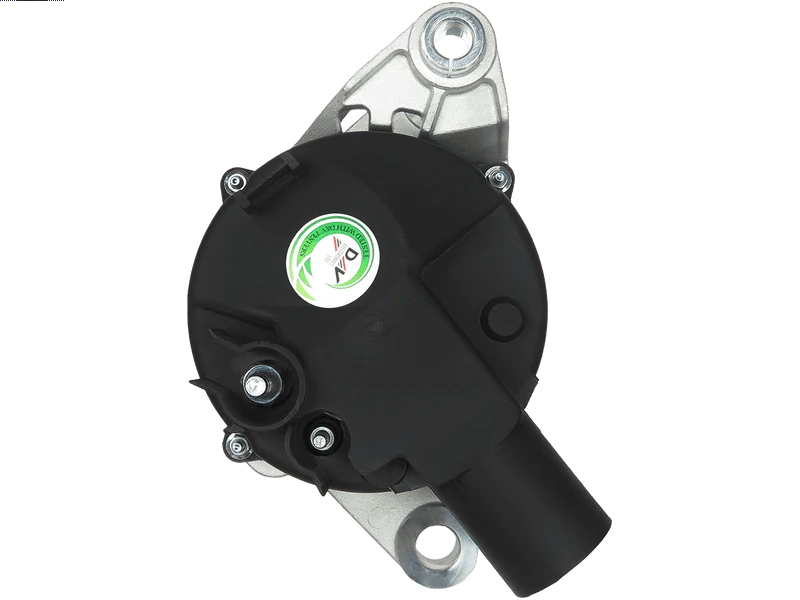

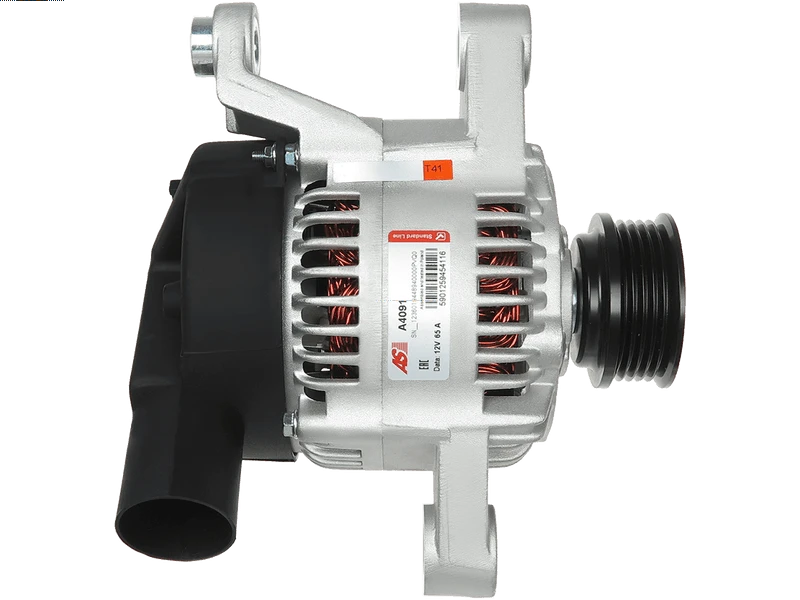

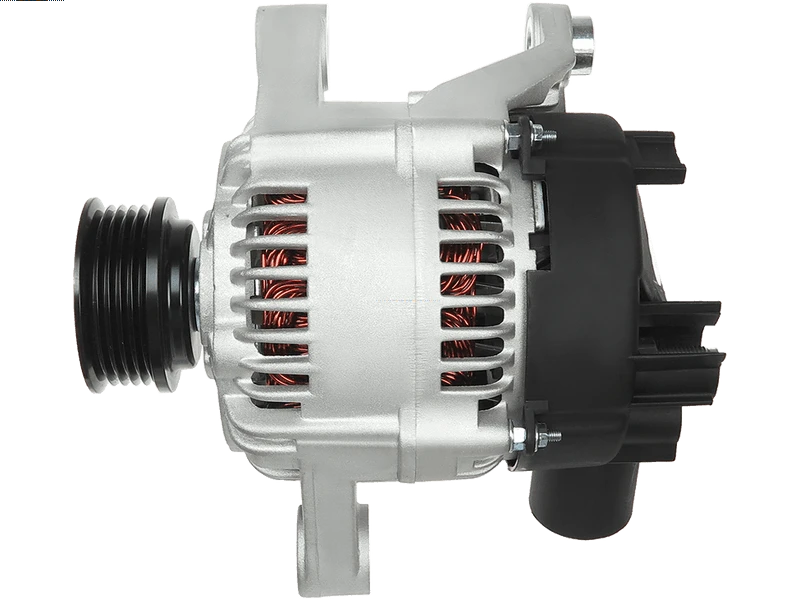

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 322.38 including GST
NZ$ 280.33 excluding GST
or four payments of $80.60
with
Learn More
each
A4091
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321625Associated Numbers
0986047751 11.1196 20104421BN 20104421OE 20110327 2030124 21327RW 21328N 301196RI 301196RIM 4620 46231698 46407648 46419321 46432411 56326 63321252 63321283 63321609 63321625 9090092 9213820 AEA3227 CA1196IR CAL30124AS CAL30124GS DRA3413 LRB00327 SA244Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 16.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 201 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 59 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Palio 1.4 | [178B2.000] | 04.1996- |
| FIAT | Palio 1.4 | [178B2.016] | 04.1996- |
| FIAT | Palio 1.4 EL | [178B2.000] | 07.1997-08.2001 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-09.2001 |
| FIAT | Punto 1.6 | [176A9.000] | 01.1994-04.1997 |
| FIAT | Siena 1.4 | [178B2.000] | 04.1996- |
| FIAT | Siena 1.4 | [178B2.016] | 04.1996- |
Reference Information
| 0986047751 | BOSCH |
| 11.1196 | LAUBER |
| 111689 | CARGO |
| 20104421BN | REAL |
| 20104421OE | REAL |
| 20110327 | PRESTOLITE |
| 2030124 | SANDO |
| 210132 | ERA |
| 21327RW | WAI / TRANSPO |
| 21328N | WAI / TRANSPO |
| 301196RI | KUHNER |
| 301196RIM | KUHNER |
| 4620 | CEVAM |
| 46231698 | FIAT |
| 46407648 | FIAT |
| 46419321 | FIAT |
| 46432411 | FIAT |
| 46432732 | FIAT |
| 56326 | EAI |
| 5895036 | FIAT |
| 63321252 | MAGNETI MARELLI |
| 63321283 | MAGNETI MARELLI |
| 63321609 | MAGNETI MARELLI |
| 63321625 | MAGNETI MARELLI |
| 7788683 | FIAT |
| 9090092 | FRIESEN |
| 9213820 | POWERMAX |
| AEA3227 | AUTOELECTRO |
| ALT2330 | SIOM |
| ALT90063 | ELECTROLOG |
| ALTS216 | 3EFFE |
| ANM35633X | ANDEL |
| CA1196IR | HC PARTS |
| CA1220IR | HC PARTS |
| CAL30124AS | CASCO |
| CAL30124GS | CASCO |
| DRA3413 | DELCO |
| F032111689 | CARGO |
| LRB00327 | LUCAS |
| LRB327 | LUCAS |
| SA244 | SOVEREIGN |
| STX100276 | STARDAX |
| STX100276R | STARDAX |
| STX100382 | STARDAX |
| STX100382R | STARDAX |
Video/Publications
A4091View your shopping basket or Browse other items in Alternators.
