A4093 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A4093
Price: 472.86 NZD
Availability: BackOrder

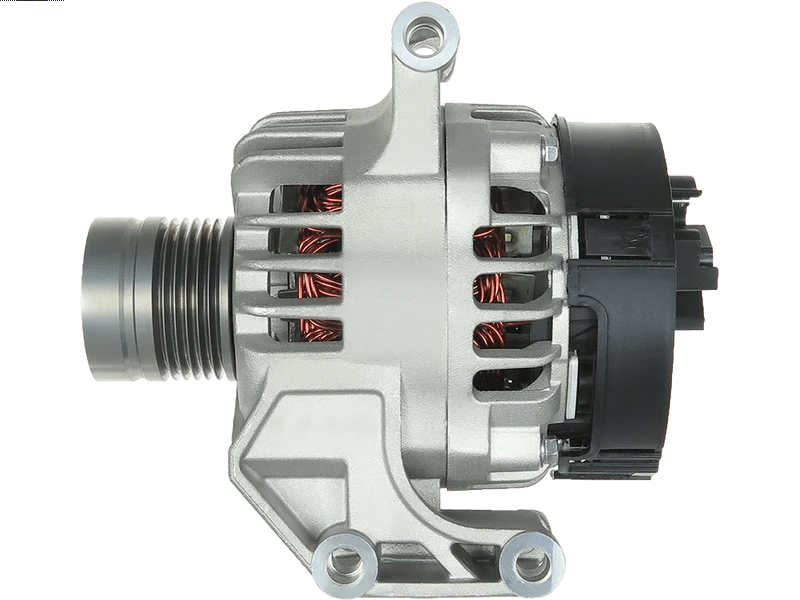

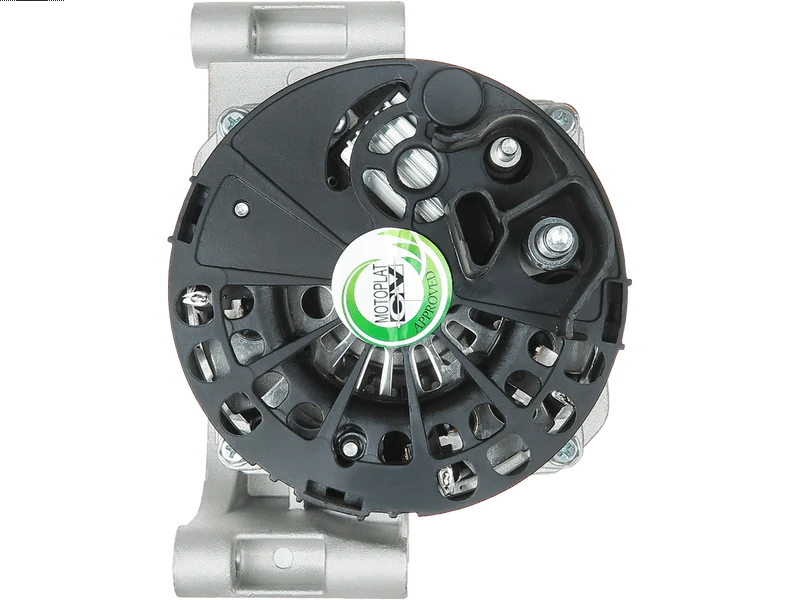

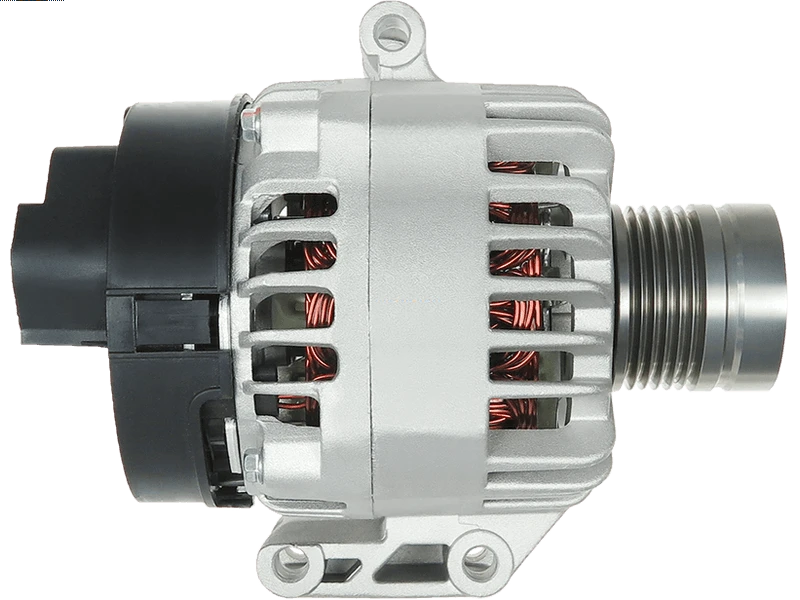

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MAGNETI MARELLI

Price:

NZ$ 472.86 including GST

NZ$ 411.18 excluding GST

or four payments of $118.22 with
Learn More

UOM:

each

Product Code:

A4093

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

63377020

063377020010 101210-1130 101210-1131 20104612OE 2030216 301862RIV 301934RI 301934RID 301934RIV 63377020 CAL30216GS DRA4244

Amp	90 A
Bottom Mounting Foot Width (B)	65 mm
Diameter (D.1)	9 mm
Diameter (D.2)	9 mm
Diameter (D.3)	9 mm
Length (L.1)	209 mm
Mount Inside Length or Pad Mount C-C (C)	56 mm
OEM Product	No
Pad mount thickness (E.1)	64 mm
Pad mount thickness (E.2)	64 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	54 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	Clutch
Unit Type	MAGNETI MARELLI
Voltage	12 V

Make	Model	Type	Year
ALFA ROMEO	MiTo 1.3 JTDM	[199 A3.000]	09.2008-
ALFA ROMEO	MiTo 1.3 JTDM	[199A3.000]	09.2008-
ALFA ROMEO	MiTo 1.3 JTDM	[199 B1.000]	10.2009-
ALFA ROMEO	MiTo 1.3 JTDM	[199B1.000]	10.2009-
FIAT	500 1.3 D Multijet	[169 A1.000]	10.2007-
FIAT	500 1.3 D Multijet	[169A1.000]	10.2007-
FIAT	Doblo 1.3 D Multijet	[223 A9.000]	10.2005-
FIAT	Doblo 1.3 D Multijet	[223A9.000]	10.2005-
FIAT	Doblo 1.3 JTD	[199 A2.000]	05.2005-
FIAT	Doblo 1.3 JTD	[199A2.000]	05.2005-
FIAT	Doblo 1.3 JTD 16V	[188 A9.000]	05.2004-
FIAT	Doblo 1.3 JTD 16V	[188A9.000]	05.2004-
FIAT	Doblo 1.3 JTD 16V Multijet	[223 A9.000]	08.2006-
FIAT	Doblo 1.3 JTD 16V Multijet	[223A9.000]	08.2006-
FIAT	Fiorino 1.3 D Multijet	[199 A2.000]	02.2008-
FIAT	Fiorino 1.3 D Multijet	[199A2.000]	02.2008-
FIAT	Fiorino 1.3 D Multijet	[199 A9.000]	02.2008-
FIAT	Fiorino 1.3 D Multijet	[199A9.000]	02.2008-
FIAT	Grande Punto 1.3 JTD	[199 A2.000]	10.2005-
FIAT	Grande Punto 1.3 JTD	[199A2.000]	10.2005-
FIAT	Grande Punto 1.3 JTD	[199 A3.000]	10.2005-
FIAT	Grande Punto 1.3 JTD	[199A3.000]	10.2005-
FIAT	Idea 1.3 D Multijet	[199 A3.000]	10.2005-
FIAT	Idea 1.3 D Multijet	[199A3.000]	10.2005-
FIAT	Idea 1.3 JTD	[188 A9.000]	01.2004-
FIAT	Idea 1.3 JTD	[188A9.000]	01.2004-
FIAT	Linea 1.3 D Multijet	[199 A3.000]	06.2007-
FIAT	Linea 1.3 D Multijet	[199A3.000]	06.2007-
FIAT	Panda 1.3 D Multijet	[169 A1.000]	06.2006-
FIAT	Panda 1.3 D Multijet	[169A1.000]	06.2006-
FIAT	Panda 1.3 D Multijet	[188 A9.000]	09.2003-
FIAT	Panda 1.3 D Multijet	[188A9.000]	09.2003-
FIAT	Panda 1.3 D Multijet 4x4	[188 A9.000]	10.2004-
FIAT	Panda 1.3 D Multijet 4x4	[188A9.000]	10.2004-
FIAT	Punto 1.3 JTD	[188 A9.000]	06.2003-10.2005
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-10.2005
FIAT	Punto 1.3 JTD 16V	[188 A9.000]	06.2003-
FIAT	Punto 1.3 JTD 16V	[188A9.000]	06.2003-
FIAT	Qubo 1.3 D Multijet	[199 A2.000]	09.2008-
FIAT	Qubo 1.3 D Multijet	[199A2.000]	09.2008-
FIAT	Strada 1.3 D Multijet	[223 A9.000]	05.2006-
FIAT	Strada 1.3 D Multijet	[223A9.000]	05.2006-
LANCIA	Musa 1.3 D Multijet	[188 A9.000]	10.2004-
LANCIA	Musa 1.3 D Multijet	[188A9.000]	10.2004-
LANCIA	Musa 1.3 D Multijet	[199 A3.000]	09.2006-
LANCIA	Musa 1.3 D Multijet	[199A3.000]	09.2006-
LANCIA	Ypsilon 1.3 D Multijet	[199 A2.000]	09.2006-
LANCIA	Ypsilon 1.3 D Multijet	[199A2.000]	09.2006-
LANCIA	Ypsilon 1.3 D Multijet	[199 A3.000]	09.2006-
LANCIA	Ypsilon 1.3 D Multijet	[199A3.000]	09.2006-
LANCIA	Ypsilon 1.3 JTD	[188 A9.000]	10.2003-
LANCIA	Ypsilon 1.3 JTD	[188A9.000]	10.2003-
OPEL	Agila 1.3 CDTi	[Z13DT]	08.2003-
OPEL	Astra H 1.3 CDTi	[Z13DTH]	08.2005-
OPEL	Astra H 1.3 CDTi GTC	[Z13DTH]	04.2005-
OPEL	Combo Tour 1.3 CDTi 16V	[Y13DT]	10.2004-
OPEL	Combo Tour 1.3 CDTi 16V	[Z13DT]	10.2004-
OPEL	Combo Tour 1.3 CDTi 16V	[Z13DTJ]	10.2005-
OPEL	Corsa 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Corsa C 1.3 CDTi	[Z13DT]	06.2003-
OPEL	Tigra TwinTop 1.3 CDTi	[Z13DT]	06.2004-
SUZUKI	Ignis II 1.3 DDiS	[Z13DT]	09.2003-
SUZUKI	Splash 1.3 CDTi	[D13A]	01.2008-
SUZUKI	Splash 1.3 CDTi	[Z13DTJ]	01.2008-
SUZUKI	Swift 1.3 DDiS	[D13A]	10.2010-
SUZUKI	Swift 1.3 DDiS	[Z13DT]	08.2005-
SUZUKI	Wagon R+ 1.3 DDiS	[Z13DT]	09.2003-
VAUXHALL	Agila Mk II 1.3 CDTi	[D13A]	01.2008-
VAUXHALL	Agila Mk II 1.3 CDTi	[Z13DTJ]	01.2008-
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	01.2004-05.2009
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	08.2004-03.2009
VAUXHALL	Combo Mk II 1.3 CDTi 16V	[Z13DTJ]	10.2005-
VAUXHALL	Meriva Mk I (A) 1.3 CDTi	[Z13DTJ]	01.2003-10.2009
VAUXHALL	Tigra TwinTop 1.3 CDTi	[Z13DT]	06.2004-
VAUXHALL	Zafira Mk II 1.6	[A16XER]	12.2007-
VAUXHALL	Zafira Mk II 1.6	[Z16XEP]	07.2005-
VAUXHALL	Zafira Mk II 1.6	[Z16XER]	12.2007-

063377020010	MAGNETI MARELLI
101210-1130	DENSO
101210-1131	DENSO
20104612OE	REAL
2030216	SANDO
210748	ERA
301862RIV	KUHNER
301934RI	KUHNER
301934RID	KUHNER
301934RIV	KUHNER
63377020	MAGNETI MARELLI
ALT171180	SIOM
CAL30216GS	CASCO
DRA4244	DELCO
STX100615	STARDAX
STX100615R	STARDAX

A4093
