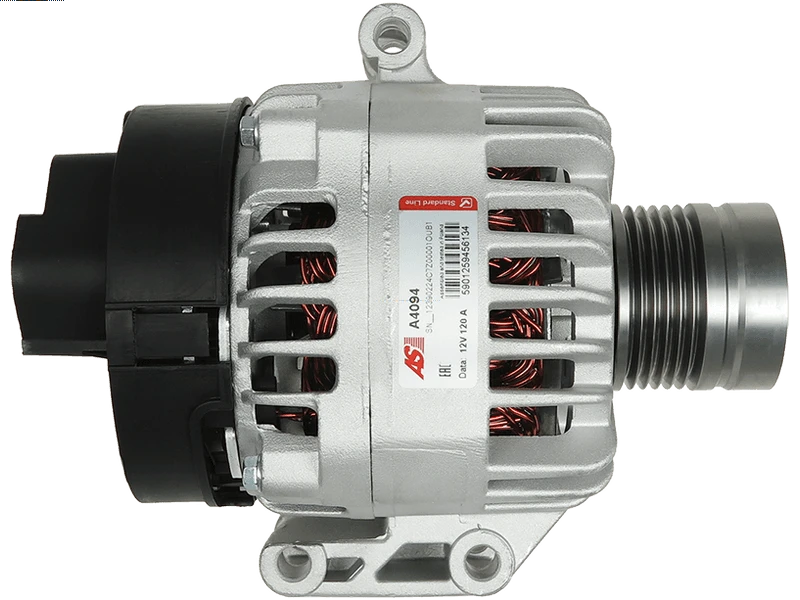

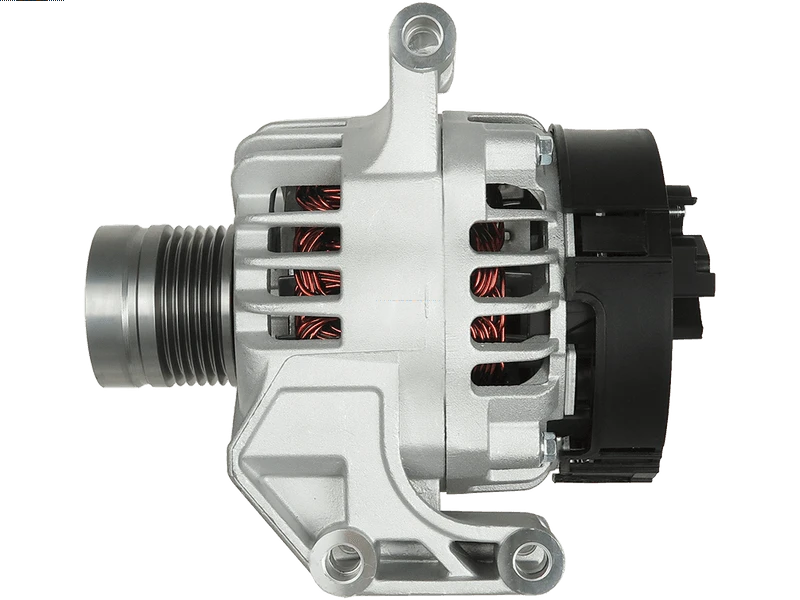

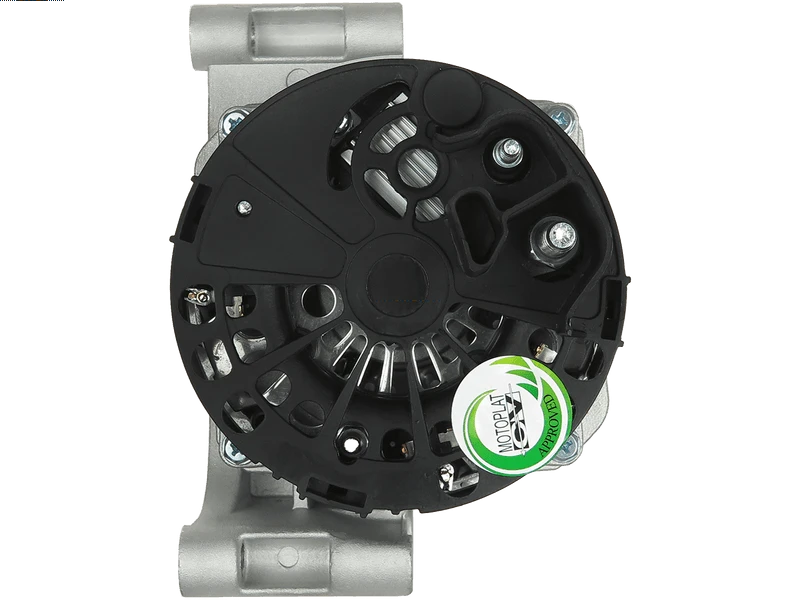

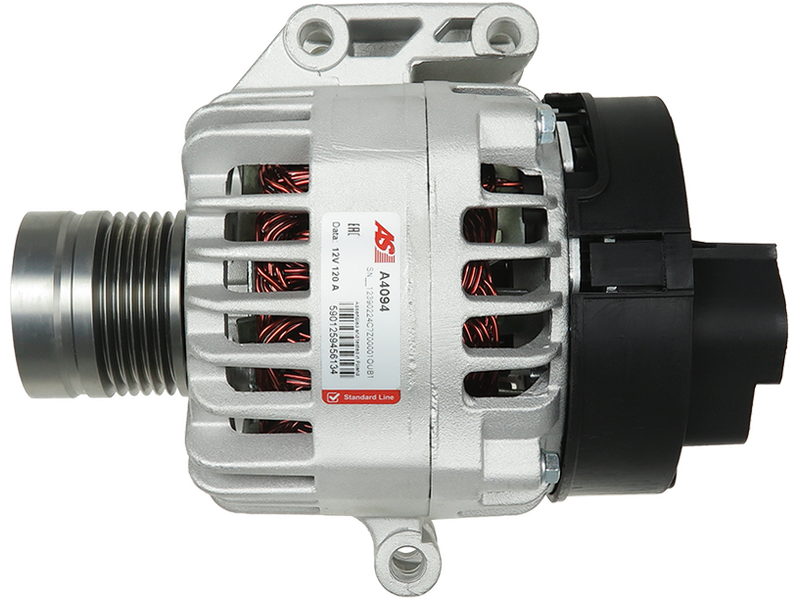

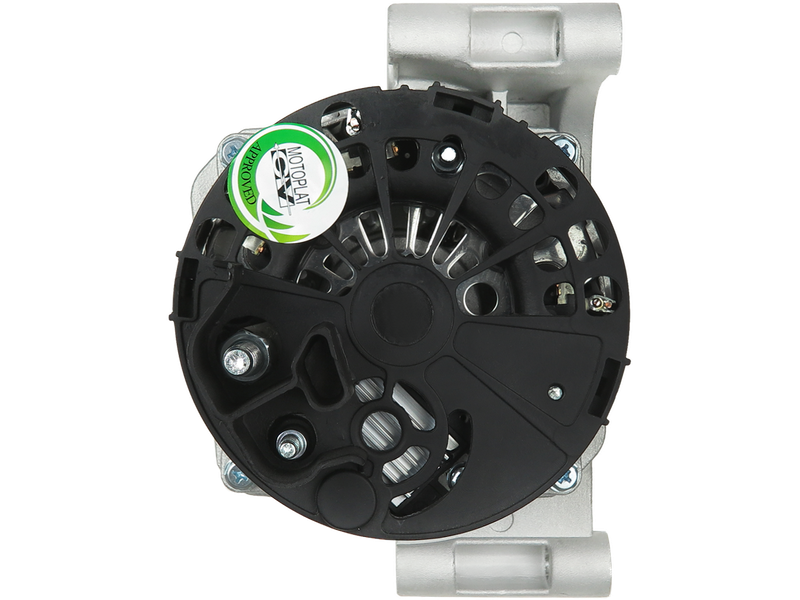

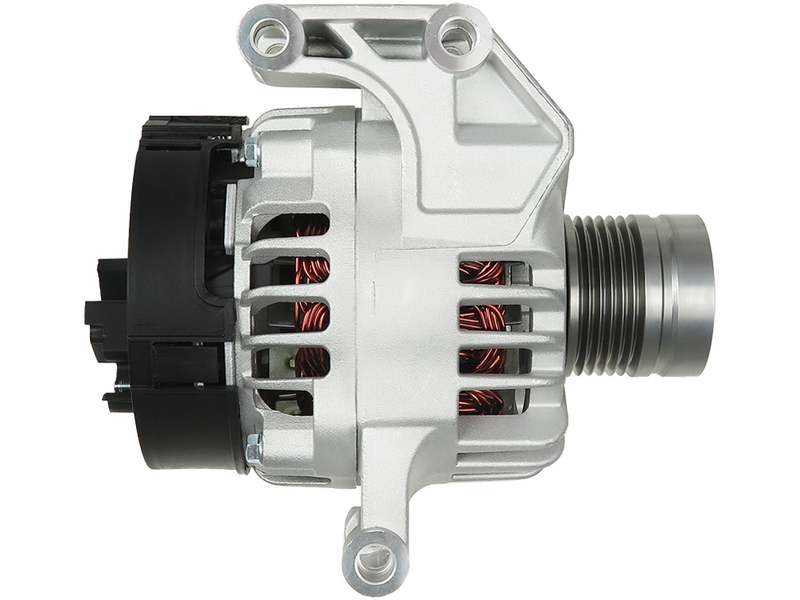

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 448.86 including GST
NZ$ 390.31 excluding GST
or four payments of $112.22
with
Learn More
each
A4094
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63377029Associated Numbers
063377029010 101210-1421 51855875 553434RI 553434RID 63377029Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 65 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 208 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Clutch |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Punto Evo 1.3 D Multijet | [199 B1.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199B1.000] | 10.2009-02.2012 |
Reference Information
| 063377029010 | MAGNETI MARELLI |
| 0986083250 | BOSCH |
| 101210-1132 | DENSO |
| 101210-1420 | DENSO |
| 101210-1421 | DENSO |
| 101210-1422 | DENSO |
| 115578 | CARGO |
| 13153237 | OPEL |
| 1606439580 | PEUGEOT |
| 20030220AV | ITAB AUTOMOTIVE |
| 20030220OV | ITAB AUTOMOTIVE |
| 20104712OE | REAL |
| 20201135 | AES |
| 2030217.1 | SANDO |
| 210753 | ERA |
| 210753A | ERA |
| 28-5680 | ELSTOCK |
| 3119409 | HENKEL PARTS |
| 3119410 | HENKEL PARTS |
| 32633770 | HERTH+BUSS |
| 439615 | VALEO |
| 440151 | VALEO |
| 441726 | LOGISTIK |
| 505.595.120.050 | PSH |
| 505.595.120.058 | PSH |
| 51787210 | FIAT |
| 51829382 | FIAT |
| 51829383 | FIAT |
| 51854103 | FIAT |
| 51854916 | FIAT |
| 51855875 | FIAT |
| 51944878 | FIAT |
| 52003519 | FIAT |
| 52003523 | FIAT |
| 52003524 | FIAT |
| 52092134 | FIAT |
| 553434RI | KUHNER |
| 553434RID | KUHNER |
| 6204273 | OPEL |
| 6204280 | OPEL |
| 63377029 | MAGNETI MARELLI |
| A133.265 | PSH |
| AG0229 | GHIBAUDI |
| ALE0029 | KRAUF |
| ALT30357 | WOODAUTO |
| ALT322170 | SIOM |
| ALT6715 | ELECTROLOG |
| ALTF075 | 3EFFE |
| ALV3327 | KRAUF |
| BREF0320986083250 | CARWOOD GROUP |
| CAL30217GS | CASCO |
| DAN1141 | DENSO |
| F032115578 | CARGO |
| IR5731 | PROTECH |
| LEA0804 | LE PART |
| MAN7020 | MAGNETI MARELLI |
| MAN7029 | MAGNETI MARELLI |
| RNL63377020 | RNL |
| RNL63377029 | RNL |
| TG9S027 | VALEO |
| TG9S040 | VALEO |
| WG1916793 | WILMINK GROUP |
| WOOALT30357 | WOODAUTO |
Video/Publications
