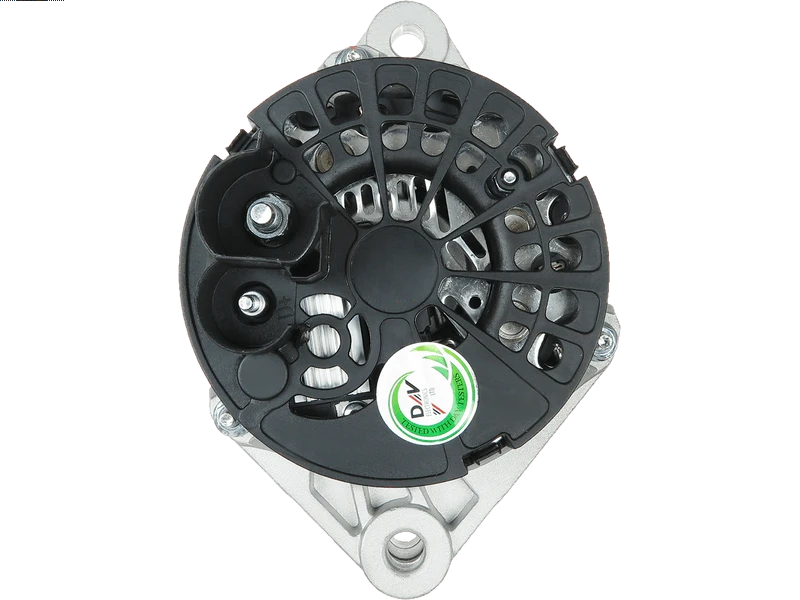

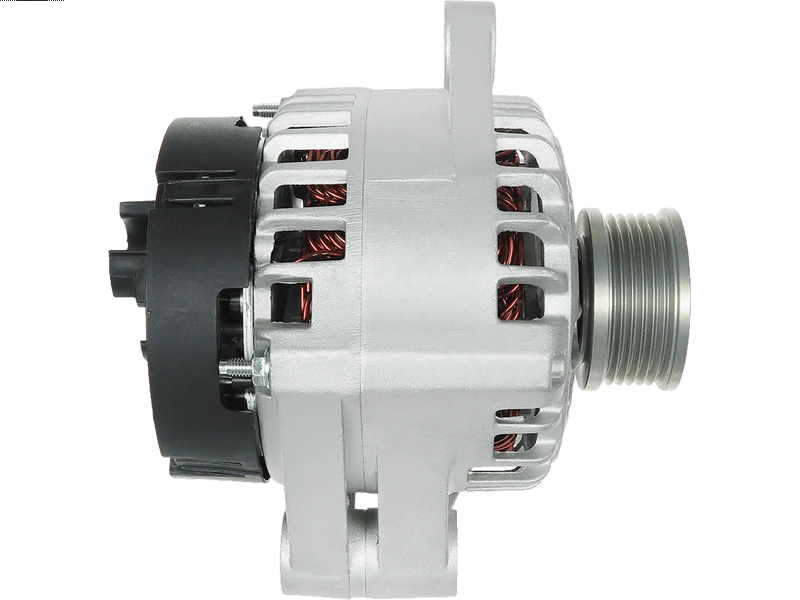

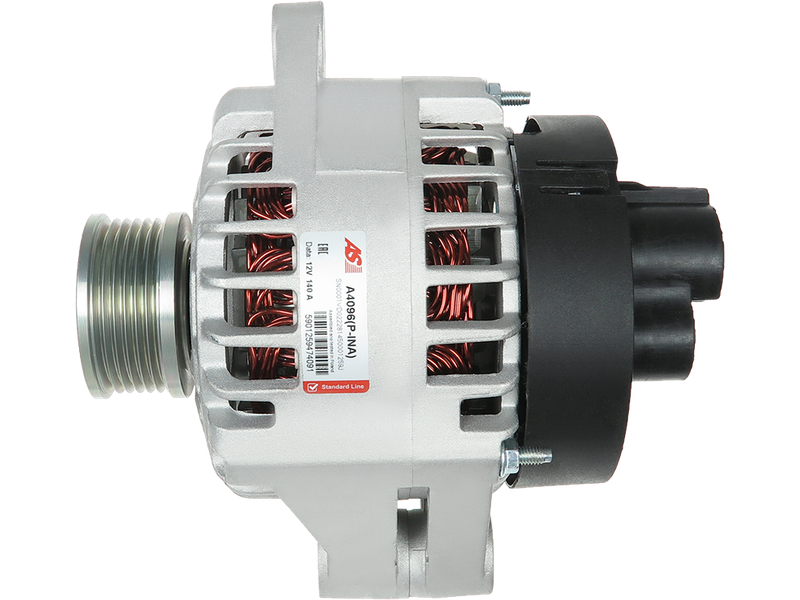

Brand new AS-PL Alternator with INA freewheel pulley
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 488.96 including GST
NZ$ 425.18 excluding GST
or four payments of $122.24
with
Learn More
each
A4096(P-INA)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63377005Associated Numbers
101210-0990 102211-8270 28-4926 301995RI 301995RID 301995RIM 301995RIR 31400-79J00 32377491 63321940 63377005 71746673 73501591 AEK2808 ALT12116 CA1995IR DAN1062 DRA0036 DRA0036X EAA-222255 GA377005-A GA377005M-R LRA02808 23809RSpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 61 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 12 mm |
| Length (L.1) | 205 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 61 mm |
| Pulley to Mount Distance (A) | 112 mm |
| Pulley Type | Clutch |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 159 1.9 JTDM 16V | [937A8000] | 01.2005-12.2008 |
| ALFA ROMEO | 159 1.9 JTDM 16V | [937A8000] | 01.2006-12.2008 |
| ALFA ROMEO | 159 1.9 JTDM 16V | [939A2000] | 01.2005-12.2008 |
| ALFA ROMEO | 159 1.9 JTDM 16V | [939A2000] | 01.2006-12.2008 |
| ALFA ROMEO | 159 1.9 JTDM 8V | [937A7000] | 01.2005-12.2008 |
| ALFA ROMEO | 159 1.9 JTDM 8V | [939A1000] | 01.2005-12.2008 |
| FIAT | Bravo 1.6 D Multijet | [198A2.000] | 01.2007- |
| FIAT | Bravo 1.6 D Multijet | [198A3.000] | 01.2007- |
| FIAT | Bravo 1.6 D Multijet | [198A4.000] | 01.2007- |
| FIAT | Grande Punto 1.6 D Multijet | [199A5.000] | 01.2005-12.2009 |
| FIAT | Grande Punto 1.6 D Multijet | [939A1.000] | 01.2005-12.2009 |
| FIAT | Sedici 1.9 D Multijet | [D19AA] | 01.2006- |
| FIAT | Stilo 1.9 D Multijet | [937A5.000] | 01.2005- |
| LANCIA | Delta 1.6 D Multijet | [198A2.000] | 01.2008- |
| LANCIA | Delta 1.9 D Multijet | [844A1.000] | 01.2008- |
| LANCIA | Delta 2.0 D Multijet | [198A5.000] | 01.2008- |
| LANCIA | Delta 2.0 D Multijet | [198A8.000] | 01.2008- |
| LANCIA | Delta 2.0 D Multijet | [844A2.000] | 01.2008- |
| OPEL | Astra H 1.9 CDTi | [16V] | 01.2004-12.2010 |
| OPEL | Astra H 1.9 CDTi | [Z19DTH] | 01.2004-12.2010 |
| OPEL | Astra H 1.9 CDTi | [Z19DTJ] | 01.2004-12.2010 |
| OPEL | Signum 1.9 CDTi | [8V] | 01.2004-12.2008 |
| OPEL | Signum 1.9 CDTi | [Z19DT] | 01.2004-12.2008 |
| OPEL | Vectra C 1.9 CDTi | [8V] | 01.2004-12.2008 |
| OPEL | Vectra C 1.9 CDTi | [Z19DTL] | 01.2004-12.2008 |
| OPEL | Zafira B 1.9 CDTi | [8V] | 01.2005- |
| OPEL | Zafira B 1.9 CDTi | [Z19DT] | 01.2005- |
| OPEL | Zafira B 1.9 CDTi | [Z19DTL] | 01.2005- |
| SUZUKI | SX4 1.9 DDiS | [D19AA] | 01.2006- |
| SUZUKI | SX4 1.9 DDiS 4X4 | [D19AA] | 01.2006- |
| VAUXHALL | Astra H 1.9 CDTi | [16V] | 01.2004- |
| VAUXHALL | Astra H 1.9 CDTi | [16V] | 01.2005- |
| VAUXHALL | Astra H 1.9 CDTi | [Z19DTH] | 01.2004- |
| VAUXHALL | Astra H 1.9 CDTi | [Z19DTH] | 01.2005- |
| VAUXHALL | Astra H 1.9 CDTi | [Z19DTJ] | 01.2004- |
| VAUXHALL | Astra H 1.9 CDTi | [Z19DTJ] | 01.2005- |
| VAUXHALL | Signum 1.9 CDTi | [8V] | 01.2004-12.2008 |
| VAUXHALL | Signum 1.9 CDTi | [Z19DT] | 01.2004-12.2008 |
| VAUXHALL | Signum 1.9 CDTi | [Z19DTL] | 01.2004-12.2008 |
| VAUXHALL | Vectra C 1.9 CDTi | [16V] | 01.2004-12.2008 |
| VAUXHALL | Vectra C 1.9 CDTi | [Z19DT] | 01.2004-12.2008 |
| VAUXHALL | Vectra C 1.9 CDTi | [Z19DTH] | 01.2004-12.2008 |
| VAUXHALL | Vectra C 1.9 CDTi | [Z19DTL] | 01.2004-12.2008 |
| VAUXHALL | Zafira B 1.9 CDTi | [8V] | 01.2005- |
| VAUXHALL | Zafira B 1.9 CDTi | [Z19DTL] | 01.2005- |
Reference Information
| 101210-0990 | DENSO |
| 102211-8270 | DENSO |
| 113996 | CARGO |
| 20104071BN | REAL |
| 20104071OE | REAL |
| 2030170.0 | SANDO |
| 2030170.1 | SANDO |
| 210665 | ERA |
| 23809R | WAI / TRANSPO |
| 28-4926 | ELSTOCK |
| 301995RI | KUHNER |
| 301995RID | KUHNER |
| 301995RIM | KUHNER |
| 301995RIR | KUHNER |
| 31400-79J0 | SUZUKI |
| 31400-79J00 | SUZUKI |
| 3140079J00LCP | SUZUKI |
| 63321940 | MAGNETI MARELLI |
| 63377005 | MAGNETI MARELLI |
| 71746673 | FIAT |
| 71769230 | FIAT |
| 71789538 | FIAT |
| 71789539 | FIAT |
| 71792056 | FIAT |
| 73501591 | FIAT |
| A12DE0009A2 | SIDAT |
| AEK2808 | AUTOELECTRO |
| ALT12116 | WOODAUTO |
| ALT321640 | SIOM |
| ALT321700 | SIOM |
| ALT321700A | SIOM |
| ALT6243 | ELECTROLOG |
| ALT9059 | ELECTROLOG |
| ALTL695 | 3EFFE |
| CA1995IR | HC PARTS |
| CAL30170AS | CASCO |
| CAL30170GS | CASCO |
| CGB-10036 | AINDE |
| DAN1062 | DENSO |
| DRA0036 | DELCO |
| DRA0036X | DELCO |
| F032113996 | CARGO |
| GA377005-A | GPARTS |
| GA377005M-R | GPARTS |
| LRA02808 | LUCAS |
| LRA2808 | LUCAS |
| STX100145 | STARDAX |
| STX100145R | STARDAX |
Video/Publications
