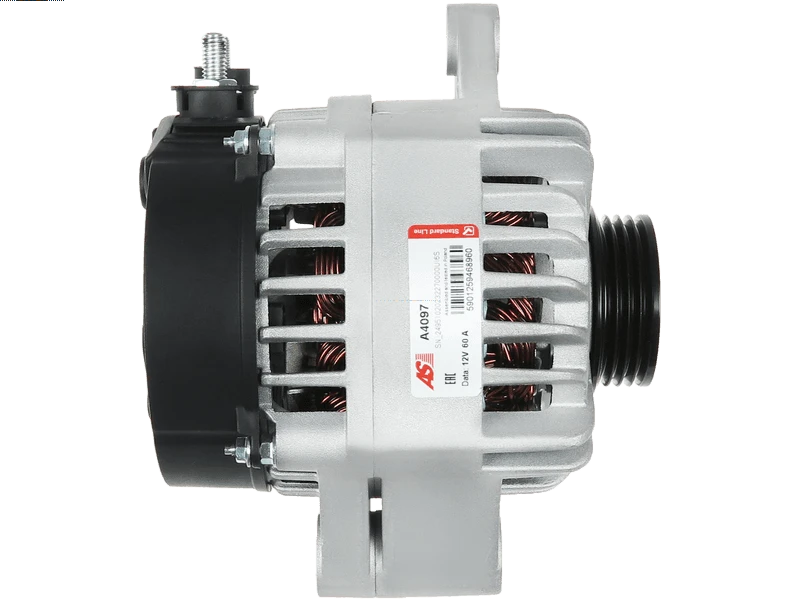

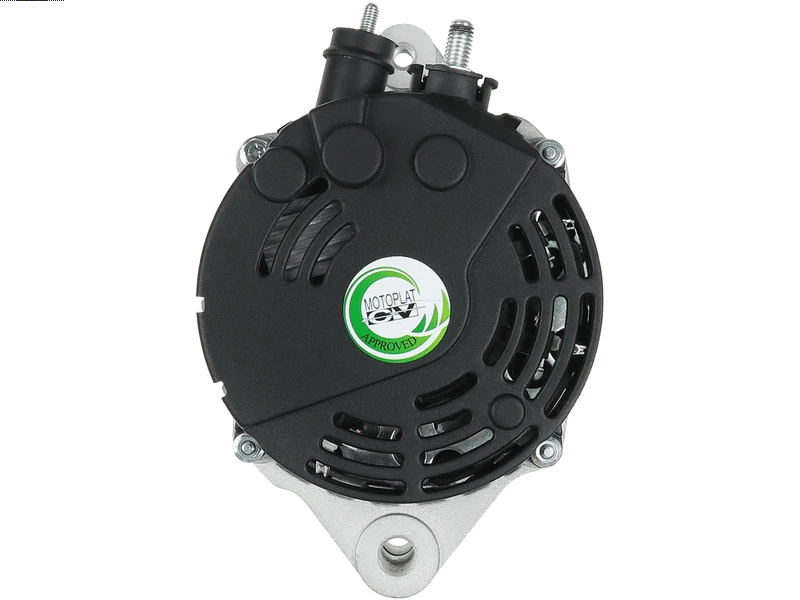

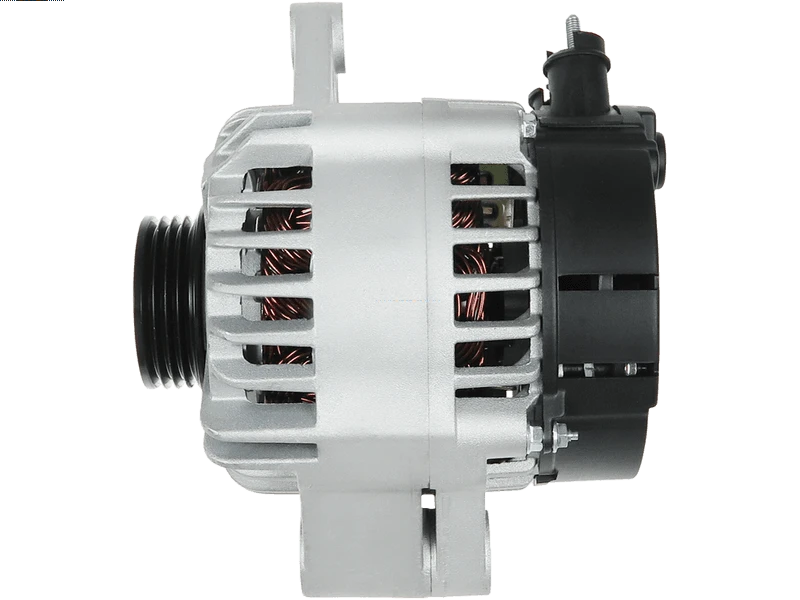

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 409.20 including GST
NZ$ 355.83 excluding GST
or four payments of $102.30
with
Learn More
each
A4097
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321832Associated Numbers
20104791BN 20104791RC 2030197 28-4827 31400-80E10 31400-83E10 553084RI 63321774 63321832 AEK2330 CAL30197AS CAL30197RS LRA02330 SA925Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 165 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Swift 1.0 | [G10A] | 01.1996- |
| SUZUKI | Swift 1.3 | [G13BB] | 01.2001- |
Reference Information
| 114894 | CARGO |
| 28-4827 | ELSTOCK |
| 31400-80E10 | SUZUKI |
| 31400-83E10 | SUZUKI |
| 553084RI | KUHNER |
| 5530952 | MEAT & DORIA |
| 63321774 | MAGNETI MARELLI |
| 63321832 | MAGNETI MARELLI |
| A12MA0712A2 | SIDAT |
| A4097 | AS-PL |
| AEK2330 | AUTOELECTRO |
| ALT9057 | ELECTROLOG |
| ALTS508 | 3EFFE |
| F032114894 | CARGO |
| LRA02330 | LUCAS |
| LRA2330 | LUCAS |
| SA925 | SOVEREIGN |
| STX110209 | STARDAX |
| STX110209R | STARDAX |
