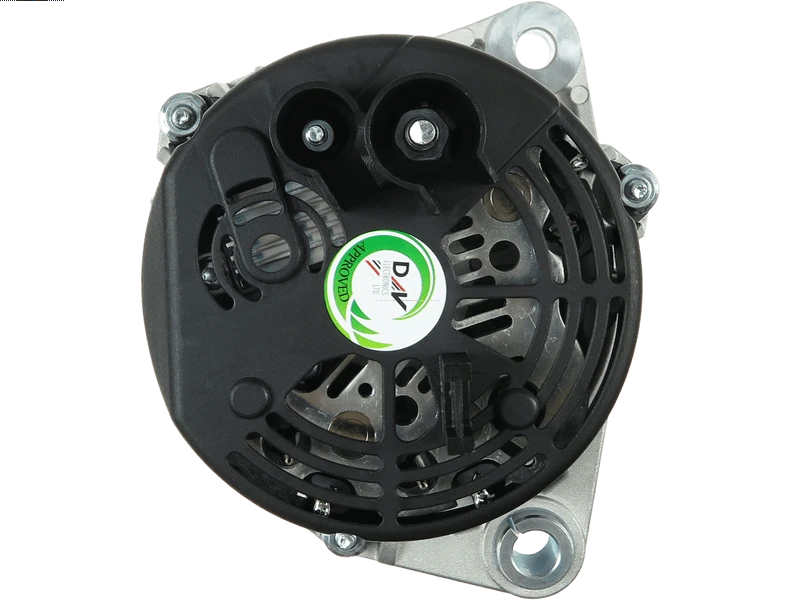

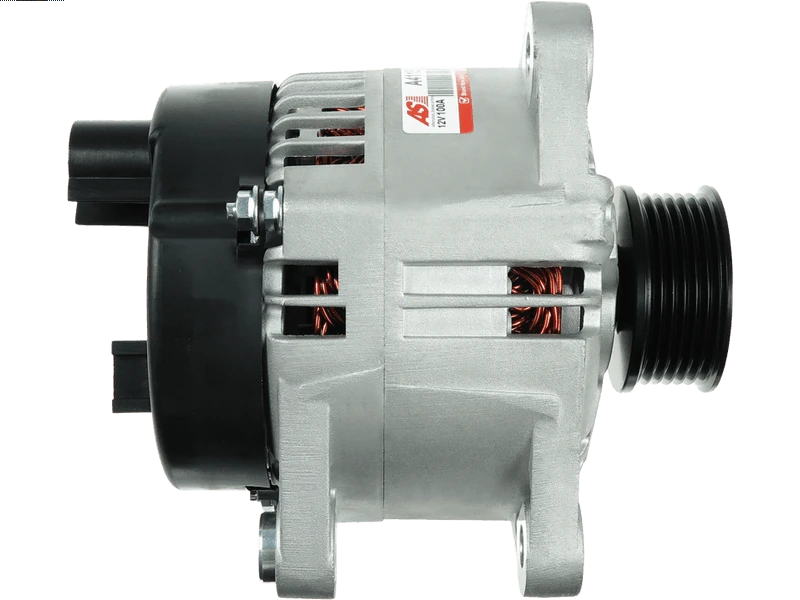

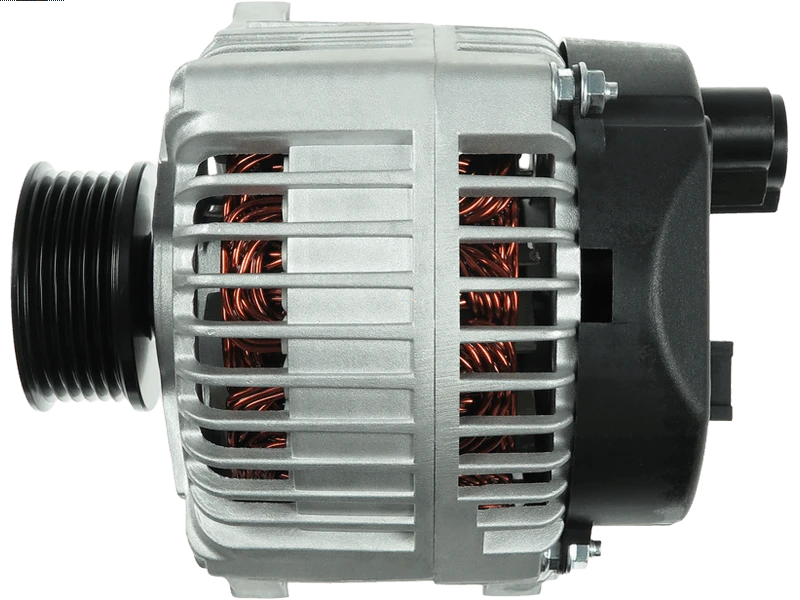

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 405.54 including GST
NZ$ 352.64 excluding GST
or four payments of $101.39
with
Learn More
each
A4115
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321398Associated Numbers
0986047771 20104741RC 2030147 28-2727 301218RIR 301222RI 301451RIR 437785 4621 46404424 46434360 505.534.085 505.534.100 505.534.120 63320279 63321289 63321389 63321398 944390901310 A-4002 AEC1451 CAL30147 CAL30147AS CAL30147ES CAL30147GS CAL30147OS CAL30147RS DAN518 DENDAN518 EAA-252362 LRA01585 SA258 SA879 UD12211ASpecifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Bravo 2.0 HGT 20V | [182A1.000 | 10.1995-07.1998 |
| FIAT | Coupe 2.0 20V Turbo | [175A3.000] | 08.1996-08.2000 |
| FIAT | Marea 2.0 20V | [182A1.000 | 01.1996-12.1999 |
| FIAT | Marea 2.0 20V | [182B7.] | 01.1996-12.1999 |
| FIAT | Marea 2.0 20V | [185A8.] | 01.1996-12.1999 |
Reference Information
| 0986047771 | BOSCH |
| 20104741RC | REAL |
| 2030147 | SANDO |
| 210742 | ERA |
| 28-2727 | ELSTOCK |
| 301218RIR | KUHNER |
| 301222RI | KUHNER |
| 301451RIR | KUHNER |
| 437785 | VALEO |
| 4621 | CEVAM |
| 46404424 | FIAT |
| 46434360 | FIAT |
| 505.534.085 | PSH |
| 505.534.100 | PSH |
| 505.534.100.050 | PSH |
| 505.534.120 | PSH |
| 505.534.120.050 | PSH |
| 63320279 | MAGNETI MARELLI |
| 63321289 | MAGNETI MARELLI |
| 63321389 | MAGNETI MARELLI |
| 63321398 | MAGNETI MARELLI |
| 63321426 | MAGNETI MARELLI |
| 944390901310 | MAGNETI MARELLI |
| A133.064 | PSH |
| A133.402 | PSH |
| A-4002 | DIXIE |
| AEC1451 | AUTOELECTRO |
| ALT2540 | SIOM |
| ALT321470 | SIOM |
| ALT321480 | SIOM |
| ALT90062 | ELECTROLOG |
| ALTS995 | 3EFFE |
| CAL30147 | CASCO |
| CAL30147AS | CASCO |
| CAL30147ES | CASCO |
| CAL30147GS | CASCO |
| CAL30147OS | CASCO |
| CAL30147RS | CASCO |
| DAN518 | DENSO |
| DENDAN518 | WOODAUTO |
| LRA01585 | LUCAS |
| LRA1585 | LUCAS |
| SA258 | SOVEREIGN |
| SA879 | SOVEREIGN |
| STX110302 | STARDAX |
| STX110302R | STARDAX |
| UD12211A | AS-PL |
Video/Publications
