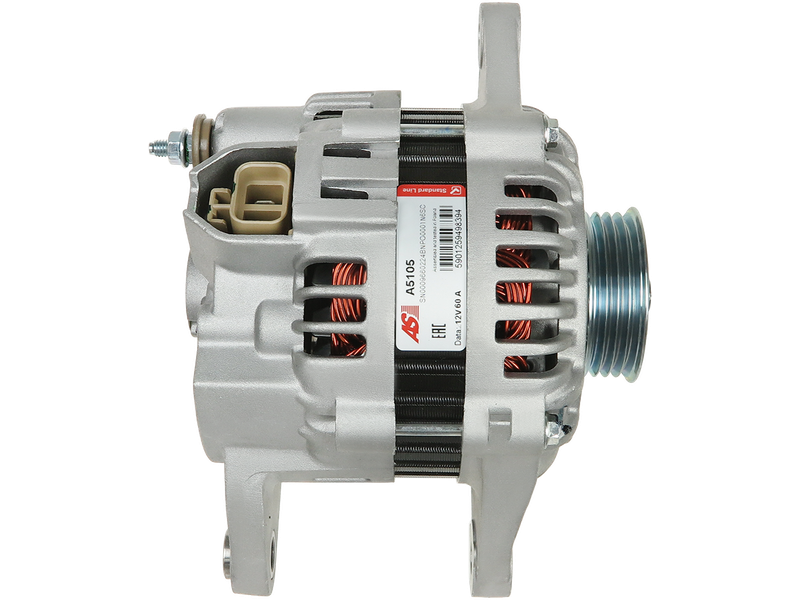

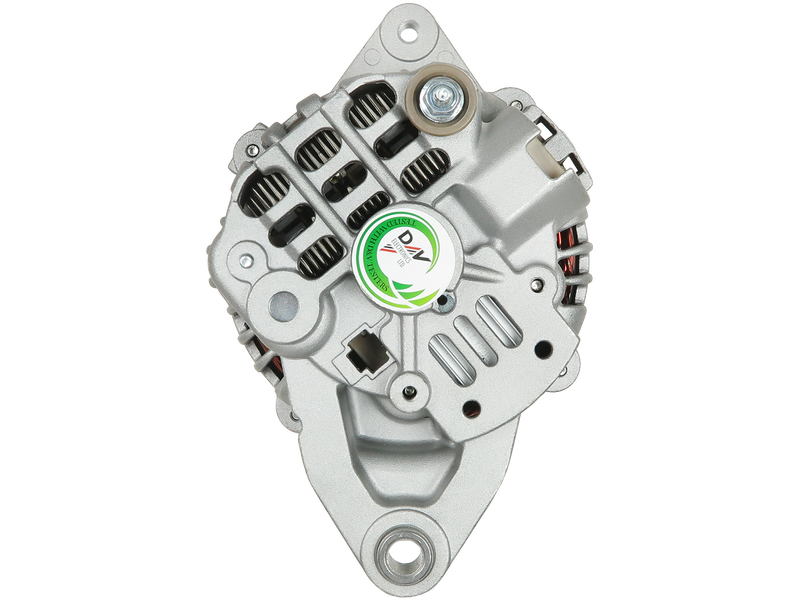

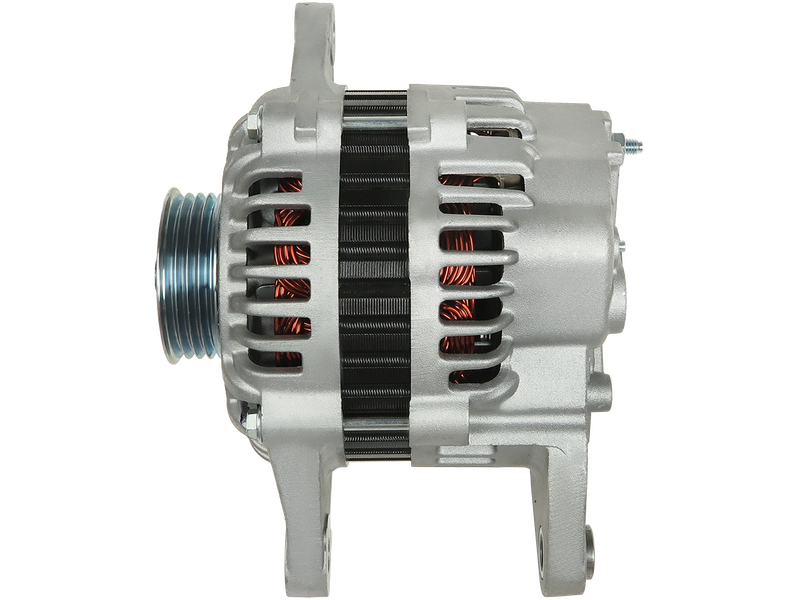

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 309.99 including GST
NZ$ 269.56 excluding GST
or four payments of $77.50
with
Learn More
each
A5105
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0986037651 0K24018300 111308 13574N 13574R 145.513.065 2020135 28-4620 40694RI 56464 8EL730077-001 90-31-7011 9051330 9182 9212800 A-8294 A005T03391 A005T03391A A5T03391 A5T03391A AB160044 AB160063 AB170066 ALM0694 ALT32066 B301-18-300 B3C7-18-300 B3C7-18-300B B3C7-18-300C B3C718300 B3D118300 CAL20135 CAL20135AS CAL20135ES CAL20135GS CAL20135OS CAL20135RS F4BZ-10346-A F4BZ-10346-ARM JA694IR KK370-18300 KK37018300 KK37018300B LR165-709 LR165-709B LRA02166 MB3C7-18-300B OK24018300 UD30003ASpecifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | M10x1.25 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Aspire 1.3 | 01.1994-01.1997 | |
| FORD | Aspire 1.3 SE | 01.1994-01.1995 | |
| KIA | Avella 1.3 | [B3] | 01.1995-12.2001 |
| KIA | Avella 1.5 | 01.1997-12.2001 | |
| KIA | Sephia 1.8i 16V | [OK24N] | 01.1995-12.1997 |
| KIA | Sephia 1.8i 16V | [OK26Y] | 01.1995-12.1997 |
| MAZDA | 121 1.1 | [B1] | 11.1990-10.1993 |
| MAZDA | 121 1.3 16V | [B3] | 11.1990-03.1996 |
Reference Information
| 0986037651 | BOSCH |
| 0K24018300 | HYUNDAI / KIA |
| 111308 | CARGO |
| 13574N | WAI / TRANSPO |
| 13574R | WAI / TRANSPO |
| 145.513.065 | PSH |
| 145.513.065.460 | PSH |
| 145.513.065.608 | PSH |
| 2020135 | SANDO |
| 2310005P13 | NISSAN |
| 28-4620 | ELSTOCK |
| 40694RI | KUHNER |
| 445743 | LOGISTIK |
| 56464 | EAI |
| 8EL730077-001 | HELLA |
| 90-31-7011 | WILSON |
| 9051330 | FRIESEN |
| 9182 | CEVAM |
| 9212800 | POWERMAX |
| A005T03391 | MITSUBISHI |
| A005T03391A | MITSUBISHI |
| A130.219 | PSH |
| A147.094 | PSH |
| A5T03391 | MITSUBISHI |
| A5T03391A | MITSUBISHI |
| A-8294 | DIXIE |
| AB160044 | MANDO |
| AB160063 | MANDO |
| AB170066 | MANDO |
| ALM0694 | KRAUF |
| ALT221350 | SIOM |
| ALT32066 | WOODAUTO |
| ALT5174 | ELECTROLOG |
| ALTF414 | 3EFFE |
| B301-18-300 | MAZDA |
| B3C718300 | MAZDA |
| B3C7-18-300 | MAZDA |
| B3C7-18-300B | MAZDA |
| B3C7-18-300C | MAZDA |
| B3D118300 | MAZDA |
| CAL20135 | CASCO |
| CAL20135AS | CASCO |
| CAL20135ES | CASCO |
| CAL20135GS | CASCO |
| CAL20135OS | CASCO |
| CAL20135RS | CASCO |
| F032111308 | CARGO |
| F4BZ-10346-A | FORD |
| F4BZ-10346-ARM | FORD |
| JA694IR | HC PARTS |
| KK37018300 | HYUNDAI / KIA |
| KK370-18300 | MAZDA |
| KK37018300B | HYUNDAI / KIA |
| LR165-709 | HITACHI |
| LR165-709B | HITACHI |
| LRA02166 | LUCAS |
| LRA2166 | LUCAS |
| MB3C7-18-300B | MAZDA |
| OK24018300 | HYUNDAI / KIA |
| STX100663 | STARDAX |
| STX100663R | STARDAX |
| STX101169 | STARDAX |
| STX101901 | STARDAX |
| UD30003A | AS-PL |
Video/Publications
A5105Related Items
