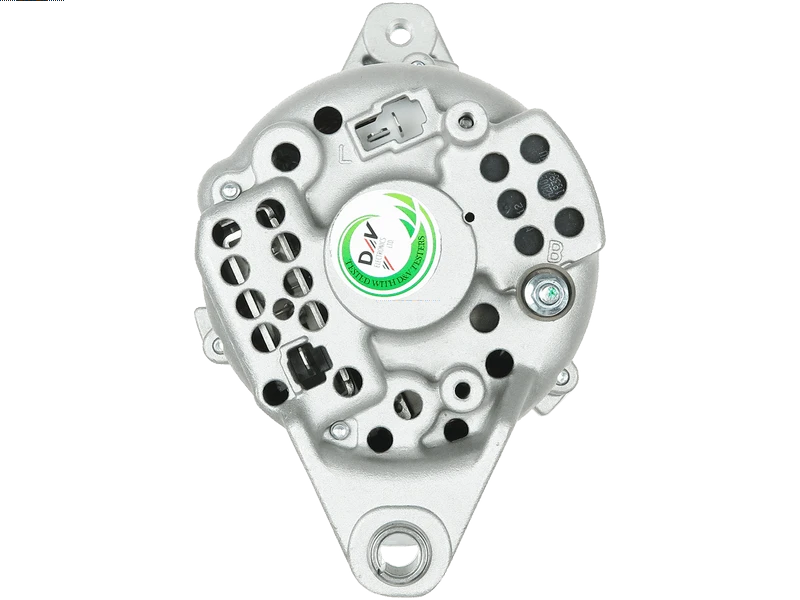

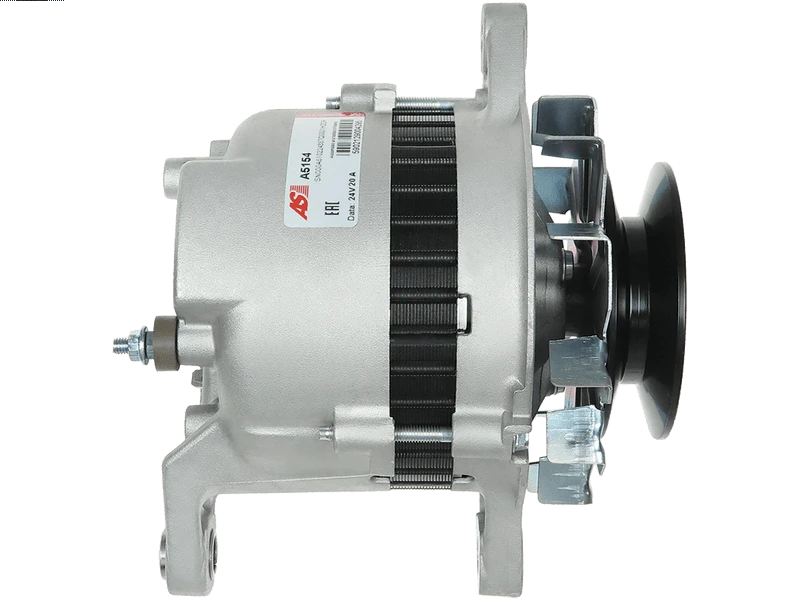

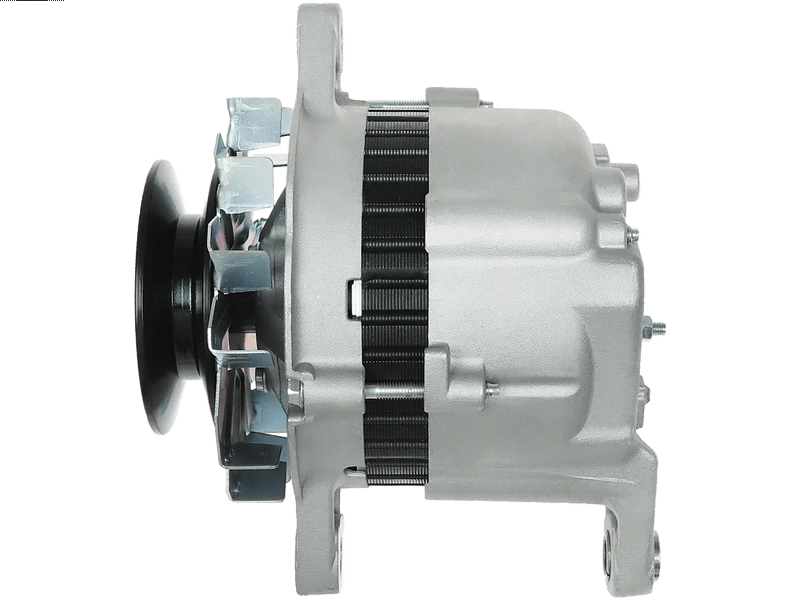

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 267.06 including GST
NZ$ 232.23 excluding GST
or four payments of $66.77
with
Learn More
each
A5154
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A1T70783Associated Numbers
110448 12309N 140-15201 166.001.020 20130180 20137206 2035602 2265 3066858101 32A6806200 3446816100 3446826100 40796RI 48-0930 5812003300 75819 89213847 90-27-3195 A-8844 A001T70283 A001T70783 A007TA8083 A007TA8083A A1T70283 A1T70783 A5154 A7TA8083 A7TA8083A ALM3796 CAL35602 CAL35602AS CAL35602ES CAL35602GS CAL35602OS CAL35602RS DA4496 DRA3386 EAA-222594 LR220-23 LR22023 LRA02437 UD11277ASpecifications
| Amp | 20 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 159 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80 mm |
| OEM Product | No |
| Plug Code | PL_2500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 16 mm |
| Pulley Outside Diameter (O.D.1) | 50.50 mm |
| Pulley Outside Diameter (O.D.2) | 83.50 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Fork Lift | [4DQ] | 01.1983- |
| MITSUBISHI | Fork Lift | [S4E] | 01.1983- |
Reference Information
| 110448 | CARGO |
| 12309N | WAI / TRANSPO |
| 140-15201 | DIXIE |
| 166.001.020 | PSH |
| 166.001.020.270 | PSH |
| 166.001.020.710 | PSH |
| 20130180 | PRESTOLITE |
| 20137206 | REAL |
| 2035602 | SANDO |
| 2265 | CEVAM |
| 3046659 | HYSTER |
| 3066858101 | MITSUBISHI |
| 32A6806200 | MITSUBISHI |
| 3446816100 | MITSUBISHI |
| 3446826100 | MITSUBISHI |
| 3779856 | HYSTER |
| 40796RI | KUHNER |
| 445845 | LOGISTIK |
| 48-0930 | ELSTOCK |
| 5635125 | MEAT & DORIA |
| 5812003300 | ISUZU |
| 5812003350 | ISUZU |
| 75819 | EAI |
| 89213847 | POWERMAX |
| 8EL730130001 | HELLA |
| 90-27-3195 | WILSON |
| A001T70283 | MITSUBISHI |
| A001T70783 | MITSUBISHI |
| A007TA8083 | MITSUBISHI |
| A007TA8083A | MITSUBISHI |
| A130.787 | PSH |
| A147.139 | PSH |
| A1T70283 | MITSUBISHI |
| A1T70783 | MITSUBISHI |
| A24MH0020A2 | SIDAT |
| A5154 | AS-PL |
| A7TA8083 | MITSUBISHI |
| A7TA8083A | MITSUBISHI |
| A-8844 | DIXIE |
| ALM3796 | KRAUF |
| ALT376020 | SIOM |
| ALT5204 | ELECTROLOG |
| ALTL706 | 3EFFE |
| ANM35606X | ANDEL |
| CAL35602 | CASCO |
| CAL35602AS | CASCO |
| CAL35602ES | CASCO |
| CAL35602GS | CASCO |
| CAL35602OS | CASCO |
| CAL35602RS | CASCO |
| CGB-13386 | AINDE |
| DA4496 | DELCO |
| DRA3386 | DELCO |
| F032110448 | CARGO |
| JA796IR | HC PARTS |
| LR22023 | HITACHI |
| LR220-23 | HITACHI |
| LR220-24 | HITACHI |
| LR220701 | HITACHI |
| LRA02437 | LUCAS |
| LRA2437 | LUCAS |
| UD11277A | AS-PL |
