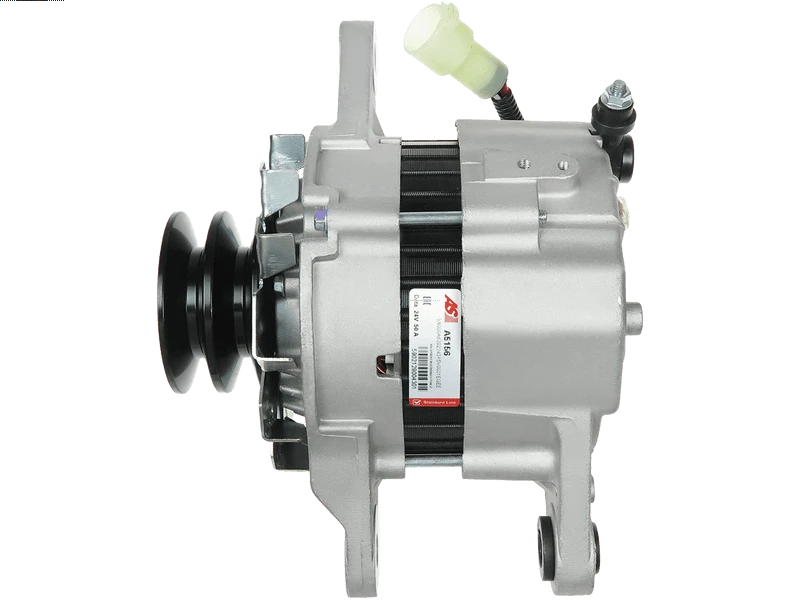

A5156 - Brand new AS-PL Alternator

Specifications

Amp	50 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	12.5 mm
Diameter (D.2)	14.5 mm
Diameter (D.3)	14.5 mm
Grooves	2 qty
Groove Width (W.1)	15 mm
Length (L.1)	205 mm
Mount Inside Length or Pad Mount C-C (C)	69.5 mm
OEM Product	No
Outside Diameter (O.D.1)	50 mm
Outside Diameter (O.D.2)	82 mm
Plug Code	PL_2003
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	57 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
ISUZU	Engine	[12PD1]
ISUZU	Engine	[6HH1]
ISUZU	Engine	[6HK1]

Reference Information

20137206OE 40796RI A1T70283 CAL35602GS 5812003300 A1T70783 A001T70283 ALT376020 3779856 CAL35602AS A001T70783 3066858101 LR220701 A5156 A007TA8083 20137206BN A7TA8083 2035602 32A6806200 1812005160 A007TA8083A 3446826100 3446816100 3046659 A7TA8083A ALT31145 UD11278A 20130180 LR22023 A4TU5686

Video/Publications

1812005160 20130180 20137206BN 20137206OE 2035602 32A6806200 3446816100 3446826100 40796RI 553804RI 553804RIM 5812003300 A001T70283 A007TA8083 A007TA8083A A1T70283 A4TU5686 A5156 A7TA8083 A7TA8083A ALT31145 ALT376020 CAL35602AS CAL35602GS LR22023 UD11278A
