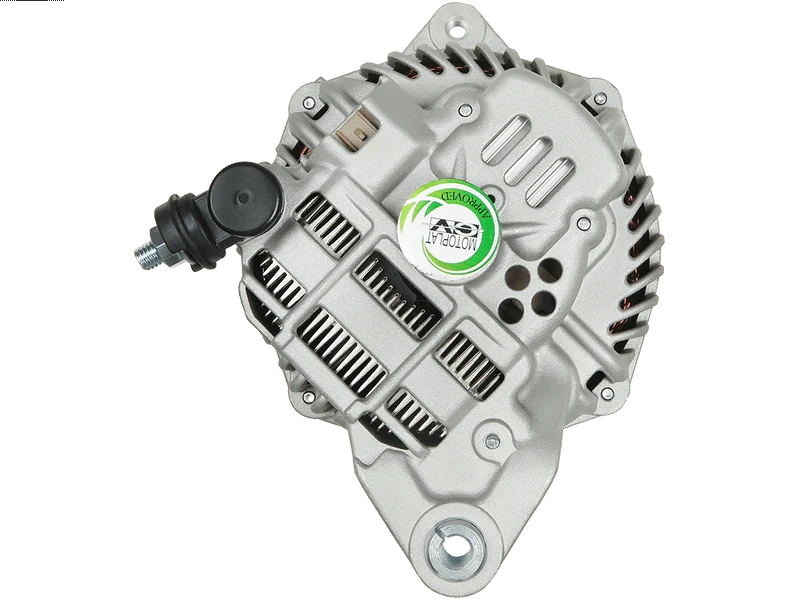

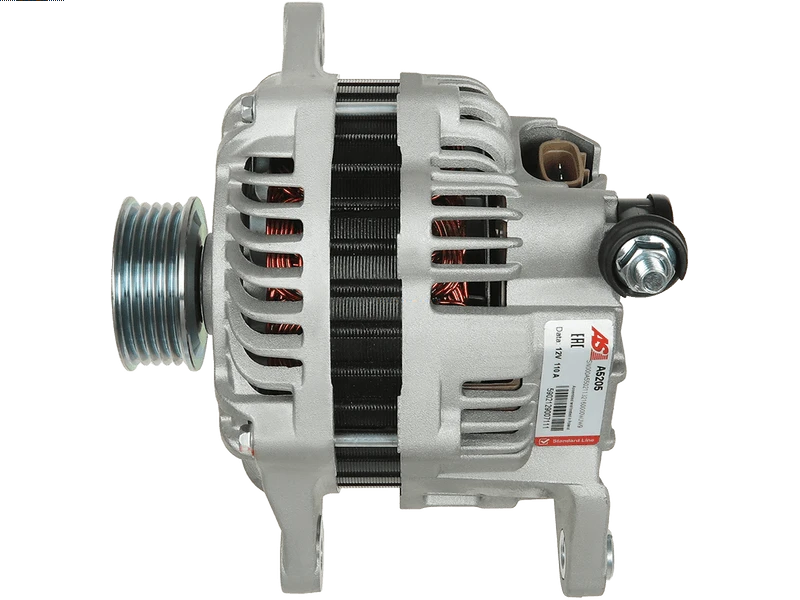

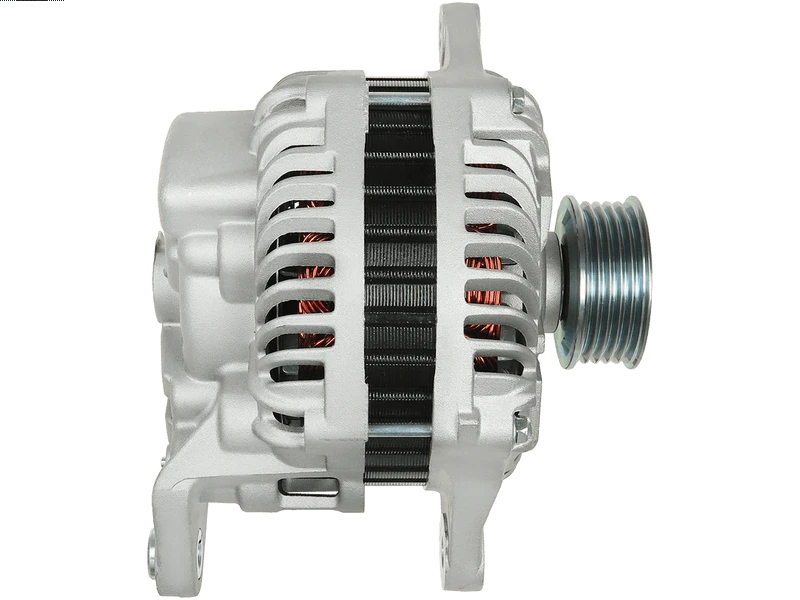

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 648.93 including GST
NZ$ 564.29 excluding GST
or four payments of $162.23
with
Learn More
each
A5205
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
11024N 90-27-3343 A-80087 A3TG2391 ALT31323 UD11244ASpecifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 169 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80 mm |
| OEM Product | No |
| Plug Code | PL_3320 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 46.50 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Legacy 2.5 | 01.2005- | |
| SUBARU | Outback 2.5 | 01.2005- |
Reference Information
| 11024N | WAI / TRANSPO |
| 115796 | CARGO |
| 175.522.110.130 | PSH |
| 23700-AA55A | SUBARU |
| 28-5714 | ELSTOCK |
| 89215653 | POWERMAX |
| 90-27-3343 | WILSON |
| 90-27-3343N | WILSON |
| A003TG2391 | MITSUBISHI |
| A003TG2391ZC | MITSUBISHI |
| A3TG2391 | MITSUBISHI |
| A3TG2391ZC | MITSUBISHI |
| A-80087 | DIXIE |
| ALM2391 | KRAUF |
| ALT31323 | WOODAUTO |
| ALTS342 | 3EFFE |
| DRA0655 | DELCO |
| F032115796 | CARGO |
| LRA03102 | LUCAS |
| LRA3102 | LUCAS |
| PRAS342 | 3EFFE |
| UD101279A | AS-PL |
| UD11244A | AS-PL |
Video/Publications
A5205Related Items
