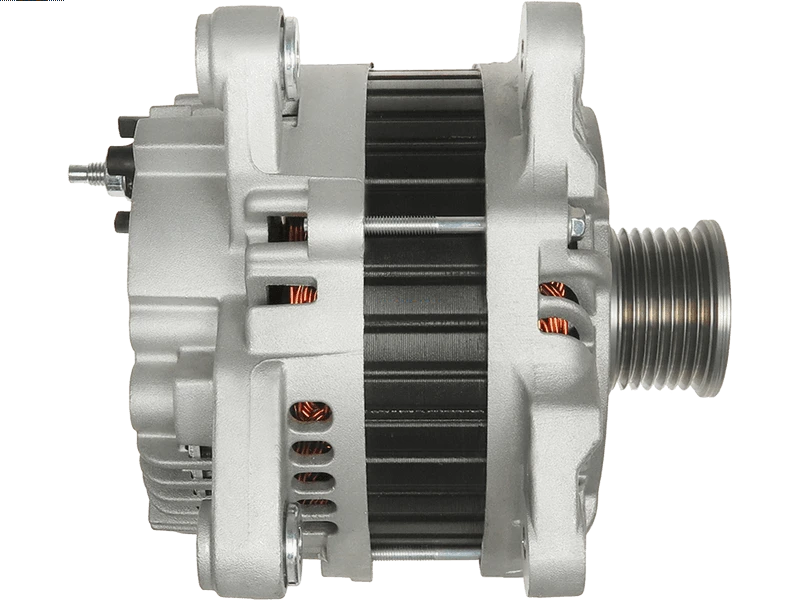

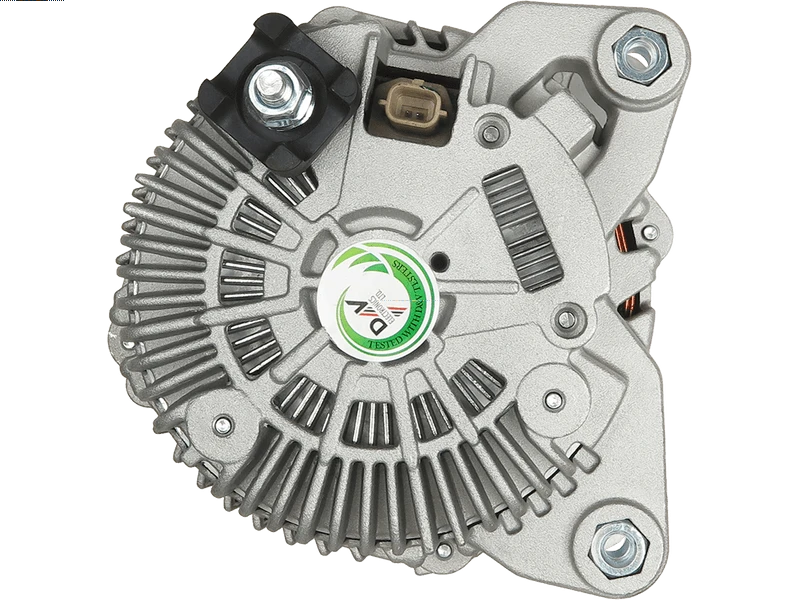

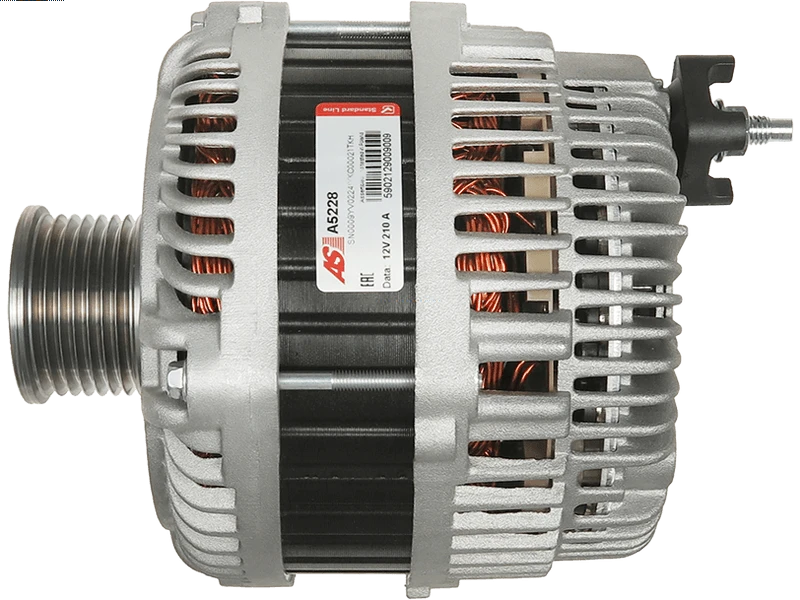

A5228 - Brand new AS-PL Alternator

Specifications

Amp	210 A
Bottom Mounting Foot Width (B)	14.5 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	7 qty
Length (L.1)	202 mm
Mount Inside Length or Pad Mount C-C (C)	60.5 mm
OEM Product	No
Outside Diameter (O.D.1)	49.5 mm
Plug Code	PL_2800
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	34 mm
Pulley Type	CLUTCH
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
RENAULT	Espace 2.0 dCi	[M9]	01.2006-
RENAULT	Laguna 2.0 dCi	[M9]	01.2007-
RENAULT	Laguna 3.0 dCi	[V9X]	01.2008-
RENAULT	Megane 2.0 dCi	[M9]	01.2008-
RENAULT	Vel Satis 2.0 dCi	[M97]	01.2005-

Reference Information

8200654785 CAL35152 LRA03126 57188 8200654785B A4TJ0282AM A4TJ0282ZE DRA0381 231004470R 8200960536 CAL35152ES 7711368888 ALTL672 20778R 2035152 A004TJ0282AM A004TJ0282ZE 442473 SB371 CAL35152RS 28-5738 A4TJ0281 A4TJ0282 301971RI CA1971IR 4699 ANM32601X CAL35152AS 210951 89212778 A12MH0582AS A5228 575.916.210 UD11072A AEC1971 MITA4TJ0282 11.1971 ALT5450 CAL35152GS CAL35152OS LRA3126 301971RIR A004TJ0282 A004TJ0281 20137251OE 301971RIM 20137251BN 8200571531 8200404465

Video/Publications

11.1971 20137251BN 20137251OE 2035152 231004470R 28-5738 301971RI 301971RIM 301971RIR 4699 57188 575.916.210 7711368888 8200404465 8200654785 8200960536 89212778 A004TJ0281 A004TJ0282 A004TJ0282ZE A4TJ0281 A4TJ0282 A4TJ0282ZE AEC1971 ALTL672 CA1971IR CAL35152 CAL35152AS CAL35152ES CAL35152GS CAL35152OS CAL35152RS DRA0381 LRA03126 LRA3126 MITA4TJ0282 SB371 UD11072A 210951
