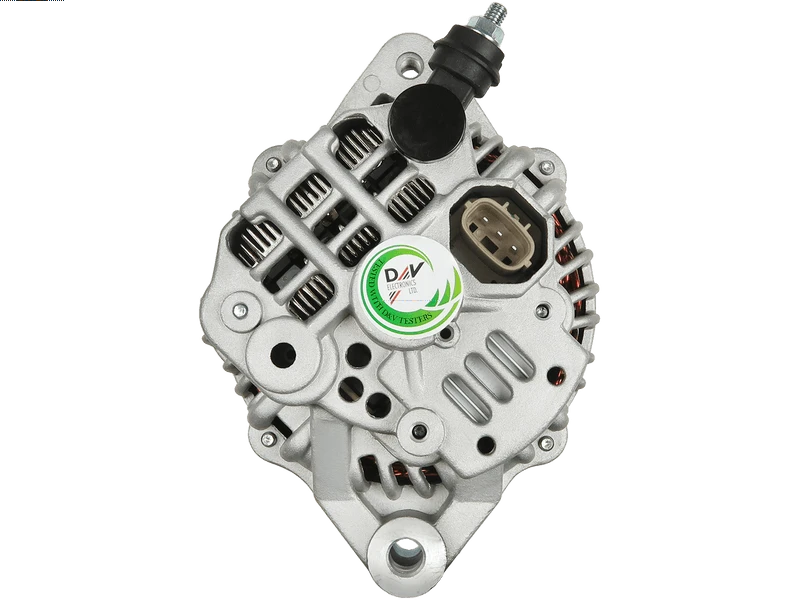

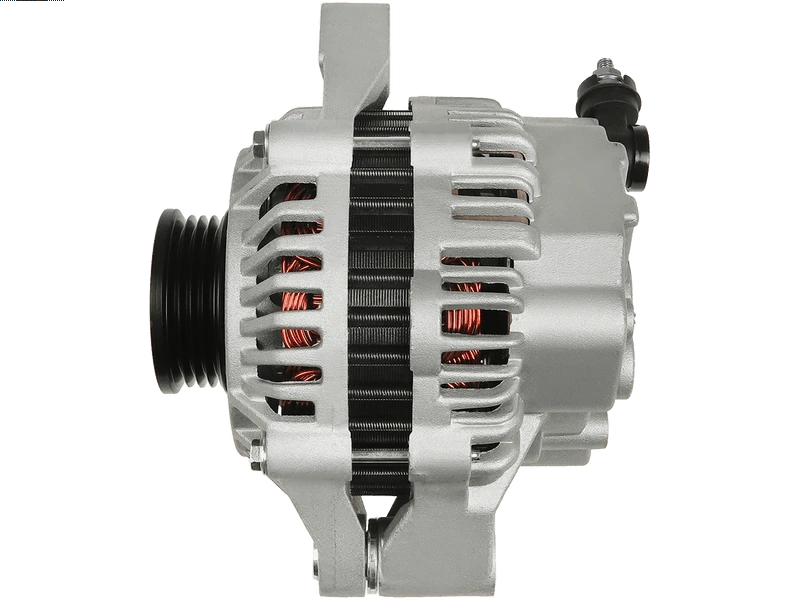

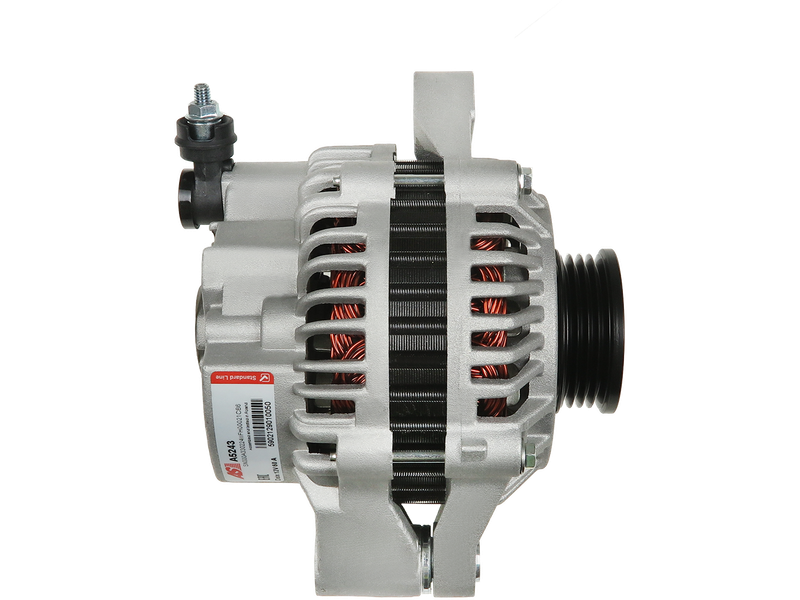

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 339.32 including GST
NZ$ 295.06 excluding GST
or four payments of $84.83
with
Learn More
each
A6185
A5243
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A5TA3891Associated Numbers
102211-5230 102211-5231 102211-5610 12044 13679N 13780N 185.508.060 20147201BN 20147201OE 2047102 210613 28-4640 31400-66D00 31400-66D01 31400-66D02 31400-79G00 31400-81A00 401293RI 401612RI 90-27-3224 9213247 9390 A005TA3891 A005TA3891A A005TA3891AC A005TA3891C A005TA3891ZC A5TA3891 A5TA3891A A5TA3891AC A5TA3891C A5TA3891ZC AEB1293 ALT31123 CAL47102AS CAL47102GS DRB5801 LRA02181 UD11159A
MXA2024 656685-2 anj290
Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 56.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 157 mm |
| OEM Product | No |
| Plug Code | PL_3302 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55.50 mm |
| Pulley to Mount Distance (A) | 88 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Alto 1.1 | [F10D] | 01.2002- |
| SUZUKI | Alto 1.1 | [F10DN] | 01.2002- |
| SUZUKI | Grand Vitara 1.6 | [G16B] | 01.1998-12.2008 |
| SUZUKI | Grand Vitara 1.6 4x4 | [G16B] | 01.1998-12.2005 |
| SUZUKI | Jimny 1.3 | [G13B] | 01.1998- |
| SUZUKI | Jimny 1.3 4WD | [M13A] | 01.2001- |
Reference Information
| 002-Z438 | ASHIKA |
| 102211-5230 | DENSO |
| 102211-5231 | DENSO |
| 102211-5610 | DENSO |
| 12044 | DELCO |
| 13780N | WAI / TRANSPO |
| 185.508.060 | PSH |
| 185.508.060.415 | PSH |
| 185.508.060.460 | PSH |
| 185.508.060.461 | PSH |
| 20147201BN | REAL |
| 20147201OE | REAL |
| 2047102 | SANDO |
| 210613 | ERA |
| 28-4640 | ELSTOCK |
| 2Z438 | JAPKO |
| 31400-66D00 | SUZUKI |
| 31400-66D01 | SUZUKI |
| 31400-66D02 | SUZUKI |
| 3140066D03000 | SUZUKI |
| 3140066D04000 | SUZUKI |
| 31400-66D20 | SUZUKI |
| 31400-79G00 | SUZUKI |
| 31400-81A00 | SUZUKI |
| 3140081A01000 | SUZUKI |
| 31400-M79G00 | SUZUKI |
| 401612RI | KUHNER |
| 445140 | LOGISTIK |
| 90-27-3224 | WILSON |
| 9213247 | POWERMAX |
| 9390 | CEVAM |
| A005TA3891 | MITSUBISHI |
| A005TA3891A | MITSUBISHI |
| A005TA3891AC | MITSUBISHI |
| A005TA3891C | MITSUBISHI |
| A005TA3891ZC | MITSUBISHI |
| A131.015 | PSH |
| A149.414 | PSH |
| A5243 | AS-PL |
| A5TA3891 | MITSUBISHI |
| A5TA3891A | MITSUBISHI |
| A5TA3891AC | MITSUBISHI |
| A5TA3891B | MITSUBISHI |
| A5TA3891BC | MITSUBISHI |
| A5TA3891C | MITSUBISHI |
| A5TA3891ZC | MITSUBISHI |
| AAL1806 | APEC |
| ALT249 | ROLLCO |
| ALT31123 | WOODAUTO |
| ALT491020 | SIOM |
| ALT5458 | ELECTROLOG |
| ALTS230 | 3EFFE |
| ALZ438 | JAPANPARTS |
| ANM48021X | ANDEL |
| CAL47102AS | CASCO |
| CAL47102GS | CASCO |
| DRB5801 | DELCO |
| LRA02181 | LUCAS |
| LRA2181 | LUCAS |
| NPANAL1806 | NAPA |
| STX100076 | STARDAX |
| STX100076R | STARDAX |
| STX101557 | STARDAX |
| UD11159A | AS-PL |
Video/Publications
A5243Related Items
