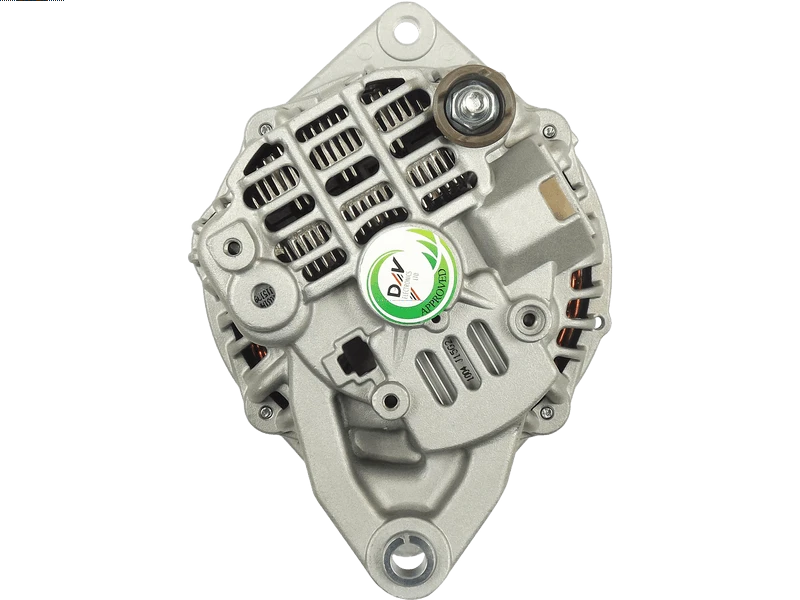

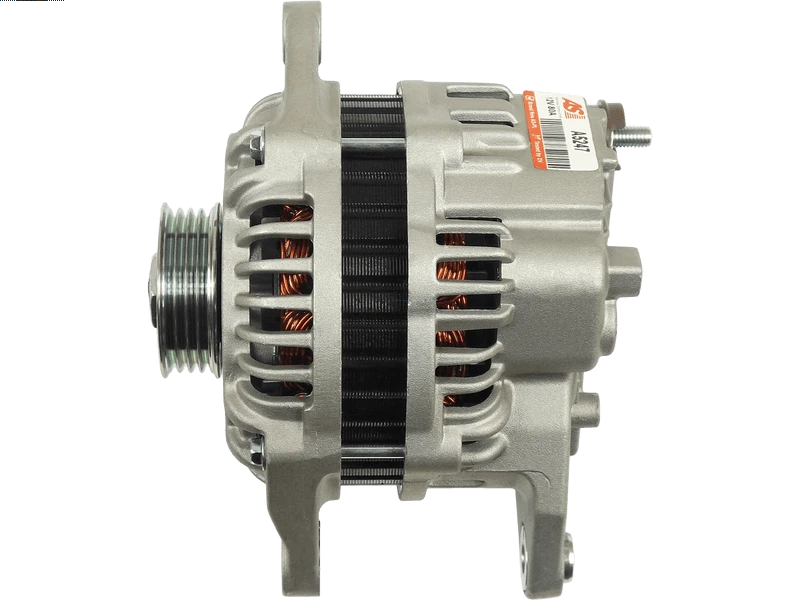

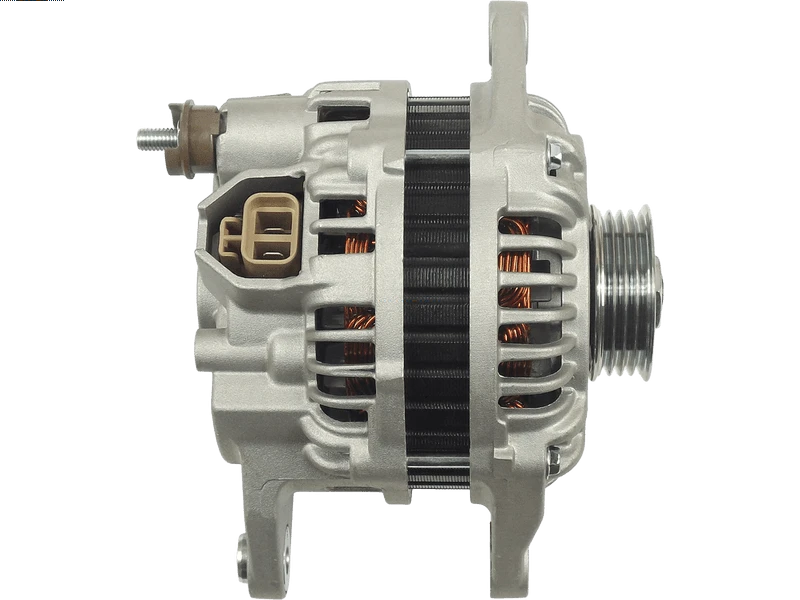

A5247 - Brand new AS-PL Alternator

Specifications

Amp	80 A
Bottom Mounting Foot Width (B)	12.5 mm
Diameter (D.1)	9 mm
Diameter (D.2)	M10x1.25 mm
Diameter (D.3)	10.5 mm
Grooves	4 qty
Length (L.1)	169 mm
Mount Inside Length or Pad Mount C-C (C)	68 mm
OEM Product	No
Outside Diameter (O.D.1)	55 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	38 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Probe 2.0i V6 24V	[KL]	01.1993-12.1997
FORD	Probe 2.5i V6 24V	[KL]	01.1993-12.1997
MAZDA	323 1.8 16V	[BP-ZE]	08.1994-09.1998
MAZDA	626 2.0i	[FS]	01.1992-04.1997

Reference Information

A002T33891ZC AEA1255 94400 ALT5181 A002T33891 A002T33191A A2T33191 A2T33191A 9.44391E+11 SA101 PRAW098 A2T33891 ALTW098 A002T33191 002-M394 LRA3115 ALT31218 ANM36436X 20137191BN 145.527.080 28-5727 986045511 DRA4216 A2T33191ZC 437478 FS0518300C FS11-18-300A 401353RI ALT371910 13445N SA827 FS05-18-300 ALT371440 CAL35191AS LRA03115 FS05-18-300A A2T33891ZC FS1118300 2035191 ALM394 UD11192A 2M394 A-8400 0986045511 FS0518300 13650N 90-27-3136 14449

Video/Publications

002-M394 0986045511 13445N 14449 145.527.080 20137191BN 2035191 28-5727 2M394 401353RI 437478 90-27-3136 94400 944390513360 A-8400 A002T33891 A002T33891ZC A2T33891 A2T33891ZC AEA1255 ALM394 ALT31218 ALT371440 ALT371910 ALTW098 CAL35191AS DRA4216 FS11-18-300A LRA03115 LRA3115 SA101 SA827 UD11192A
