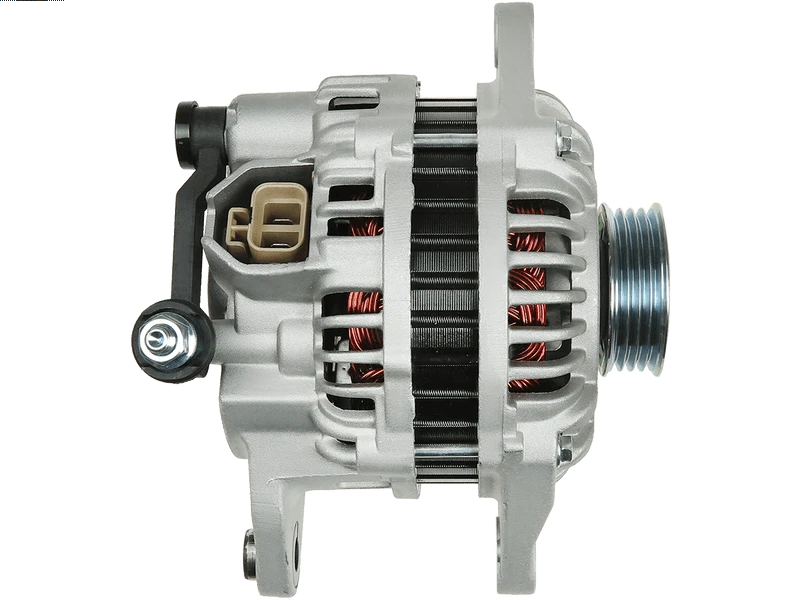

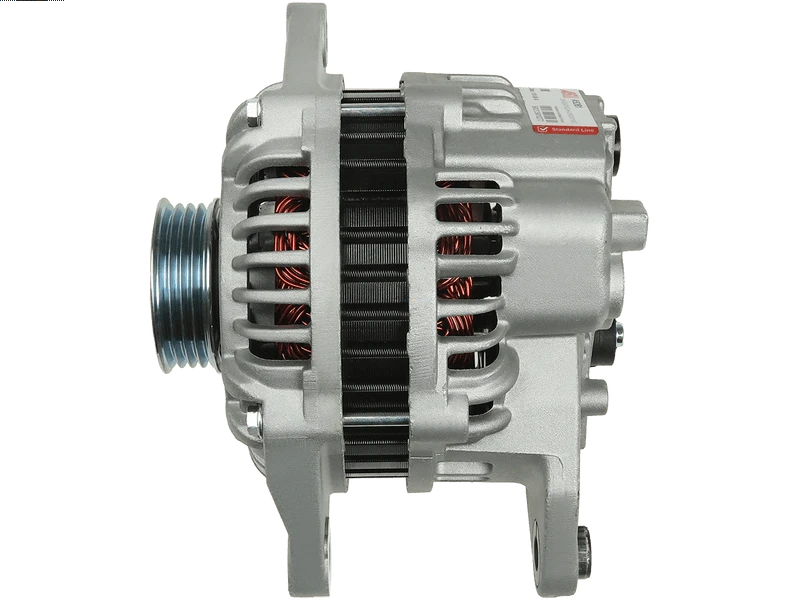

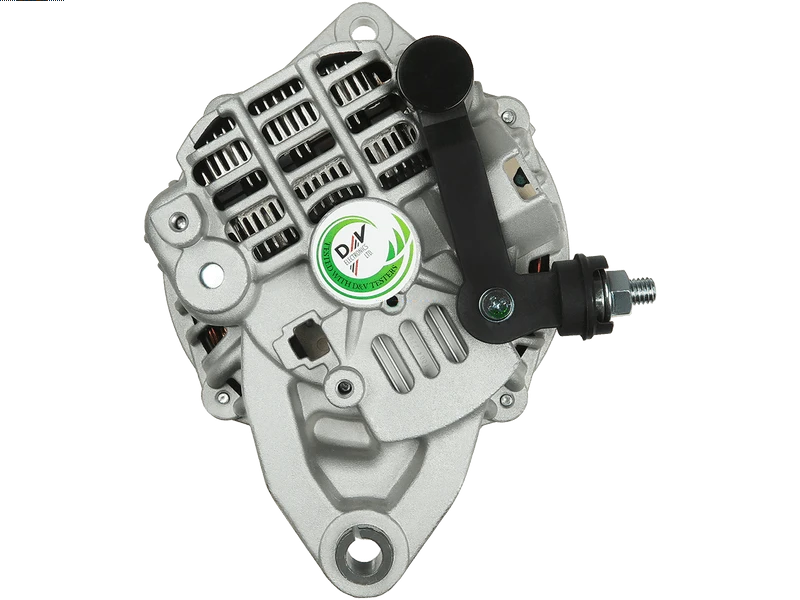

A5261 - Brand new AS-PL Alternator

Specifications

Amp	80 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	9 mm
Diameter (D.2)	M10x1.25 mm
Diameter (D.3)	10.5 mm
Grooves	4 qty
Length (L.1)	166 mm
Mount Inside Length or Pad Mount C-C (C)	68 mm
OEM Product	No
Outside Diameter (O.D.1)	55 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	41 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	626 1.8 i	[FP]	01.1992-12.1997
MAZDA	626 2.0 i	[FS]	01.1992-12.1997
MAZDA	MX-6 2.0 i	[SF]	01.1991-12.1997

Reference Information

A002T33191A A2T33191A 9.44391E+11 A2T33891 A002T33191 111317 002-M394 11.0755M 203-461 0986040491 ALT3053 401353RI ALT371910 ALTF305 BOM UNIT 9212368 FS05-18-300C A2T33891ZC 2035191 9051336 JA755IR 56469 445612 3465426 2M394 11.0755 A002T33191ZC 986040491 AEA1255 AG0365 ANM35389X A002T33891 437627 A2T33191 LRB155 FS64-18-300 20137191BN DRA3169 A2T33191ZC 40755RI ALT5098 FS05-18-300 CAL35191AS LRB00155 9172 FS1118300 UD11200A ALM394 A5261 28-1756 FS1118300A

Video/Publications

002-M394 0986040491 11.0755 11.0755M 111317 20137191BN 2035191 28-1756 2M394 3465426 401353RI 40755RI 437627 56469 66021301 9051336 9172 9212368 944390513360 A002T33191 A002T33191A A002T33191ZC A2T33191 A2T33191A A2T33191ZC AEA1255 AG0365 ALM394 ALT3053 ALT371910 ALTF305 CAL35191AS DRA3169 FS05-18-300 FS05-18-300C FS64-18-300 JA755IR LRB00155 LRB155 UD11200A UNIT BOM 203-461 A5261
