Associated Numbers
231003RZ1A A002TX4381 A002TX4381ZC A2TX4381 A2TX4381ZC UD12488ASpecifications

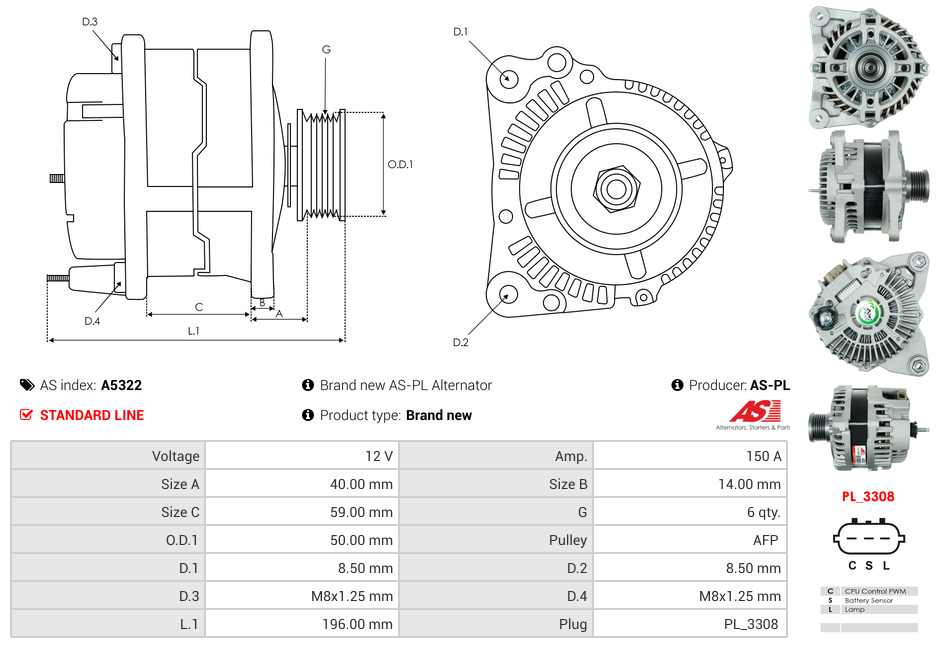

Amp | 150 A |
Bottom Mounting Foot Width (B) | 14 mm |
Diameter (D.1) | 8.5 mm |
Diameter (D.2) | 8.5 mm |
Diameter (D.3) | M8x1.25 mm |
Diameter (D.4) | M8x1.25 mm |
Grooves | 6 qty |
Length (L.1) | 196 mm |
Mount Inside Length or Pad Mount C-C (C) | 59 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 50 mm |
Plug Code | PL_3308 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 40 mm |
Pulley Type | CLUTCH |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
NISSAN | Sentra 2.0 | 01.2010- |
Reference Information
A2TX4381 231003RZ1A A2TX4381ZC A002TX4381ZC A002TX4381 UD12488AVideo/Publications
231003RZ1A A002TX4381 A002TX4381ZC A2TX4381 A2TX4381ZC UD12488AAdd Your Number
