Associated Numbers
23019 90-27-3449 A-80593 A3TX1691 A3TX1691ZC DG1T10300CB DG1Z10346F UD12496ASpecifications

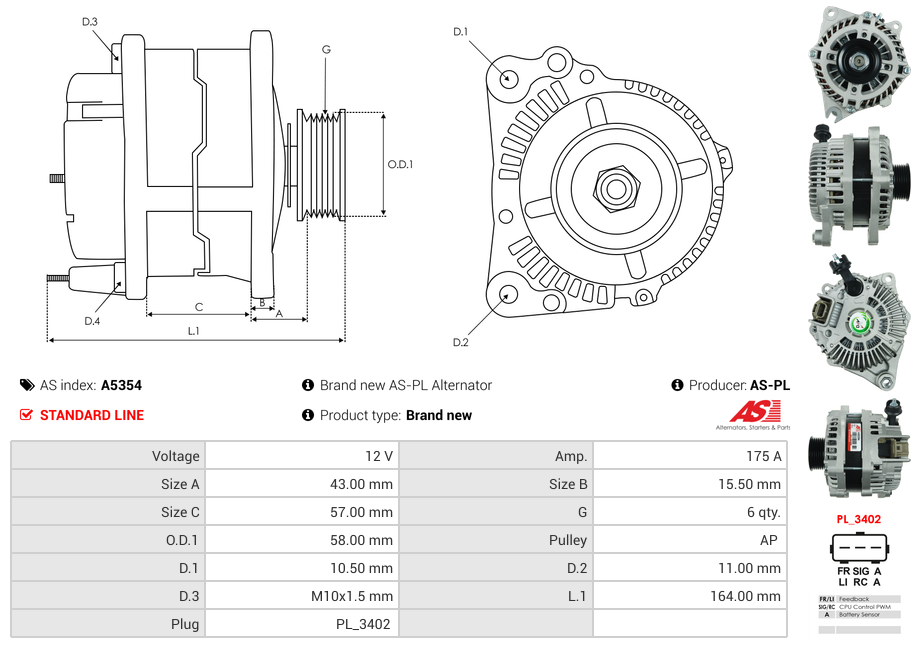

Amp | 175 A |
Bottom Mounting Foot Width (B) | 15.5 mm |
Diameter (D.1) | 10.5 mm |
Diameter (D.2) | 11 mm |
Diameter (D.3) | M10x1.5 mm |
Grooves | 6 qty |
Length (L.1) | 164 mm |
Mount Inside Length or Pad Mount C-C (C) | 57 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 58 mm |
Plug Code | PL_3402 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 43 mm |
Pulley Type | SOLID |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
FORD | Explorer 3.5 V6 | 01.2013- | |
FORD | Flex 3.5 V6 | 01.2013- | |
FORD | Taurus 3.5 V6 | 01.2013- | |
LINCOLN | MKS 3.7 V6 | 01.2013- |
Reference Information
90-27-3449 A-80593 UD12496A A3TX1691 DG1T10300CB A3TX1691ZC DG1Z10346F 23019Video/Publications
23019 90-27-3449 A-80593 A3TX1691 A3TX1691ZC DG1T10300CB DG1Z10346F UD12496AAdd Your Number
