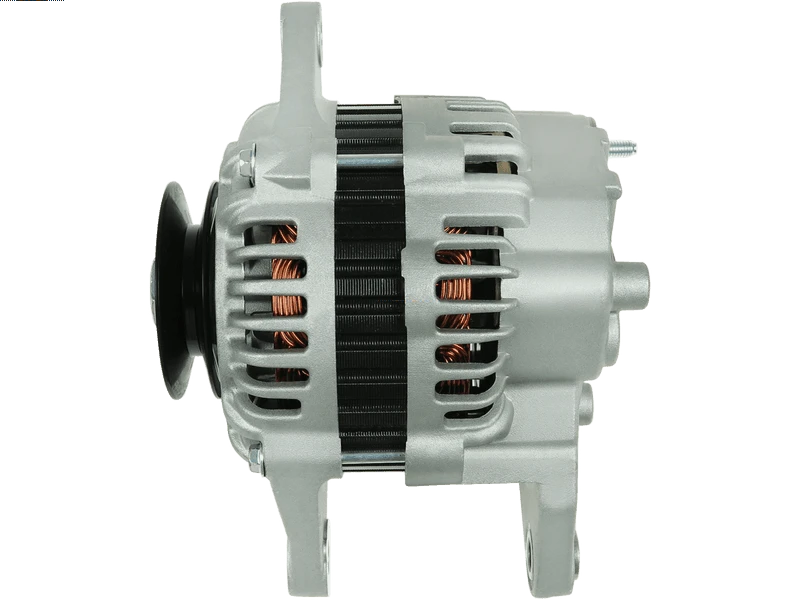

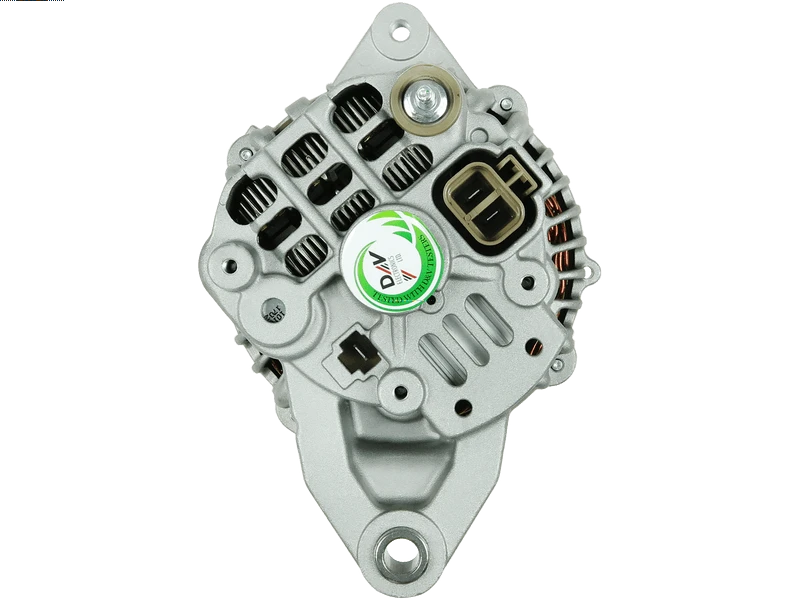

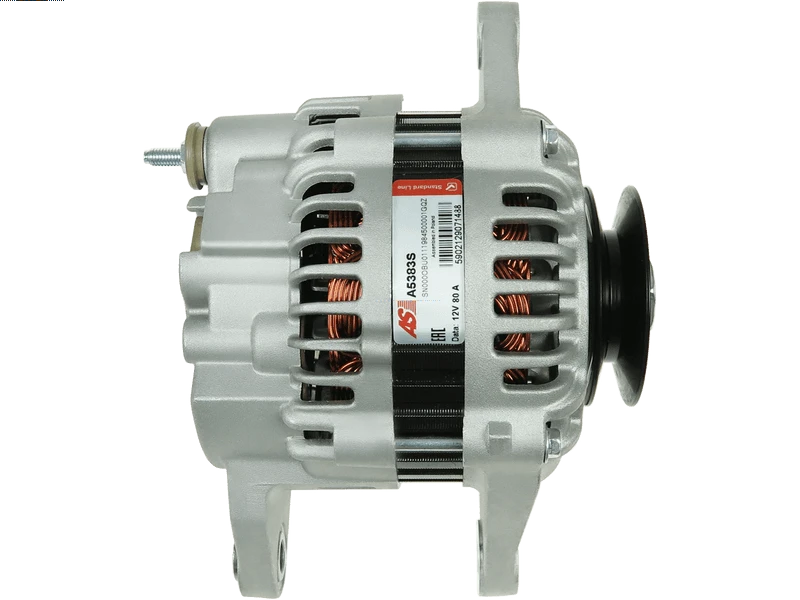

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 350.49 including GST
NZ$ 304.77 excluding GST
or four payments of $87.62
with
Learn More
each
A5383S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
143-21113 1G39864011 1G39864012 2035358 230-50122 23992N 554511RI 695.530.080 A-80630 A005TA8277 A005TA8277A A5TA8277 A5TA8277A ALN8277 CAL35358 CAL35358AS CAL35358ES CAL35358GS CAL35358OS CAL35358RS UD13646ASpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67.50 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 44 mm |
| Pulley Outside Diameter (O.D.2) | 73 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 236D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 242D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 246D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 257D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 259D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 262D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 277D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 279D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 287D | [C3.3B] | 01.2014-12.2017 |
| CATERPILLAR | 289D | [C3.3B] | 01.2014-12.2017 |
Reference Information
| 143-21113 | DIXIE |
| 1G39864011 | KUBOTA |
| 1G39864012 | KUBOTA |
| 230-50122 | ROBERT'S |
| 23992N | WAI / TRANSPO |
| 3979953 | CATERPILLAR |
| 554511RI | KUHNER |
| 695.530.080 | PSH |
| A005TA8277 | MITSUBISHI |
| A005TA8277A | MITSUBISHI |
| A5383S | AS-PL |
| A5TA8277 | MITSUBISHI |
| A5TA8277A | MITSUBISHI |
| A-80630 | DIXIE |
| ALN8277 | KRAUF |
| ALT5492 | ELECTROLOG |
| STX110030 | STARDAX |
| STX110039 | STARDAX |
| UD13646A | AS-PL |
Video/Publications
A5383SRelated Items
