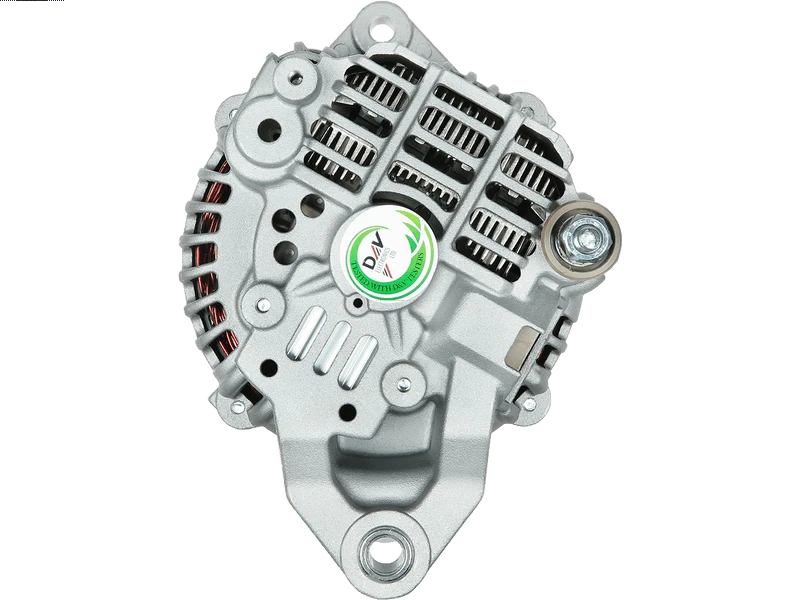

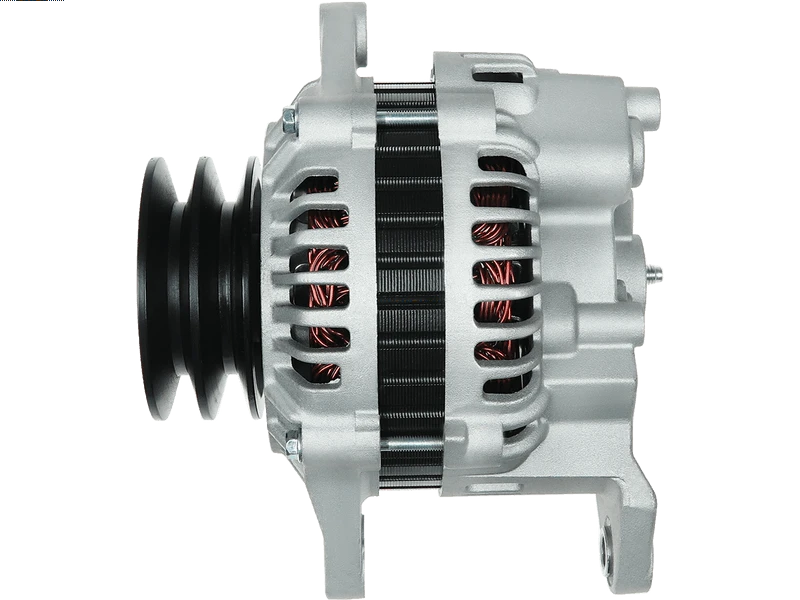

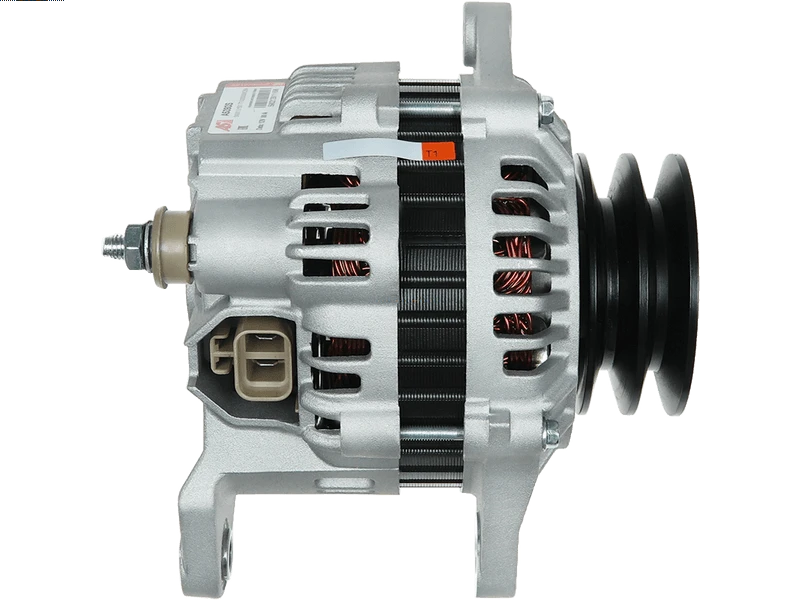

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 411.37 including GST
NZ$ 357.71 excluding GST
or four payments of $102.84
with
Learn More
each
A5015
A5393S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
23100-0Y710Associated Numbers
23100-0Y710 28-2878 UD16863A DA5003 DRA3893 J5111086 ALM2386 401368RI LRA01665 944390901670 MRA90167 A003TA2799 A3TA2799 89212903 165.537.080 22665R ALT31174Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley Outside Diameter (O.D.2) | 88 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Patrol GR 2.8 TD | [RD28T] | 09.1988-06.1997 |
Reference Information
| 165.537.080 | PSH |
| 22665R | WAI / TRANSPO |
| 23100-0Y710 | NISSAN |
| 23100-4P410 | NISSAN |
| 28-2878 | ELSTOCK |
| 401368RI | KUHNER |
| 446916 | LOGISTIK |
| 89212903 | POWERMAX |
| 944390901670 | MAGNETI MARELLI |
| A003TA2799 | MITSUBISHI |
| A130.926 | PSH |
| A2TA4578 | MITSUBISHI |
| A3TA2799 | MITSUBISHI |
| A5393S | AS-PL |
| ALM2386 | KRAUF |
| ALT31174 | WOODAUTO |
| ALT5486 | ELECTROLOG |
| ALTF783 | 3EFFE |
| DA5003 | DELCO |
| DRA3893 | DELCO |
| J5111086 | HERTH+BUSS |
| LRA01665 | LUCAS |
| LRA1665 | LUCAS |
| MRA90167 | MAGNETI MARELLI |
| STX110199 | STARDAX |
| STX110199R | STARDAX |
| UD16863A | AS-PL |
