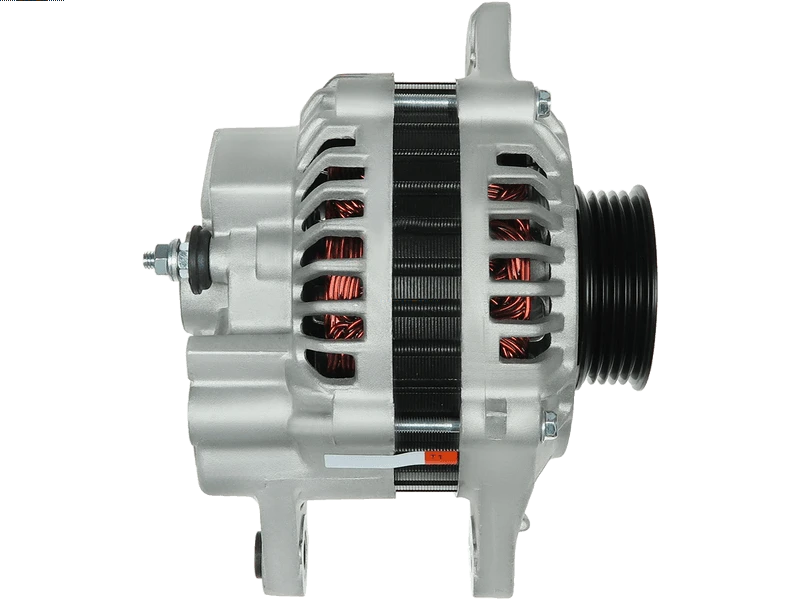

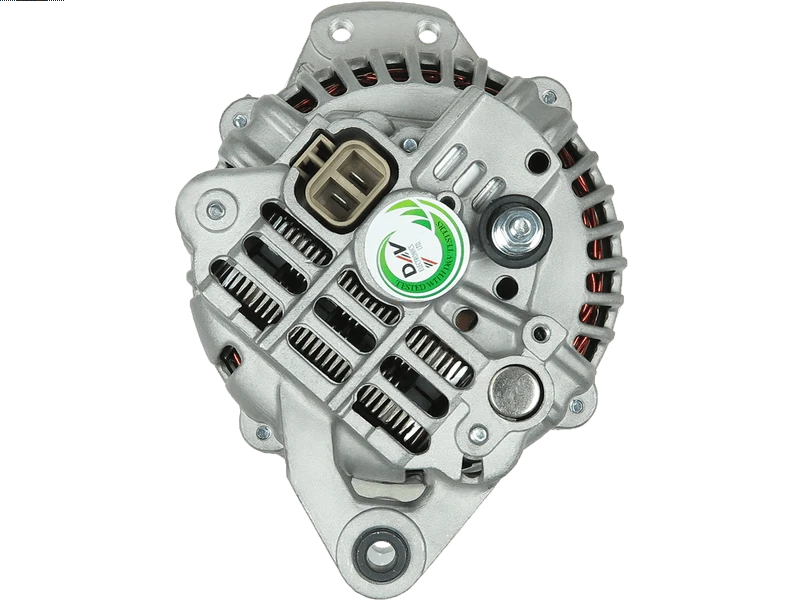

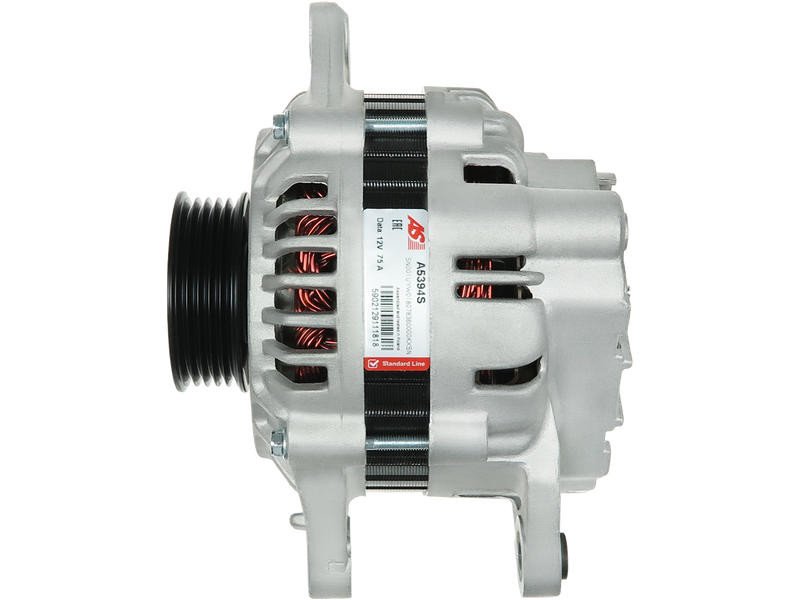

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 417.47 including GST
NZ$ 363.02 excluding GST
or four payments of $104.37
with
Learn More
each
A5394S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A3T02193Associated Numbers
A3T02193 ALM0685 MD141855 UD16886A 0986044811 CAL35126AS 9022 DA4297 DRA3187 A-8303 56458 28-1677 J5115028 40685RI 40685RIM LRB00233 943346189010 MAR6189 A003T02193 AB175201 89212182 155.528.075 20137621BN 2035126.0 437736 13257N 13257R 90-27-3088 ALT31063Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 161 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 65 mm |
| Pulley to Mount Distance (A) | 37 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Pajero 3.0 V6 | [6G72 (SOHC 12V)] | 11.1988-11.1990 |
| MITSUBISHI | Pajero 3.0 V6 | [6G72(SOHC12V)] | 11.1988-11.1990 |
| MITSUBISHI | Pajero 3.0 V6 4WD | [6G72 (SOHC 12V)] | 12.1990-12.1995 |
| MITSUBISHI | Pajero 3.0 V6 4WD | [6G72(SOHC12V)] | 12.1990-12.1995 |
| MITSUBISHI | Pajero 3.0 V6 Canvas Top | [6G72 (SOHC 12V)] | 12.1990-12.1995 |
| MITSUBISHI | Pajero 3.0 V6 Canvas Top | [6G72(SOHC12V)] | 12.1990-12.1995 |
Reference Information
| 002-C975 | ASHIKA |
| 0986044811 | BOSCH |
| 13257N | WAI / TRANSPO |
| 13257R | WAI / TRANSPO |
| 155.528.075 | PSH |
| 20137621BN | REAL |
| 2035126.0 | SANDO |
| 28-1677 | ELSTOCK |
| 2C975 | JAPKO |
| 3730036010 | HYUNDAI / KIA |
| 40685RI | KUHNER |
| 40685RIM | KUHNER |
| 437736 | VALEO |
| 445734 | LOGISTIK |
| 56458 | EAI |
| 89212182 | POWERMAX |
| 9022 | CEVAM |
| 90-27-3088 | WILSON |
| 943346189010 | MAGNETI MARELLI |
| A002T02193 | MITSUBISHI |
| A003T02193 | MITSUBISHI |
| A003T02198 | MITSUBISHI |
| A003T04493 | MITSUBISHI |
| A003T41892 | MITSUBISHI |
| A2T02193 | MITSUBISHI |
| A2T41892 | MITSUBISHI |
| A3T02193 | MITSUBISHI |
| A3T02198 | MITSUBISHI |
| A3T04493 | MITSUBISHI |
| A3T41892 | MITSUBISHI |
| A-8303 | DIXIE |
| AB175201 | MITSUBISHI |
| ALC975 | JAPANPARTS |
| ALM0685 | KRAUF |
| ALT31063 | WOODAUTO |
| ALT371260 | SIOM |
| ALT5409 | ELECTROLOG |
| ALT6150 | SIOM |
| ALTS945 | 3EFFE |
| ANM35407X | ANDEL |
| CAL35126AS | CASCO |
| DA4297 | DELCO |
| DRA3187 | DELCO |
| J5115028 | HERTH+BUSS |
| LRB00233 | LUCAS |
| LRB233 | LUCAS |
| MAR6189 | MAGNETI MARELLI |
| MD122338 | MITSUBISHI |
| MD126796 | MITSUBISHI |
| MD134315 | MITSUBISHI |
| MD141855 | MITSUBISHI |
| STX100642 | STARDAX |
| UD16886A | AS-PL |
Video/Publications
A5394SRelated Items
