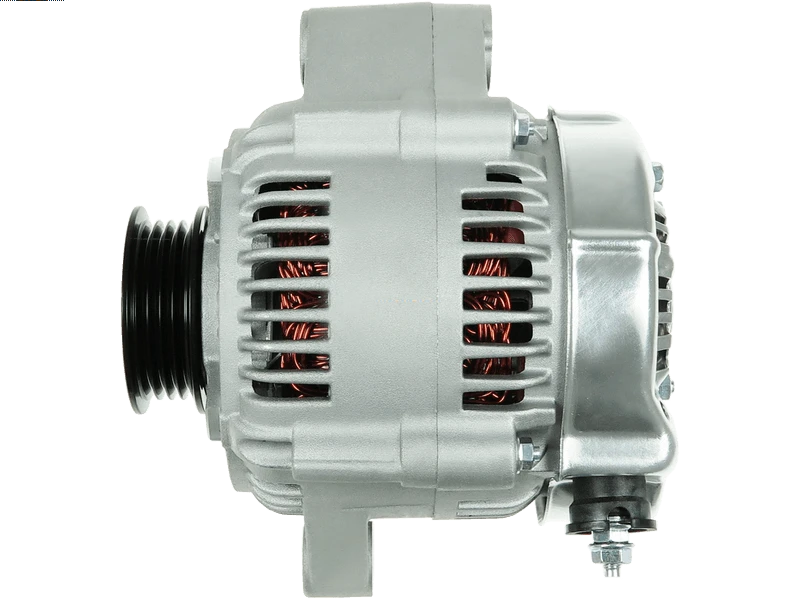

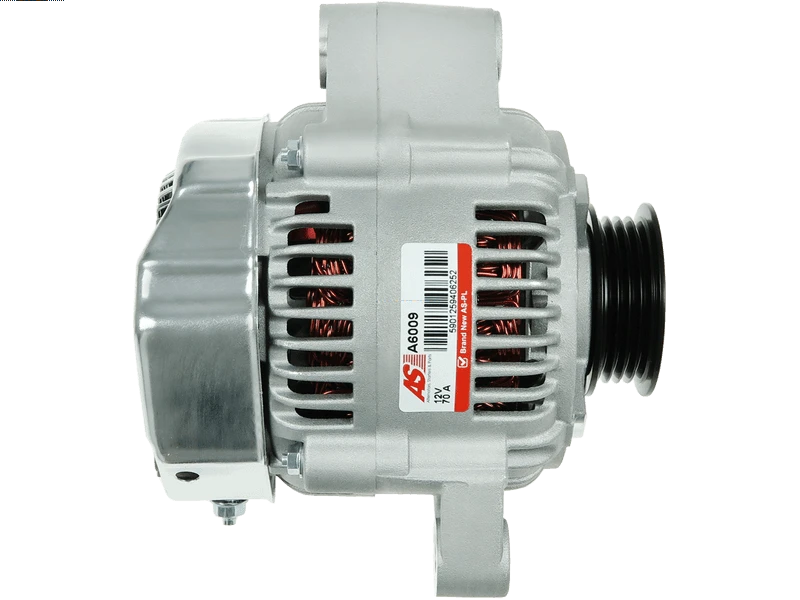

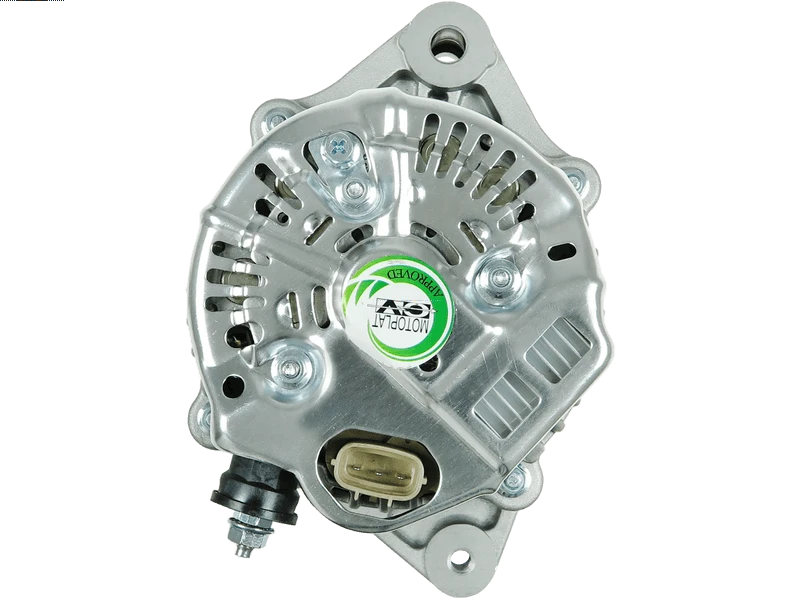

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 388.32 including GST
NZ$ 337.67 excluding GST
or four payments of $97.08
with
Learn More
each
A6101
A6009
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1012110340Associated Numbers
0986040461 101211-0050 101211-0051 101211-0052 101211-0340 101211-0341 101211-0342 101211-0740 101211-0741 101211-5150 101211-5970 102211-5090 11.0988 11.0988M 111518 13457N 13486N 13489N 13711N 20110212 20132041BN 2040140 27060-11170 27060-11270 27060-11280 27060-11281 27060-11340 27060-55070 28-2540 40988RI 437509 437643 56408 89213388 8EL737063-001 9051293 9213388 9280 A6009 AEA2212 ALT30168 CAL40140AS DRA3508 EAA-221539 JA988IR LRB00212 SA663
14632 14-632
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 57.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 161 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 59.50 mm |
| Pulley to Mount Distance (A) | 90.50 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Corolla 1.3 16V XLi | (EE101)[4E-FE] | 07.1992-04.1997 |
| TOYOTA | Corolla 1.3 XLi | (E10)[4E-FE] | 05.1995-04.1997 |
| TOYOTA | Corolla 1.3 XLi | (EE101)[4E-FE] | 07.1992-04.1997 |
| TOYOTA | Corolla 1.4 | [4E-FE] | 04.1997-10.1999 |
| TOYOTA | Corolla 1.4 16V GLi | (EE101)[4E-FE] | 07.1992-04.1997 |
| TOYOTA | Corolla 1.4 16V XLi | (EE101)[4E-FE] | 07.1992-04.1997 |
| TOYOTA | Corolla 1.8 16V 4WD | (E10)[7A-FE] | 09.1995-04.1997 |
| TOYOTA | Paseo 1.5 16V | [5E-FE] | 08.1995-07.1999 |
| TOYOTA | Paseo 1.5 16V | (EL54)[5E-FE] | 10.1996-03.1999 |
| TOYOTA | Starlet 1.3 | [4E-FE] | 01.1996-03.1999 |
| TOYOTA | Starlet 1.3 12V | (EP81)[2E-E] | 12.1992-01.1996 |
Reference Information
| 002-T517 | ASHIKA |
| 0986040461 | BOSCH |
| 101211-0050 | DENSO |
| 101211-0051 | DENSO |
| 101211-0052 | DENSO |
| 101211-0340 | DENSO |
| 101211-0341 | DENSO |
| 101211-0342 | DENSO |
| 101211-0740 | DENSO |
| 101211-0741 | DENSO |
| 101211-5150 | DENSO |
| 101211-5970 | DENSO |
| 102211-0340 | DENSO |
| 102211-5090 | DENSO |
| 11.0988 | LAUBER |
| 11.0988M | LAUBER |
| 111518 | CARGO |
| 13457N | WAI / TRANSPO |
| 13486N | WAI / TRANSPO |
| 13489N | WAI / TRANSPO |
| 13711N | WAI / TRANSPO |
| 195.534.070.050 | PSH |
| 20110212 | PRESTOLITE |
| 20132041BN | REAL |
| 2040140 | SANDO |
| 210629 | ERA |
| 27060-11170 | TOYOTA |
| 27060-11270 | TOYOTA |
| 270601127084 | TOYOTA |
| 27060-11280 | TOYOTA |
| 27060-11281 | TOYOTA |
| 2706011300 | TOYOTA |
| 27060-11300 | TOYOTA |
| 2706011320 | TOYOTA |
| 27060-11320 | TOYOTA |
| 270601132084 | TOYOTA |
| 2706011330 | TOYOTA |
| 27060-11340 | TOYOTA |
| 27060-55060 | TOYOTA |
| 27060-55070 | TOYOTA |
| 28-2540 | ELSTOCK |
| 2T517 | JAPKO |
| 40988RI | KUHNER |
| 437509 | VALEO |
| 437643 | VALEO |
| 446037 | LOGISTIK |
| 56408 | EAI |
| 89213388 | POWERMAX |
| 8EL737063-001 | HELLA |
| 9051293 | FRIESEN |
| 9213388 | POWERMAX |
| 9280 | CEVAM |
| A131.324 | PSH |
| A6009 | AS-PL |
| AAL1651 | APEC |
| AEA2212 | AUTOELECTRO |
| ALT30168 | WOODAUTO |
| ALT421400 | SIOM |
| ALT517 | JAPANPARTS |
| ALT6295 | ELECTROLOG |
| ALTW108 | 3EFFE |
| ANM35728X | ANDEL |
| CAL40140AS | CASCO |
| CGB-13508 | AINDE |
| DRA3508 | DELCO |
| F032111518 | CARGO |
| J5112088 | HERTH+BUSS |
| J5112093 | HERTH+BUSS |
| JA1178IR | HC PARTS |
| JA988IR | HC PARTS |
| LRB00212 | LUCAS |
| LRB212 | LUCAS |
| NPANAL1651 | NAPA |
| SA663 | SOVEREIGN |
| STA0234R | BOVEZ |
| STX100109 | STARDAX |
| STX100109R | STARDAX |
| STX100655 | STARDAX |
| STX100655R | STARDAX |
| UD103474A | AS-PL |
Video/Publications
A6009Related Items
