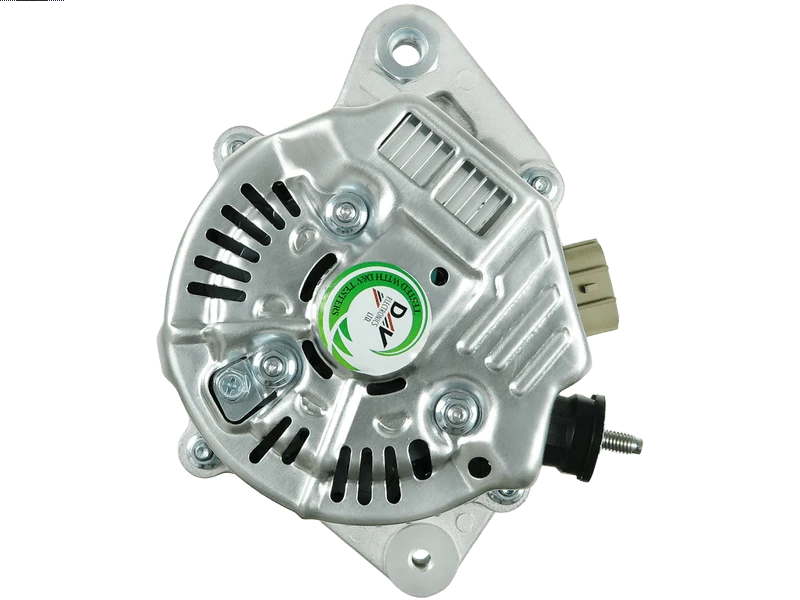

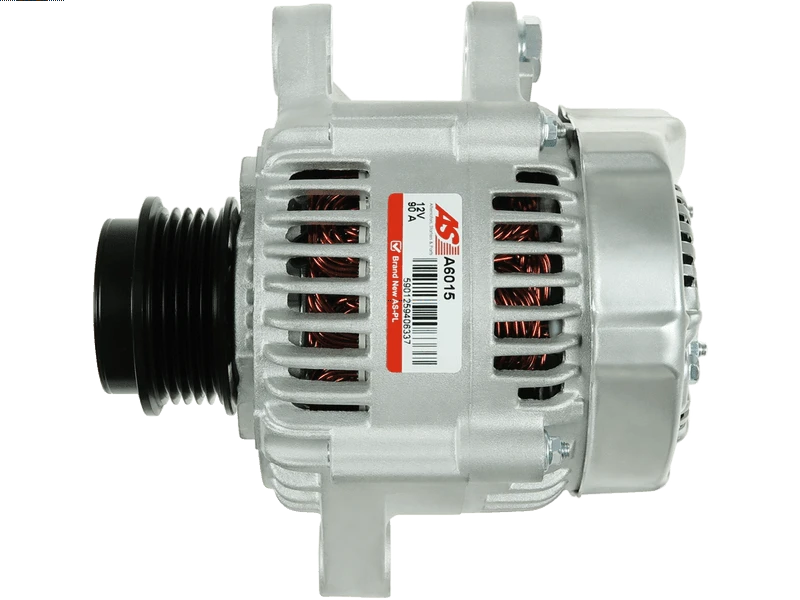

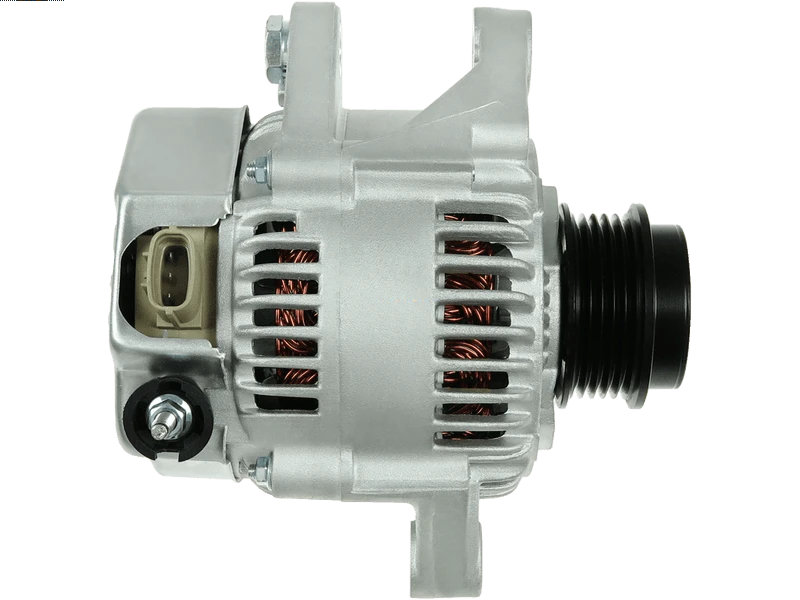

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 492.13 including GST
NZ$ 427.94 excluding GST
or four payments of $123.03
with
Learn More
each
A6015
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1022112780Associated Numbers
102211-2780 11.1891 20132851BN 20132851OE 2040158 23859R 27060-33040 28-4922 401891RI 401891RID 57044 89212696 8EL738211-521 9090480 9212696 9271 AEK2805 ALT30294 CAL40158AS CAL40158GS DAN965 DRA0121 EAA-221538 JA1891IR LRA02805 SB365 23859NSpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 17.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41.50 mm |
| OEM Product | No |
| Plug Code | PL_3312 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.4 D-4D | (NLP10)[1ND-TV] | 12.2001- |
| TOYOTA | Yaris Verso 1.4 D-4D | (NLP22)[1ND-TV] | 12.2001- |
Reference Information
| 102211-2780 | DENSO |
| 102211-9520 | DENSO |
| 11.1891 | LAUBER |
| 20132851BN | REAL |
| 20132851OE | REAL |
| 2040158 | SANDO |
| 210677 | ERA |
| 23859N | WAI / TRANSPO |
| 23859R | WAI / TRANSPO |
| 27060-33040 | TOYOTA |
| 28-4922 | ELSTOCK |
| 401891RI | KUHNER |
| 401891RID | KUHNER |
| 447090 | LOGISTIK |
| 5540780 | MEAT & DORIA |
| 57044 | EAI |
| 89212696 | POWERMAX |
| 8EL738211-521 | HELLA |
| 9090480 | FRIESEN |
| 9212696 | POWERMAX |
| 9271 | CEVAM |
| A12DE0175A2 | SIDAT |
| A6015 | AS-PL |
| AEK2805 | AUTOELECTRO |
| ALT30294 | WOODAUTO |
| ALT421580 | SIOM |
| ALT6308 | ELECTROLOG |
| ALTJ014 | 3EFFE |
| ANM32341X | ANDEL |
| CAL40158AS | CASCO |
| CAL40158GS | CASCO |
| DAN950 | DENSO |
| DAN965 | DENSO |
| DRA0121 | DELCO |
| JA1891IR | HC PARTS |
| LRA02805 | LUCAS |
| LRA2805 | LUCAS |
| RNL1891JA | RNL |
| SB365 | SOVEREIGN |
| STX101620 | STARDAX |
Video/Publications
A6015Related Items
