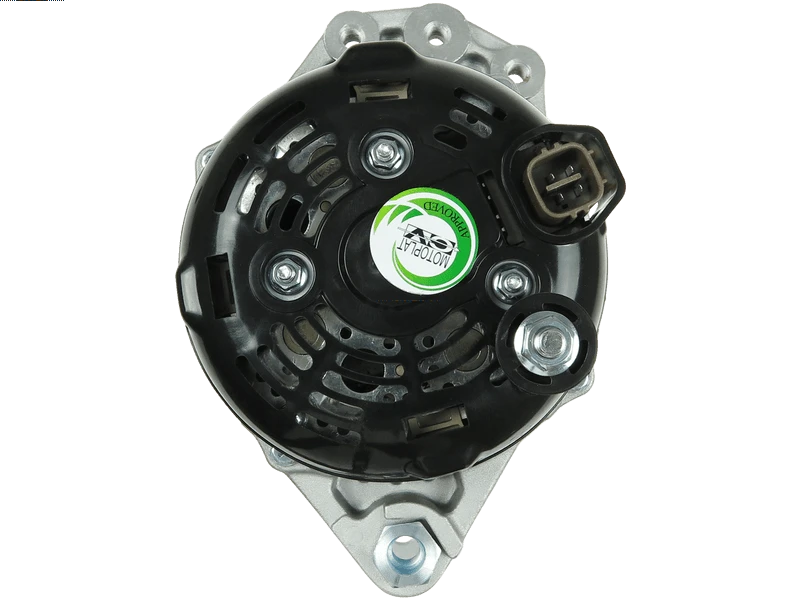

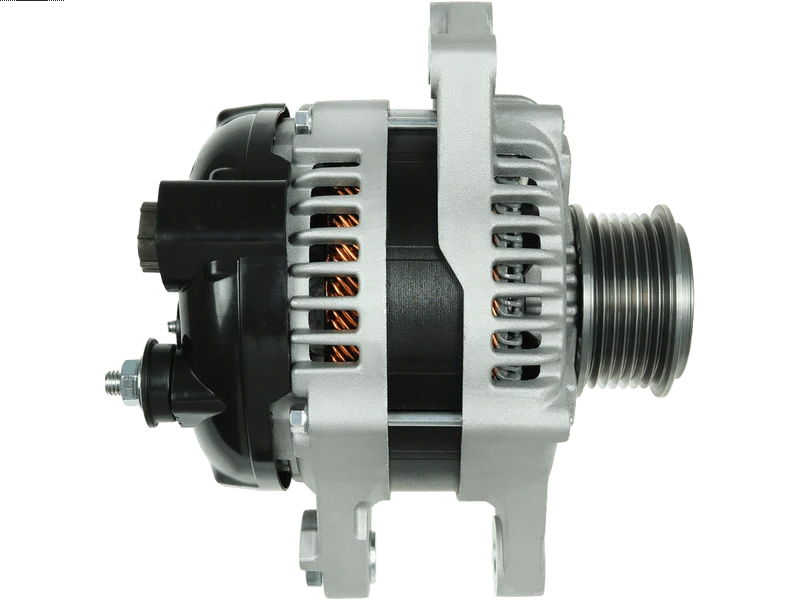

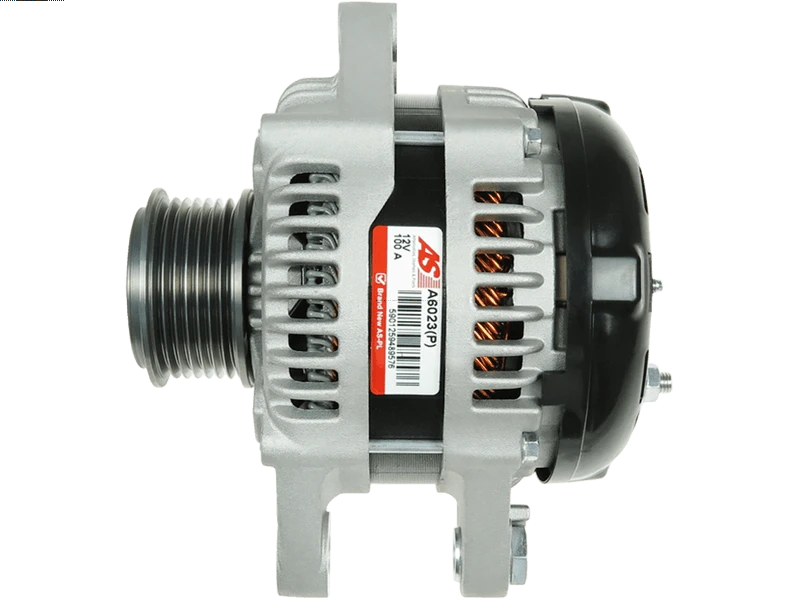

Brand new AS-PL Alternator with freewheel pulley
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 491.25 including GST
NZ$ 427.17 excluding GST
or four payments of $122.81
with
Learn More
each
A6023(P)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-3732Associated Numbers
063377520010 104210-3730 104210-3731 104210-3732 113970 12317790879 2040154 210675 23941N 23941R 27060-33050 27060-33051 28-5555 445.502.100 4851 553154RI 553154RID 57047 7790879 89214864 AG0332 ALN3970 ALT30344 CAL40154 CAL40154AS CAL40154ES CAL40154GS CAL40154OS CAL40154RS DA1344 DA1344N DENDAN981 DRA0234 DRA0234N GA103732-A LRA02941 LRA2941 MAN7520 RAA11345 UD02278ASpecifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41 mm |
| OEM Product | No |
| Plug Code | PL_4001 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MINI | One 1.4 D | [1ND] | 06.2003-09.2006 |
| MINI | One 1.4 D | [1ND-TV] | 06.2003-09.2006 |
Reference Information
| 063377520010 | MAGNETI MARELLI |
| 104210-3730 | DENSO |
| 104210-3731 | DENSO |
| 104210-3732 | DENSO |
| 113970 | CARGO |
| 12317790879 | BMW |
| 210675 | ERA |
| 23941N | WAI / TRANSPO |
| 23941R | WAI / TRANSPO |
| 27060-33050 | TOYOTA |
| 27060-33051 | TOYOTA |
| 28-5555 | ELSTOCK |
| 445.502.100 | PSH |
| 445.502.100.346 | PSH |
| 447181 | LOGISTIK |
| 4851 | CEVAM |
| 553154RI | KUHNER |
| 553154RID | KUHNER |
| 57047 | EAI |
| 7790879 | BMW |
| 89214864 | POWERMAX |
| A12DE0260A2 | SIDAT |
| A132.954 | PSH |
| A147.534 | PSH |
| A149.843 | PSH |
| A6023(P) | AS-PL |
| AG0332 | GHIBAUDI |
| ALN3970 | KRAUF |
| ALT30344 | WOODAUTO |
| ALT421540 | SIOM |
| ALT6178 | ELECTROLOG |
| ANM32454X | ANDEL |
| CGB-13732 | AINDE |
| DA1344 | DELCO |
| DA1344N | DELCO |
| DAN981 | DENSO |
| DENDAN981 | WOODAUTO |
| DRA0234 | DELCO |
| DRA0234N | DELCO |
| F032113970 | CARGO |
| GA103732-A | GPARTS |
| LRA02941 | LUCAS |
| LRA2941 | LUCAS |
| MAN7520 | MAGNETI MARELLI |
| RAA11345 | DELCO |
| STX101968 | STARDAX |
| UD02278A | AS-PL |
