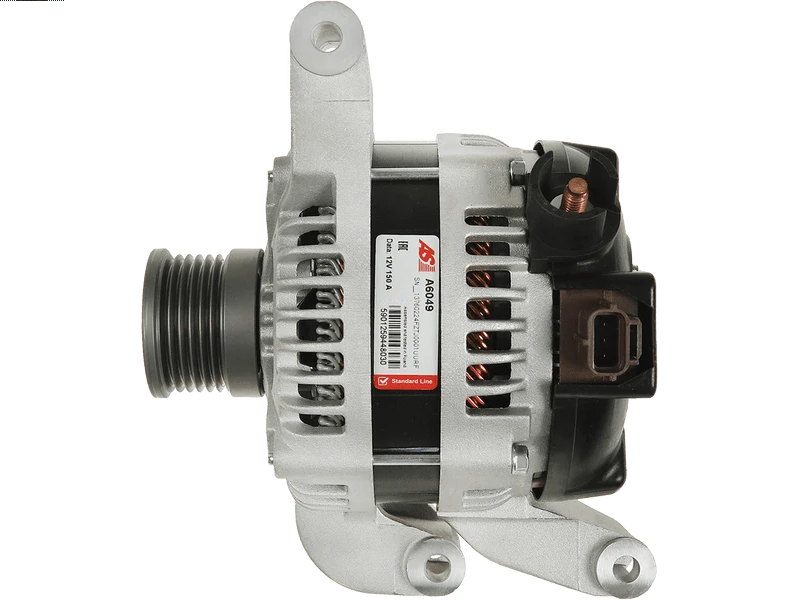

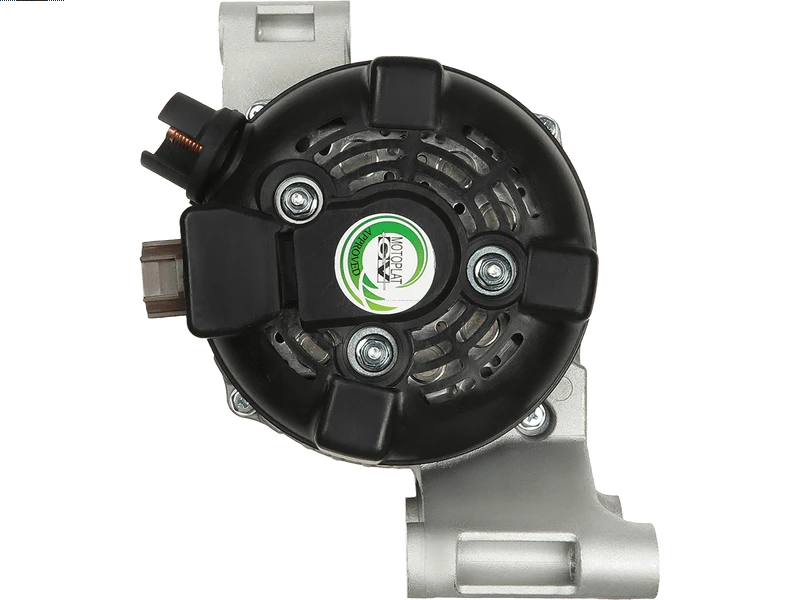

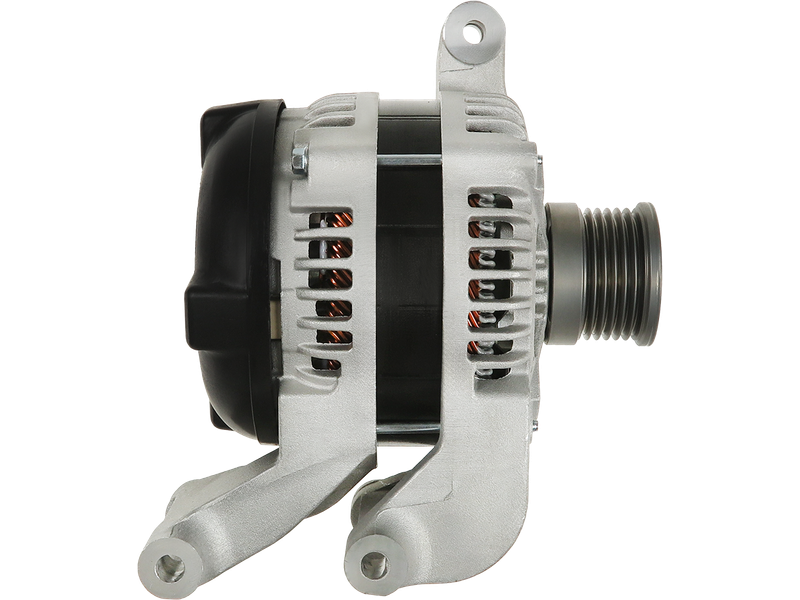

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 503.91 including GST
NZ$ 438.18 excluding GST
or four payments of $125.98
with
Learn More
each
A6049
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1042102750Associated Numbers
063377420000 063377420010 0986082590 104210-2750 104210-3821 104210-5770 11.1931 1633079 20132962OE 2040269 210441 24070N 27-5681 301931RID 30667072 30795495 30795495-AA 36002575 3M5T-10300-NB 3M5T-10300-NC 3M5T10300NB 3M5T10300NC 63377420 8603272 89212797 8EL738212-781 9090432 9212797 944390904320 AEK3069 ALT30194 CA1931IR CAL40269 CAL40269AS CAL40269ES CAL40269GS CAL40269OS CAL40269RS DAN934 DENDAN934 DRA0086 LRA03069 MAN7420 SB285Specifications
| Amp | 150 A |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 68.40 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 48 mm |
| Pad mount thickness (E.2) | 72 mm |
| Pad mount thickness (E.4) | 72 mm |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 76.40 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 2.0 | [AODA] | 11.2004- |
| FORD | Focus 2.0 | [AODB] | 11.2004- |
| FORD | Focus 2.0 i | [AODB] | 05.2005-03.2009 |
| FORD | Focus C-Max 2.0 | [AODA] | 04.2004-03.2007 |
| FORD | Focus C-Max 2.0 | [AODB] | 04.2004-03.2007 |
| FORD | Focus C-Max 2.0 | [SYDA] | 04.2004-03.2007 |
Reference Information
| 063377420000 | MAGNETI MARELLI |
| 063377420010 | MAGNETI MARELLI |
| 0986082590 | BOSCH |
| 104210-2750 | DENSO |
| 104210-3821 | DENSO |
| 104210-5770 | DENSO |
| 11.1931 | LAUBER |
| 114083 | CARGO |
| 1633079 | FORD |
| 20132962OE | REAL |
| 2040269 | SANDO |
| 210441 | ERA |
| 24070N | WAI / TRANSPO |
| 24070R | WAI / TRANSPO |
| 27-5681 | ELSTOCK |
| 301931RID | KUHNER |
| 30667072 | VOLVO |
| 30795495 | VOLVO |
| 30795495-AA | VOLVO |
| 30796495 | VOLVO |
| 36002575 | VOLVO |
| 3M5T10300NB | FORD |
| 3M5T-10300-NB | FORD |
| 3M5T10300NC | FORD |
| 3M5T-10300-NC | FORD |
| 442023 | LOGISTIK |
| 5540518 | MEAT & DORIA |
| 63377420 | MAGNETI MARELLI |
| 8603272 | VOLVO |
| 89212797 | POWERMAX |
| 8EL738212-781 | HELLA |
| 9090432 | FRIESEN |
| 9212797 | POWERMAX |
| 944390904320 | MAGNETI MARELLI |
| A12DE0155A2 | SIDAT |
| A6049 | AS-PL |
| AEK3069 | AUTOELECTRO |
| ALT30194 | WOODAUTO |
| ALT6137 | ELECTROLOG |
| ALTL598 | 3EFFE |
| ANM32306X | ANDEL |
| CA1931IR | HC PARTS |
| CAL40269 | CASCO |
| CAL40269AS | CASCO |
| CAL40269ES | CASCO |
| CAL40269GS | CASCO |
| CAL40269OS | CASCO |
| CAL40269RS | CASCO |
| DAN934 | DENSO |
| DENDAN934 | WOODAUTO |
| DRA0086 | DELCO |
| F032114083 | CARGO |
| LRA03069 | LUCAS |
| LRA3069 | LUCAS |
| MAN7420 | MAGNETI MARELLI |
| SB285 | SOVEREIGN |
| STX100839 | STARDAX |
| STX101632 | STARDAX |
| STX101899 | STARDAX |
Video/Publications
