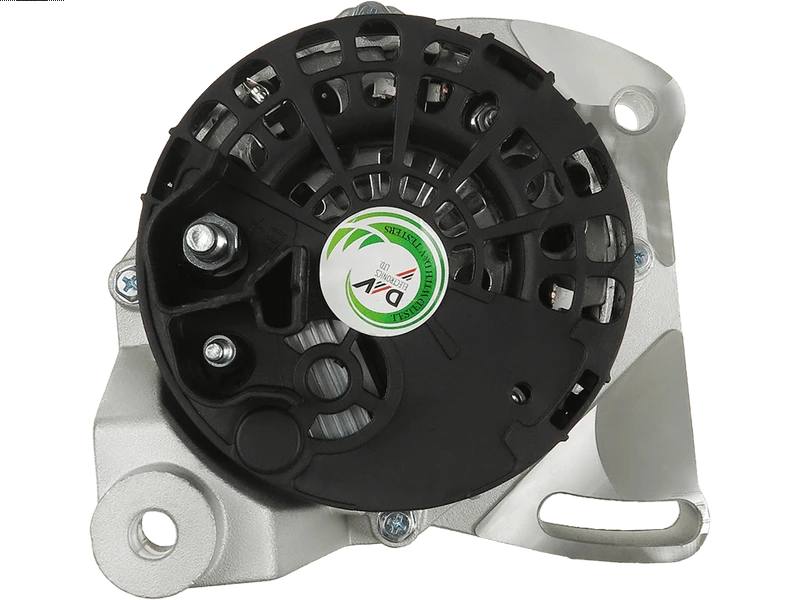

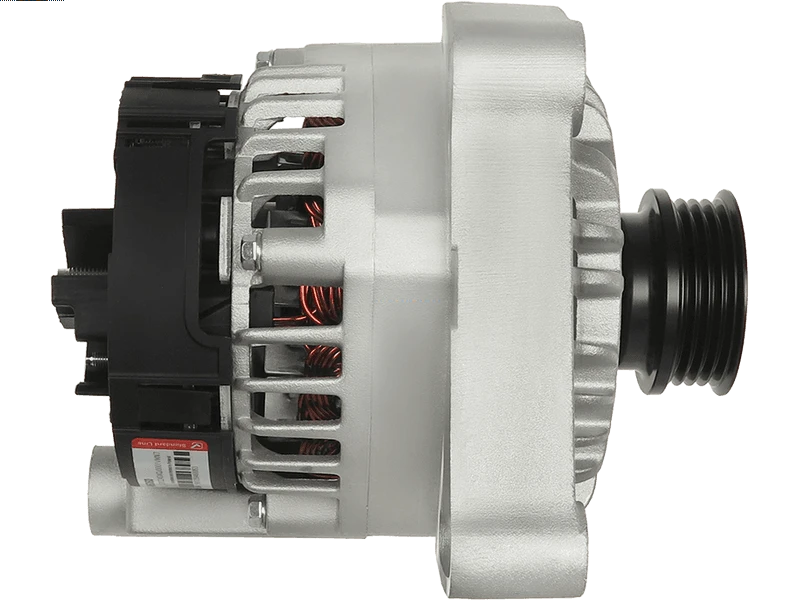

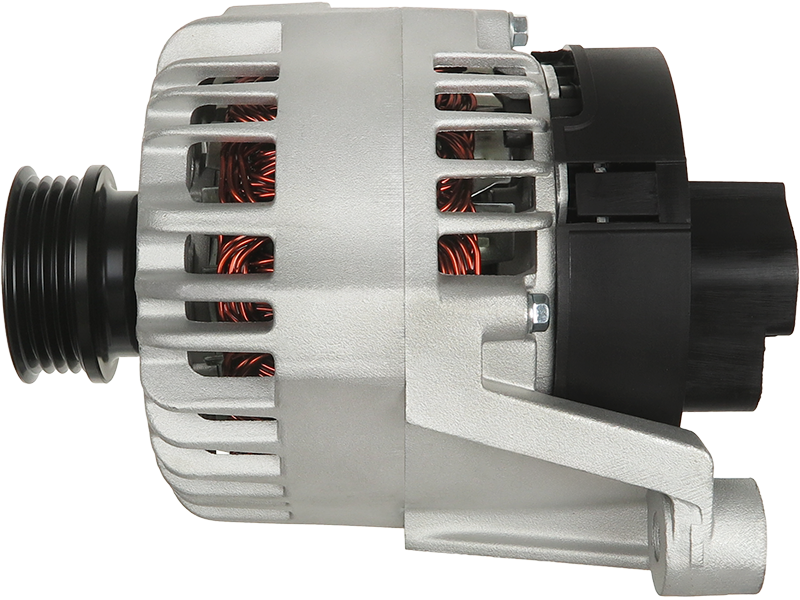

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 381.81 including GST
NZ$ 332.01 excluding GST
or four payments of $95.45
with
Learn More
each
A6060
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63377031Associated Numbers
063377031010 102211-8690 102211-8691 20104532OE 20144N 2030235 51727333 51859044 553746RI 63377031 CAL30235GS DAN1005 MAN7031Specifications
| Amp | 105 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 196 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 54.50 mm |
| Pulley to Mount Distance (A) | 69 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.2 | [169A4.000] | 10.2007- |
| FIAT | 500 1.3 D Multijet | [199B1.000] | 12.2009- |
| FIAT | 500 1.4 | [169A3.000] | 10.2007- |
| FIAT | 500 C 1.2 | [169A4.000] | 09.2009- |
| FIAT | 500 C 1.3 D Multijet | [199B1.000] | 09.2009- |
| FIAT | 500 C 1.4 | [169A3.000] | 09.2009- |
| FIAT | Punto Evo 1.4 | [350A1.000] | 10.2009- |
| FIAT | Punto Evo 1.4 16V | [955A6.000] | 10.2009- |
Reference Information
| 063377031010 | MAGNETI MARELLI |
| 102211-8690 | DENSO |
| 102211-8691 | DENSO |
| 1673520 | FORD |
| 1719535 | FORD |
| 20104532BN | REAL |
| 20104532OE | REAL |
| 20144N | WAI / TRANSPO |
| 2030235 | SANDO |
| 2030235.0 | SANDO |
| 2030235.1 | SANDO |
| 210743 | ERA |
| 28-6596 | ELSTOCK |
| 51727333 | FIAT |
| 51859042 | FIAT |
| 51859044 | FIAT |
| 52003538 | FIAT |
| 553746RI | KUHNER |
| 63377031 | MAGNETI MARELLI |
| 71784509 | FIAT |
| 71796304 | FIAT |
| 71799093 | FIAT |
| 9S5110346AB | FORD |
| A6060 | AS-PL |
| ALT2065 | ROLLCO |
| ALT6510 | ELECTROLOG |
| ALTL815 | 3EFFE |
| BS5110346AA | FORD |
| CAL30235AS | CASCO |
| CAL30235GS | CASCO |
| DAN1005 | DENSO |
| LRA03486 | LUCAS |
| LRA3486 | LUCAS |
| MAN7031 | MAGNETI MARELLI |
| STX100032 | STARDAX |
| STX100032R | STARDAX |
| UD103482A | AS-PL |
Video/Publications
A6060View your shopping basket or Browse other items in Alternators.
