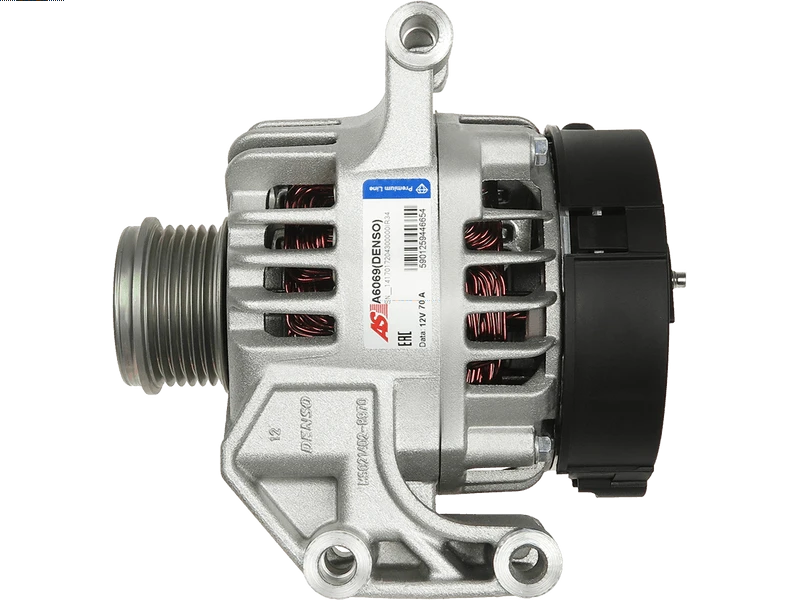

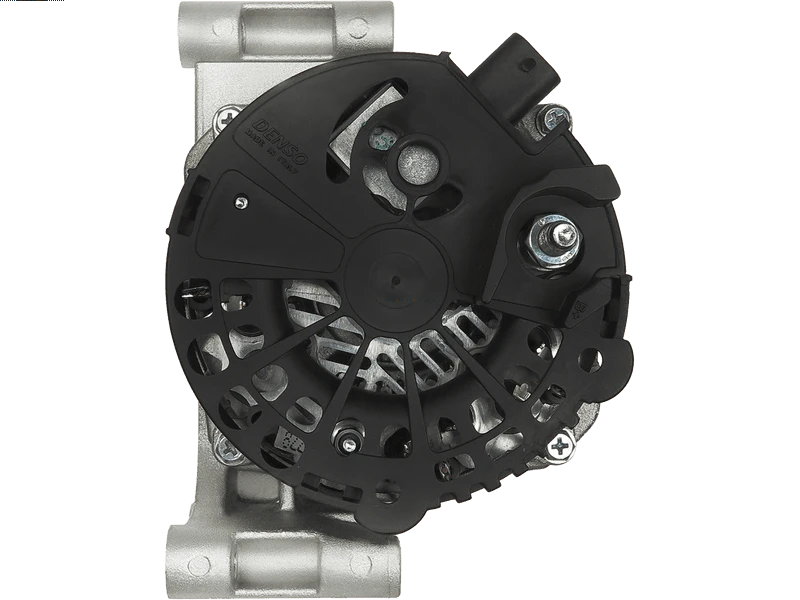

Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 839.45 including GST
NZ$ 729.96 excluding GST
or four payments of $209.86
with
Learn More
each
A6069(DENSO)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
DAN583Associated Numbers
101210-0950 101210-0951 101210-09513E 1204426 13222934 13256933 24063R 28-5676 301955RI 301955RIM 32118960 6204257 63377423 AEK3065 ALT30197 CA1955IR DAN583 EAA-222252 LRA03064 MAN7423Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 64 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 193.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | Yes |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Pad mount thickness (E.3) | 64 mm |
| Plug Code | PL_2200 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Agila 1.3 CDTi | [Z13DT] | 08.2003- |
| OPEL | Agila 1.3 CDTi | [Z13DTJ] | 05.2008- |
| OPEL | Astra H 1.3 CDTi | [Z13DTH] | 08.2005- |
| OPEL | Corsa C 1.3 CDTi | [Z13DT] | 07.2003- |
| OPEL | Corsa C 1.3 CDTi 16V | [Z13DT] | 08.2005- |
| OPEL | Corsa D 1.3 CDTi | [Z13DTH] | 08.2006- |
| OPEL | Corsa D 1.3 CDTi | [Z13DTJ] | 08.2006- |
| OPEL | Meriva 1.3 CDTi | [Z13DT] | 04.2005-05.2010 |
| OPEL | Tigra 1.3 CDTi | [Z13DT] | 06.2004- |
| VAUXHALL | Agila 1.3 CDTi | [Z13DTJ] | 01.2008- |
| VAUXHALL | Corsa 1.3 CDTi 16V | [Z13DTH] | 07.2006- |
| VAUXHALL | Corsa 1.3 CDTi 16V | [Z13DTJ] | 07.2006- |
Reference Information
| 0986081070 | BOSCH |
| 101210-0950 | DENSO |
| 101210-0951 | DENSO |
| 101210-09513E | DENSO |
| 114895 | CARGO |
| 1204426 | OPEL |
| 1204429 | OPEL |
| 1204432 | OPEL |
| 13222934 | OPEL |
| 13256930 | OPEL |
| 13256933 | OPEL |
| 135.556.070.050 | PSH |
| 135.556.070.260 | PSH |
| 20104602BN | REAL |
| 20104602OE | REAL |
| 2030206.0 | SANDO |
| 2030206.1 | SANDO |
| 210734 | ERA |
| 24063N | WAI / TRANSPO |
| 24063R | WAI / TRANSPO |
| 28-5676 | ELSTOCK |
| 301955RI | KUHNER |
| 301955RIM | KUHNER |
| 443084 | VALEO |
| 4861 | CEVAM |
| 57454 | EAI |
| 6204257 | OPEL |
| 6204281 | OPEL |
| 6204664 | OPEL |
| 63377423 | MAGNETI MARELLI |
| 89213627 | POWERMAX |
| 8EL011712-541 | HELLA |
| 943319551010 | MAGNETI MARELLI |
| 95519869 | VAUXHALL |
| 95520872 | OPEL |
| ALT30197 | WOODAUTO |
| ALT363CP | ROLLCO |
| ALT6247 | ELECTROLOG |
| ALTL798 | 3EFFE |
| CA1955IR | HC PARTS |
| CAL30206AS | CASCO |
| CAL30206GS | CASCO |
| DAN583 | DENSO |
| F032114895 | CARGO |
| LRA03064 | LUCAS |
| LRA3064 | LUCAS |
| MAN7423 | MAGNETI MARELLI |
| PRAL798 | 3EFFE |
| STX100616 | STARDAX |
Video/Publications
A6069(DENSO)Related Items
