Information
DAN599Associated Numbers
102211-8480 102211-84803E 102211-8481 28-5707 301998RI 301998RIM 51714792 63377007 AEK3377 DAN599 LRA03095Specifications
Amp | 105 A |
Bottom Mounting Foot Width (B) | 24.5 mm |
Diameter (D.1) | 8.50 mm |
Diameter (D.2) | 8.50 mm |
Diameter (D.3) | 8 mm |
Length (L.1) | 185 mm |
Mount Inside Length or Pad Mount C-C (C) | 50 mm |
OEM Product | Yes |
Pad mount thickness (E.1) | 25 mm |
Pad mount thickness (E.2) | 24 mm |
Pad mount thickness (E.3) | 24 mm |
Plug Code | PL_9104 |
Product Line | Premium Line |
Product Type | Brand new |
Pulley Grooves | 5 qty |
Pulley Outside Diameter (O.D.1) | 54 mm |
Pulley to Mount Distance (A) | 20 mm |
Pulley Type | Solid |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
FIAT | Bravo 1.4 | [192B2.000] | 04.2007- |
FIAT | Linea 1.4 | [350A1.000] | 07.2007- |
Reference Information
102211-8480 | DENSO |
102211-84803E | DENSO |
102211-8481 | DENSO |
210660 | ERA |
28-5707 | ELSTOCK |
301998RI | KUHNER |
301998RIM | KUHNER |
46758246 | FIAT |
51709132 | FIAT |
51714792 | FIAT |
51859039 | FIAT |
52003533 | FIAT |
63377007 | MAGNETI MARELLI |
71784277 | FIAT |
71794100 | FIAT |
AEK3377 | AUTOELECTRO |
ALT90030 | ELECTROLOG |
DAN599 | DENSO |
LRA03095 | LUCAS |
LRA3095 | LUCAS |
Video/Publications

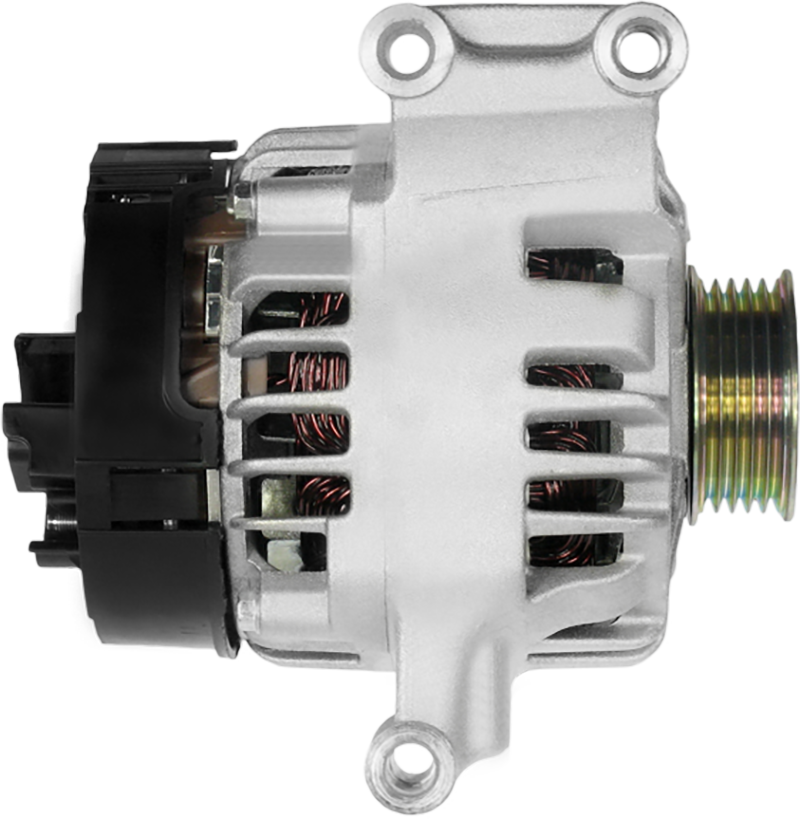

A6070(DENSO)View your shopping basket or Browse other items in Alternators.
