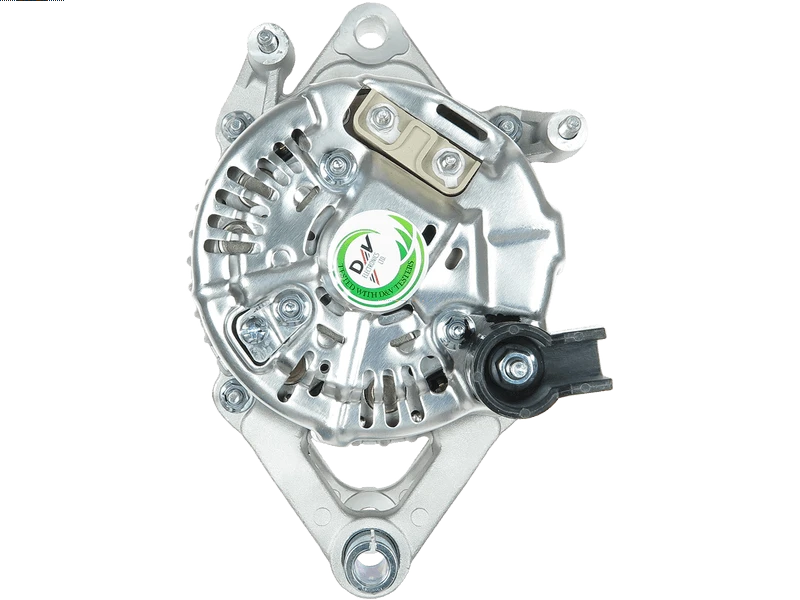

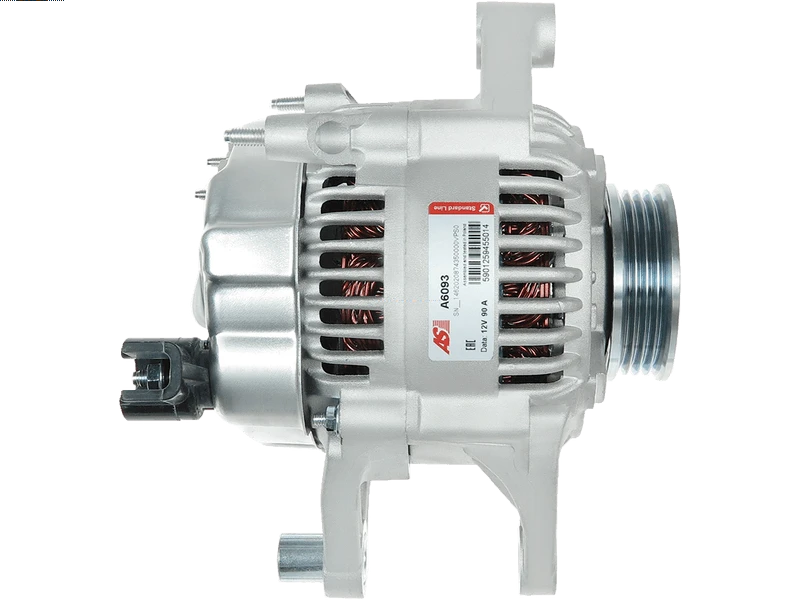

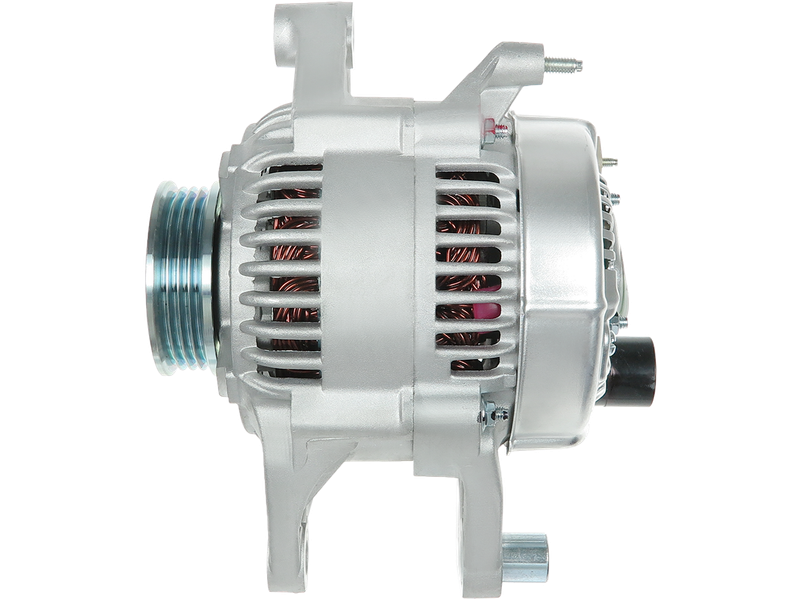

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 328.38 including GST
NZ$ 285.55 excluding GST
or four payments of $82.10
with
Learn More
each
A6614S
A6093
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Information
1210003380Associated Numbers
0986080630 1-1503-00ND 1-1503-02ND 1-1507-01ND 1-1507-02ND 1-1510-01ND 1-1527-03ND 11.0960 11.0960M 111193 121000-3340 121000-3380 121000-3381 121000-3410 121000-3420 121000-3440 121000-3442 13184N 13245N 13245R 13306N 13341N 13353N 20132272BN 2040272 27-2569 290-256C 290-257 290-257A 290-257B 290-275 290-275A 290-275B 290-275D 290-302 4556 50960 5233416 5233718 5234026 5234027 5234031 56005684 56319 9090081 9213562 A6093 ALT5066 CAL40272AS DRZ0170 DRZ0185 EAA-222440 UA960
65-8347 anj016 dxa488
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 180.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_9102 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 65 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Cherokee 4.0 AWD | 09.1992-04.1999 | |
| CHRYSLER | Grand Cherokee 5.2 AWD | 01.1998-04.1999 | |
| CHRYSLER | Lebaron 2.2 i | [EDG] | 01.1990-12.1990 |
| CHRYSLER | Lebaron 2.2 Turbo GTC | 01.1990-12.1990 | |
| CHRYSLER | Lebaron 2.5 | 01.1992- | |
| CHRYSLER | Lebaron 2.5 Landau | 01.1992- | |
| CHRYSLER | Lebaron 2.5 LE | 01.1993- | |
| CHRYSLER | Lebaron 2.5 Turbo GTC | 01.1990-01.1992 | |
| CHRYSLER | Voyager 3.0 | [EFA] | 10.1990-09.1995 |
| CHRYSLER | Voyager 3.0 i | [300] | 01.1990-01.1993 |
| CHRYSLER | Voyager 3.0 i | [6G72] | 01.1990-01.1993 |
| CHRYSLER | Voyager 3.3 i LE | [EGA] | 04.1992-09.1995 |
| CHRYSLER | Voyager 3.3 i LE AWD | [EGA] | 04.1992-09.1995 |
| CHRYSLER | Voyager 3.3 i LE AWD | [R00] | 04.1992-09.1995 |
| DODGE | B150 3.9 | 01.1988-01.1994 | |
| DODGE | B150 3.9 Sportsman | 01.1988-01.1994 | |
| DODGE | B150 5.2 | 01.1988-01.1994 | |
| DODGE | B150 5.2 Sportsman | 01.1988-01.1994 | |
| DODGE | B250 3.9 | 01.1988-01.1994 | |
| DODGE | B250 3.9 Sportsman | 01.1988-01.1994 | |
| DODGE | B250 5.2 | 01.1988-01.1994 | |
| DODGE | B250 5.2 Sportsman | 01.1988-01.1994 | |
| DODGE | B250 5.9 | 01.1988-01.1994 | |
| DODGE | B250 5.9 Sportsman | 01.1990-01.1994 | |
| DODGE | B350 5.2 | 01.1988-01.1994 | |
| DODGE | B350 5.2 Sportsman | 01.1988-01.1994 | |
| DODGE | B350 5.9 | 01.1988-01.1994 | |
| DODGE | B350 5.9 Sportsman | 01.1988- | |
| DODGE | Caravan 2.5 | 01.1992-01.1995 | |
| DODGE | Caravan 2.5 C/V | 01.1992-01.1995 | |
| DODGE | Caravan 2.5 SE | 01.1992-01.1993 | |
| DODGE | D100 3.9 | 01.1988-01.1989 | |
| DODGE | D100 5.2 | 01.1988-01.1989 | |
| DODGE | D100 5.9 | 01.1988-12.1988 | |
| DODGE | D150 3.9 | 01.1988-01.1990 | |
| DODGE | D150 5.2 | 01.1988-01.1990 | |
| DODGE | D150 5.9 | 01.1988-01.1990 | |
| DODGE | D250 3.9 | 01.1988-01.1990 | |
| DODGE | D250 5.2 | 01.1988-01.1990 | |
| DODGE | D250 5.9 | 01.1988-01.1990 | |
| DODGE | D350 5.9 | 01.1988-01.1990 | |
| DODGE | Dakota 2.5 | 01.1991-01.1996 | |
| DODGE | Dakota 3.9 | 01.1988-01.1990 | |
| DODGE | Dakota 3.9 Sport | 01.1988-01.1990 | |
| DODGE | Daytona 2.2 Turbo | 01.1990-12.1990 | |
| DODGE | Daytona 2.2 Turbo Iroc R/T | 01.1992-01.1993 | |
| DODGE | Daytona 2.2 Turbo Shelby | 01.1990-12.1990 | |
| DODGE | Daytona 2.5 | 01.1990-01.1993 | |
| DODGE | Daytona 2.5 ES | 01.1992-01.1993 | |
| DODGE | Daytona 2.5 Turbo Iroc | 01.1991-01.1992 | |
| DODGE | Dynasty 2.5 | 01.1992-01.1993 | |
| DODGE | Ramcharger 5.2 | 01.1988-01.1990 | |
| DODGE | Ramcharger 5.9 | 01.1988-01.1990 | |
| DODGE | Shadow 2.2 | 01.1990-01.1994 | |
| DODGE | Shadow 2.2 America | 01.1991-01.1992 | |
| DODGE | Shadow 2.2 Turbo | 01.1990-12.1990 | |
| DODGE | Shadow 2.5 | 01.1992-01.1994 | |
| DODGE | Shadow 2.5 America | 01.1992-12.1992 | |
| DODGE | Shadow 2.5 ES | 01.1991-01.1994 | |
| DODGE | Shadow 2.5 Turbo | 01.1992-12.1992 | |
| DODGE | Spirit 2.2 Turbo R/T | 01.1991-01.1992 | |
| DODGE | Spirit 2.5 | 01.1992-01.1995 | |
| DODGE | Spirit 2.5 | 01.1993-01.1994 | |
| DODGE | Spirit 2.5 ES | 01.1993-12.1993 | |
| DODGE | Spirit 2.5 LE | 01.1992-12.1992 | |
| DODGE | Spirit 2.5 Turbo ES | 01.1992-12.1992 | |
| DODGE | Spirit 2.5 Turbo LE | 01.1992-12.1992 | |
| DODGE | W100 3.9 | 01.1989-12.1989 | |
| DODGE | W100 5.2 | 01.1988-01.1989 | |
| DODGE | W100 5.9 | 01.1988-12.1988 | |
| DODGE | W150 3.9 | 01.1989-01.1990 | |
| DODGE | W150 5.2 | 01.1988-01.1990 | |
| DODGE | W150 5.9 | 01.1988-01.1990 | |
| DODGE | W250 5.2 | 01.1988-01.1990 | |
| DODGE | W250 5.9 | 01.1988-01.1990 | |
| DODGE | W350 5.9 | 01.1988-01.1990 | |
| JEEP | Cherokee 2.5 i | [EPE] | 12.1991-05.2002 |
| JEEP | Cherokee 2.5 i | [HX] | 12.1991-01.1998 |
| JEEP | Cherokee 4.0 i | [ERH] | 01.1991-04.2001 |
| JEEP | Cherokee 4.0 i | [MX] | 12.1991-08.1996 |
| JEEP | Grand Cherokee 4.0 i | [MX] | 09.1991-04.1999 |
| JEEP | Grand Cherokee 4.0 i | [S01] | 10.1995-04.1999 |
| JEEP | Grand Cherokee 5.2 | [Y01] | 10.1995-04.1999 |
| JEEP | Grand Cherokee 5.2 i | [Y] | 01.1992-04.1999 |
| JEEP | Wrangler 2.5 | [P00] | 01.1991-01.1998 |
| JEEP | Wrangler 4.0 | [S01] | 12.1991-01.1998 |
| PLYMOUTH | Acclaim 2.5 | 01.1992-01.1995 | |
| PLYMOUTH | Sundance 2.2 | 01.1990-01.1994 | |
| PLYMOUTH | Sundance 2.2 America | 01.1991-01.1992 | |
| PLYMOUTH | Sundance 2.5 | 01.1992-01.1994 | |
| PLYMOUTH | Sundance 2.5 America | 01.1992-12.1992 | |
| PLYMOUTH | Sundance 2.5 Duster | 01.1992-01.1994 | |
| PLYMOUTH | Sundance 2.5 RS | 01.1991-12.1991 | |
| PLYMOUTH | Sundance 2.5 Turbo RS | 01.1991-12.1991 | |
| PLYMOUTH | Voyger 2.5 | 01.1992-01.1995 | |
| PLYMOUTH | Voyger 2.5 LE | 01.1990-01.1991 | |
| PLYMOUTH | Voyger 2.5 SE | 01.1990-01.1993 |
Alternatives >>>
A6614S Has 6 grove Pulley
Reference Information
| 04557301 | CHRYSLER |
| 05234028 | CHRYSLER |
| 05234029 | CHRYSLER |
| 05234029 | DODGE |
| 05234032 | DODGE |
| 05234032 | CHRYSLER |
| 0986080630 | BOSCH |
| 11.0960 | LAUBER |
| 11.0960M | LAUBER |
| 111193 | CARGO |
| 121000-3340 | DENSO |
| 121000-3380 | DENSO |
| 121000-3381 | DENSO |
| 121000-3410 | DENSO |
| 121000-3420 | DENSO |
| 121000-3440 | DENSO |
| 121000-3442 | DENSO |
| 13245N | WAI / TRANSPO |
| 13245R | WAI / TRANSPO |
| 20132272BN | REAL |
| 2040272 | SANDO |
| 27-2569 | ELSTOCK |
| 290-256C | PIC |
| 290-257 | PIC |
| 290-257A | PIC |
| 290-257B | PIC |
| 290-275 | PIC |
| 290-275A | PIC |
| 290-275B | PIC |
| 290-275D | PIC |
| 290-302 | PIC |
| 448093 | LOGISTIK |
| 4556 | CEVAM |
| 4557301 | CHRYSLER |
| 50960 | KUHNER |
| 5233416 | CHRYSLER |
| 5233718 | CHRYSLER |
| 5234026 | CHRYSLER |
| 5234027 | CHRYSLER |
| 5234028 | CHRYSLER |
| 5234029 | CHRYSLER |
| 5234029 | PLYMOUTH |
| 5234029 | DODGE |
| 5234031 | CHRYSLER |
| 5234032 | CHRYSLER |
| 5234032 | DODGE |
| 53008647 | CHRYSLER |
| 5540827 | MEAT & DORIA |
| 56005585 | CHRYSLER |
| 56005684 | CHRYSLER |
| 56005685 | CHRYSLER |
| 56005685 | DODGE |
| 56005685AB | CHRYSLER |
| 56027912 | CHRYSLER |
| 56027912 | DODGE |
| 56319 | EAI |
| 9090081 | FRIESEN |
| 9213562 | POWERMAX |
| A0091544202 | MERCEDES |
| A12DE0603A2 | SIDAT |
| A6093 | AS-PL |
| ALT421180 | SIOM |
| ALT5066 | WOODAUTO |
| ALT5860 | SIOM |
| ALT6745 | ELECTROLOG |
| ALTL741 | 3EFFE |
| CAL40272AS | CASCO |
| CGB-13788 | AINDE |
| DRZ0170 | DELCO |
| DRZ0185 | DELCO |
| F032111193 | CARGO |
| RL005685AB | CHRYSLER |
| RL005685AB | DODGE |
| STX100379 | STARDAX |
| STX100379R | STARDAX |
| STX100403 | STARDAX |
| STX100403R | STARDAX |
| UA960 | HC PARTS |
Video/Publications
