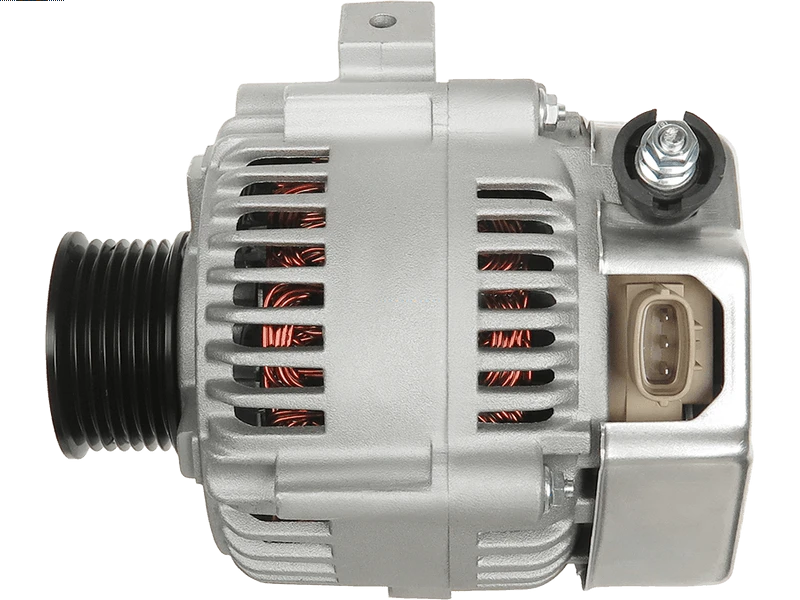

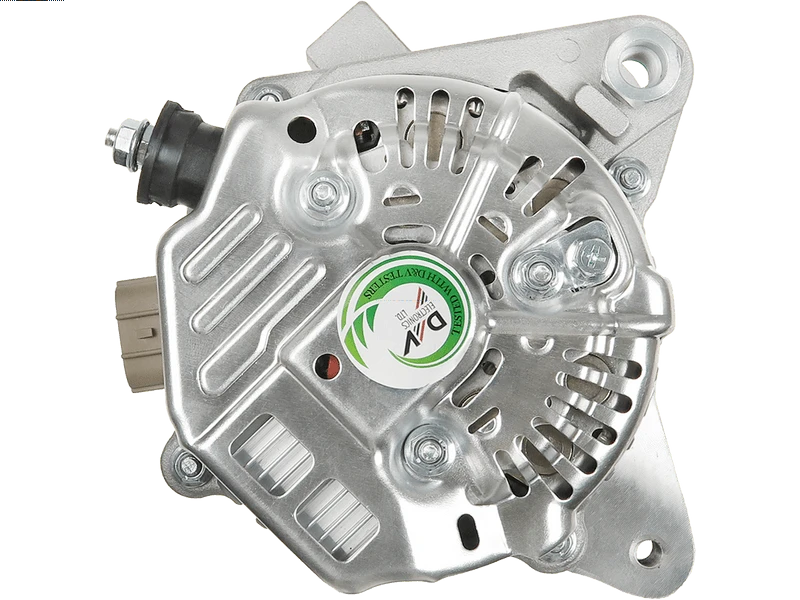

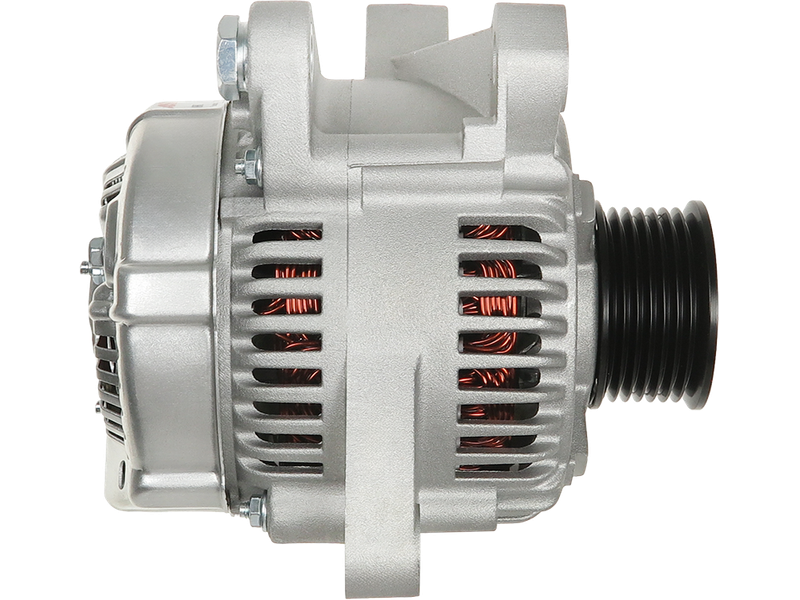

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 377.59 including GST
NZ$ 328.34 excluding GST
or four payments of $94.40
with
Learn More
each
A6102
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1022112120Associated Numbers
063377434 063377434010 102211-2120 102211-2250 11.1792 11.1792M 114186 13957N 13957RW 13959N 20132453BN 20132453OE 2040354 27060-28110 27060-28120 28-4679 401792RI 57185 8EL738211-751 9213381 9324 AEK2210 ALT30349 CAL40354AS CAL40354GS DRA4274 EAA-222113 JA1792IR LRA02210Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 171 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.50 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 70 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | RAV4 2.0 4WD | [1AZ-FE] | 06.2006- |
| TOYOTA | RAV4 2.0 i | [1AZ-FE] | 01.2000- |
Reference Information
| 063377434 | MAGNETI MARELLI |
| 063377434010 | MAGNETI MARELLI |
| 102211-2120 | DENSO |
| 102211-2250 | DENSO |
| 11.1792 | LAUBER |
| 11.1792M | LAUBER |
| 114186 | CARGO |
| 13957N | WAI / TRANSPO |
| 13957RW | WAI / TRANSPO |
| 195.557.090.050 | PSH |
| 195.557.090.260 | PSH |
| 20132453BN | REAL |
| 20132453OE | REAL |
| 2040354 | SANDO |
| 209384 | ERA |
| 27060-0H010 | TOYOTA |
| 27060-28110 | TOYOTA |
| 270602811084 | TOYOTA |
| 27060-28110-84 | TOYOTA |
| 27060-28120 | TOYOTA |
| 27060-28170 | TOYOTA |
| 27060-28180 | TOYOTA |
| 28-4679 | ELSTOCK |
| 401792RI | KUHNER |
| 446007 | LOGISTIK |
| 57185 | EAI |
| 8EL738211-751 | HELLA |
| 9213381 | POWERMAX |
| 9324 | CEVAM |
| A131.418 | PSH |
| A148.273 | PSH |
| A6102 | AS-PL |
| AEK2210 | AUTOELECTRO |
| ALT30349 | WOODAUTO |
| ALT6092 | ELECTROLOG |
| ALTE435 | 3EFFE |
| ANM36494X | ANDEL |
| CAL40354AS | CASCO |
| CAL40354GS | CASCO |
| DAN951 | DENSO |
| DRA4274 | DELCO |
| F032114186 | CARGO |
| JA1792IR | HC PARTS |
| LRA02210 | LUCAS |
| LRA2210 | LUCAS |
| STX100359 | STARDAX |
| STX100359R | STARDAX |
| STX100669 | STARDAX |
Video/Publications
A6102Related Items
