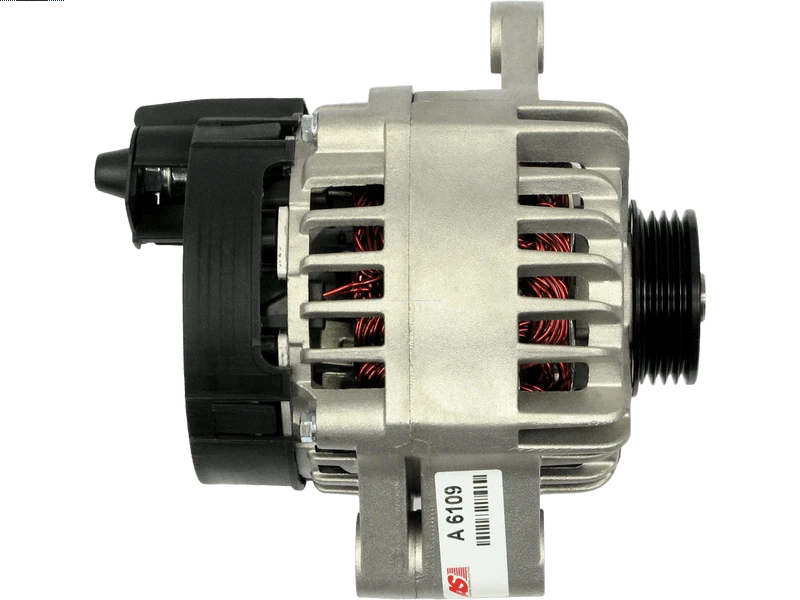

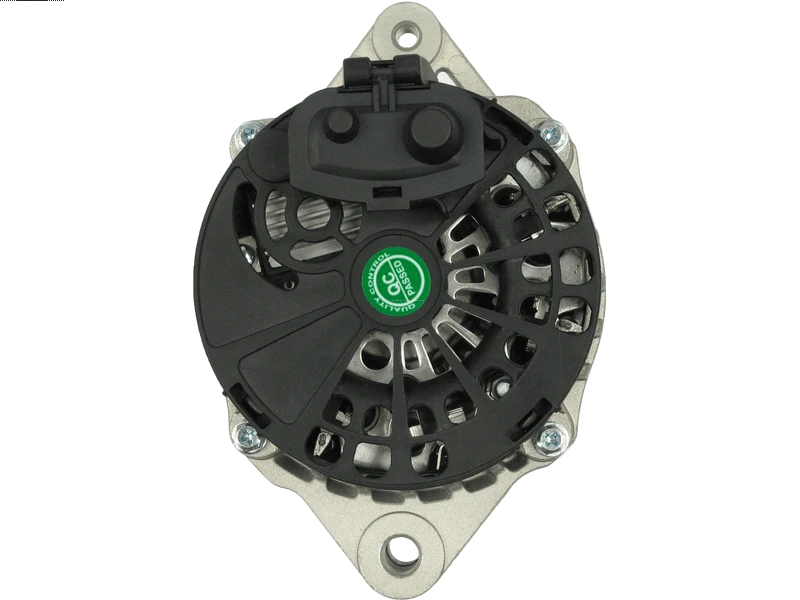

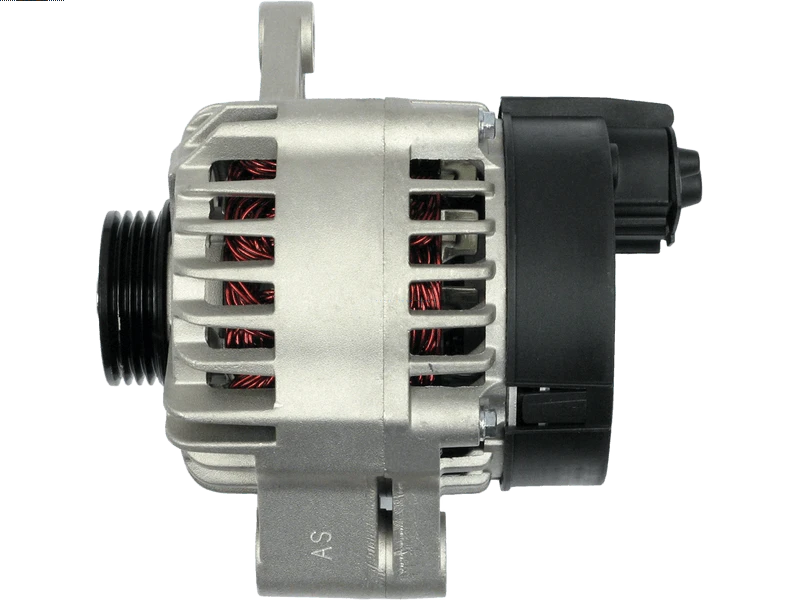

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 369.87 including GST
NZ$ 321.63 excluding GST
or four payments of $92.47
with
Learn More
each
A6109
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1022118560Associated Numbers
102211-8560 1022118560 11.2077 11.2077M 11.3279 114023 23933N 28-5547 31400-86G00 553084RI 63377480 89214903 9090722 9395 A6109 AEK2933 ALT30362 CA2077IR DRA0387 EAA-222128 LRA02933 SB361Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 57 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 191 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 88 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | G3X Justy 1.3 | [M13A] | 01.2003- |
| SUBARU | Justy 1.3 | 01.2003- | |
| SUBARU | Justy 1.5 | [M15A] | 01.2003- |
| SUZUKI | Ignis 1.3 | [M13A] | 01.2003- |
| SUZUKI | Ignis 1.3 i | [M13A] | 01.2003- |
| SUZUKI | Ignis 1.3 i 4x4 | [M13A] | 01.2003- |
| SUZUKI | Ignis 1.5 | [M15A] | 01.2003- |
| SUZUKI | Ignis 1.5 4x4 | [M15A] | 01.2003- |
Reference Information
| 102211-8560 | DENSO |
| 11.2077 | LAUBER |
| 11.2077M | LAUBER |
| 11.3279 | LAUBER |
| 114023 | CARGO |
| 185.513.070.050 | PSH |
| 185.513.070.265 | PSH |
| 185.513.070.410 | PSH |
| 20104791BN | REAL |
| 20104791OE | REAL |
| 20104791RC | REAL |
| 2030197.0 | SANDO |
| 2030197.1 | SANDO |
| 2030197.2 | SANDO |
| 23933N | WAI / TRANSPO |
| 28-5547 | ELSTOCK |
| 31400-86G00 | SUZUKI |
| 445939 | LOGISTIK |
| 553084RI | KUHNER |
| 63377480 | MAGNETI MARELLI |
| 89214903 | POWERMAX |
| 9090722 | FRIESEN |
| 9395 | CEVAM |
| A6109 | AS-PL |
| AAL1867 | APEC |
| AEK2933 | AUTOELECTRO |
| ALT30362 | WOODAUTO |
| ALT321970 | SIOM |
| ALT9056 | ELECTROLOG |
| ALTS853 | 3EFFE |
| ANM32607X | ANDEL |
| CA2077IR | HC PARTS |
| CAL30197AS | CASCO |
| CAL30197GS | CASCO |
| CAL30197RS | CASCO |
| DRA0387 | DELCO |
| F032114023 | CARGO |
| LRA02933 | LUCAS |
| LRA2933 | LUCAS |
| NPANAL1867 | NAPA |
| PRAS853 | 3EFFE |
| RNL102211-8560 | RNL |
| SB361 | SOVEREIGN |
| STX100833 | STARDAX |
Video/Publications
A6109View your shopping basket or Browse other items in Alternators.
