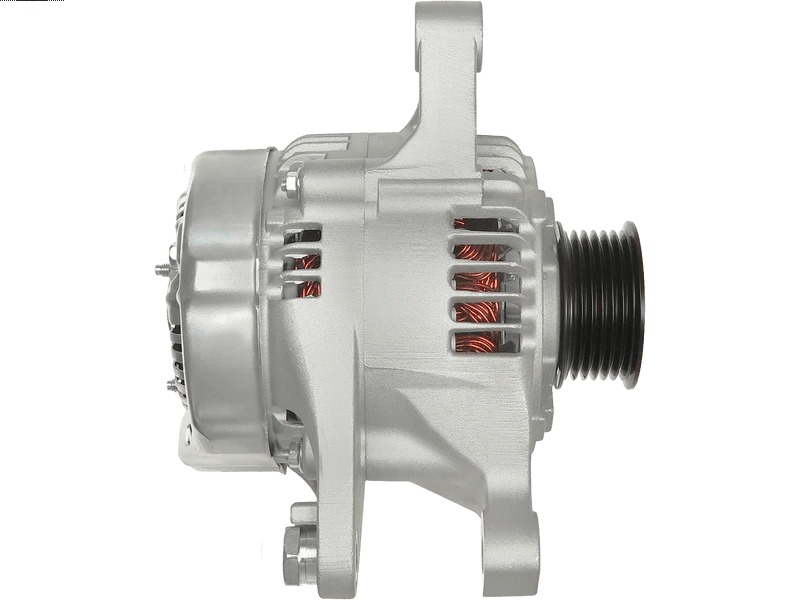

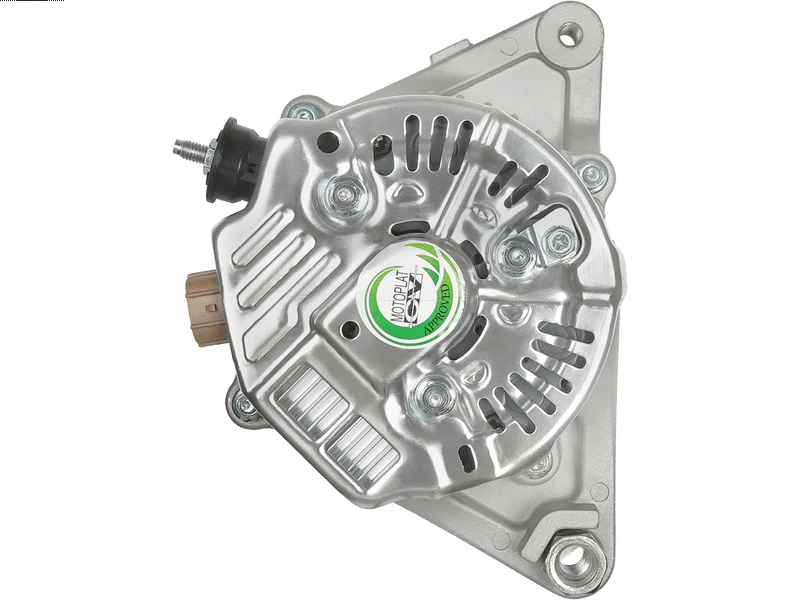

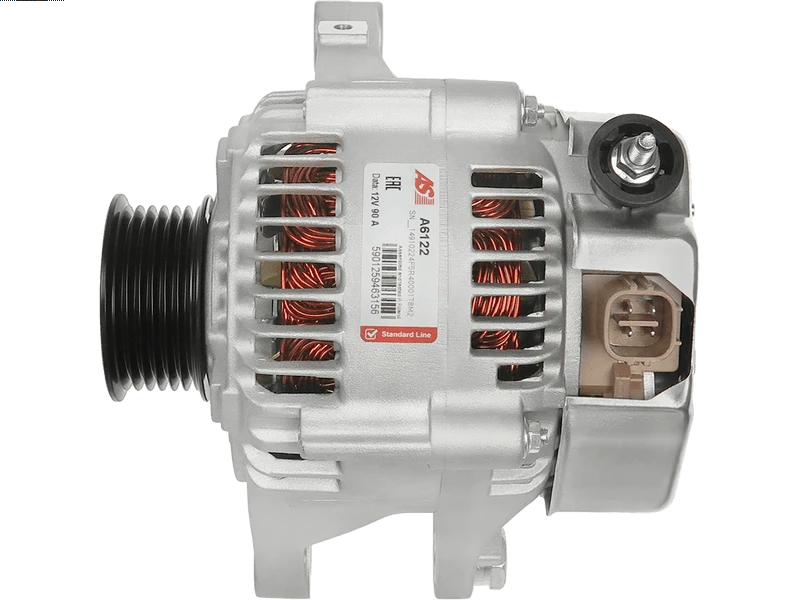

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 470.19 including GST
NZ$ 408.86 excluding GST
or four payments of $117.55
with
Learn More
each
A6122
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
102211-9270Associated Numbers
0124325079 0986046110 101210-0890 102211-8500 102211-9270 104210-8060 20130220 270600-D140 270600-D170 270602-2230 28-5520 401894RI 401894RID AEB1894 ALT30484 EAA-222199 LRA02906Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 22.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40.30 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 57.25 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.4 | [4ZZ-FE] | 03.2007-09.2012 |
| TOYOTA | Avensis 1.6 VVTi | 04.2003- | |
| TOYOTA | Avensis 1.6 VVT-i | [3ZZ-FE] | 04.2003-11.2008 |
| TOYOTA | Avensis 1.8 | [1ZZ-FE] | 03.2003-10.2008 |
| TOYOTA | Avensis 1.8 | [1ZZ-FE] | 04.2003-11.2008 |
| TOYOTA | Avensis 1.8 | 04.2003- | |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 01.2002-02.2007 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 10.2001-10.2006 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 11.2001-02.2007 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 11.2006-11.2013 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 01.2002-08.2007 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 01.2002-12.2006 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 10.2001-03.2008 |
| TOYOTA | Corolla 1.8 | [2ZR-FE] | 10.2006-07.2014 |
| TOYOTA | Corolla Verso 1.6 | [3ZZ-FE] | 04.2004-03.2009 |
| TOYOTA | Corolla Verso 1.6 | 04.2004- | |
| TOYOTA | Corolla Verso 1.8 | [1ZZ-FE] | 04.2004-03.2009 |
| TOYOTA | Corolla Verso 1.8 | 04.2004- |
Reference Information
| 0124315023 | BOSCH |
| 0124325079 | BOSCH |
| 0124325080 | BOSCH |
| 063377542010 | MAGNETI MARELLI |
| 063731894010 | MAGNETI MARELLI |
| 0986046110 | BOSCH |
| 10121-00890 | DENSO |
| 101210-0890 | DENSO |
| 10121-00891 | DENSO |
| 101210-0891 | DENSO |
| 102211-850 | DENSO |
| 102211-8500 | DENSO |
| 102211-8501 | DENSO |
| 102211-8502 | DENSO |
| 102211-8503 | DENSO |
| 102211-927 | DENSO |
| 102211-9270 | DENSO |
| 102211-9271 | DENSO |
| 102211-9272 | DENSO |
| 102211-9273 | DENSO |
| 102211-9280 | DENSO |
| 104210-806 | DENSO |
| 104210-8060 | DENSO |
| 104210-8061 | DENSO |
| 104210-8062 | DENSO |
| 104210-8063 | DENSO |
| 11.1894 | CQ |
| 11.1894M | CQ |
| 114709 | CARGO |
| 116332 | CARGO |
| 1894JAR | RNL |
| 195.563.090.010 | PSH |
| 195.563.090.051 | PSH |
| 195.563.090.261 | PSH |
| 195.563.090.340 | PSH |
| 195.563.090.415 | PSH |
| 20-0471 | AIRSTAL |
| 20132792BN | REAL |
| 20132792OE | REAL |
| 20132792RC | REAL |
| 2040297.0 | SANDO |
| 2040297.1 | SANDO |
| 2040297.2 | SANDO |
| 210980 | ERA |
| 22518N | WAI / TRANSPO |
| 22518R | WAI / TRANSPO |
| 235182902 | DRI |
| 27060-03D00 | TOYOTA |
| 27060-0D140 | TOYOTA |
| 27060-0D14084 | TOYOTA |
| 27060-0D140B | TOYOTA |
| 27060-0D140F | TOYOTA |
| 27060-0D170 | TOYOTA |
| 27060-0D190 | TOYOTA |
| 27060-0D191 | TOYOTA |
| 27060-0D300 | TOYOTA |
| 27060-0T300 | TOYOTA |
| 27060-22230 | TOYOTA |
| 27060OD140 | TOYOTA |
| 28-5520 | ELSTOCK |
| 28-5594 | ELSTOCK |
| 311913 | RHIAG |
| 401894RI | KUHNER |
| 401894RID | KUHNER |
| 440838 | VALEO |
| 443082 | VALEO |
| 445155 | LOGISTIK |
| 447134 | LOGISTIK |
| 57370 | EAI |
| 63377542 | MAGNETI MARELLI |
| 63731894 | MAGNETI MARELLI |
| 89212249 | POWERMAX |
| 8EL011712-191 | HELLA |
| 8EL738211-301 | HELLA |
| 9046110 | FRIESEN |
| 9320 | CEVAM |
| 943318941010 | MAGNETI MARELLI |
| 944390461100 | MAGNETI MARELLI |
| A131.435 | PSH |
| A148.284 | PSH |
| A149.840 | PSH |
| A6122 | AS-PL |
| AAL1507 | APEC |
| AC-JBA1894 | ACAUTO |
| AEB1894 | AUTOELECTRO |
| AI-90153 | AINDE |
| AI-90153R | AINDE |
| ALN3893 | KRAUF |
| ALT1742 | ELECTROLOG |
| ALT2187 | ROLLCO |
| ALT30484 | WOODAUTO |
| ALT30505 | WOODAUTO |
| ALT422970 | SIOM |
| ALT422970A | SIOM |
| ALT422970R | SIOM |
| ALT492 | ROLLCO |
| ALTL753 | 3EFFE |
| ALTL753NE | 3EFFE |
| ALTL753U | 3EFFE |
| ANM48330X | ANDEL |
| AZMT-49-035-1109 | A.Z. MEISTERTEILE |
| BBA2181 | BORG & BECK |
| BBA2499 | BORG & BECK |
| BREF0320986046110 | CARWOOD GROUP |
| BREF032116332 | CARWOOD GROUP |
| CAL40297AS | CASCO |
| CAL40297GS | CASCO |
| CAL40297RS | CASCO |
| CGB-85520 | AINDE |
| DAN1021 | DENSO |
| DB7220 | DELCO |
| DB7220N | DELCO |
| DENDAN1021 | WOODAUTO |
| DRB6110 | DELCO |
| F032114709 | CARGO |
| F032116332 | CARGO |
| G100414 | BTS TURBO |
| G103588 | BTS TURBO |
| HJA1894IR | HC PARTS |
| J5112118 | HERTH+BUSS |
| JA1894IR | HC PARTS |
| LRA02906 | LUCAS |
| LRA03019 | LUCAS |
| LRA2906 | LUCAS |
| LRA3019 | LUCAS |
| MAN7542 | MAGNETI MARELLI |
| MARC1894 | MAGNETI MARELLI |
| MQA1894 | MAGNETI MARELLI |
| MRA46110 | MAGNETI MARELLI |
| NPANAL1507 | NAPA |
| PRAL753 | 3EFFE |
| PRAL753U | 3EFFE |
| RNL1012100891 | RNL |
| RNL1022119270 | RNL |
| RNL1042108060 | RNL |
| RNL4611 | RNL |
| SB186 | SOVEREIGN |
| STX100332 | STARDAX |
| STX100332R | STARDAX |
| WOOALT30484 | WOODAUTO |
| WOOALT30505 | WOODAUTO |
Video/Publications
