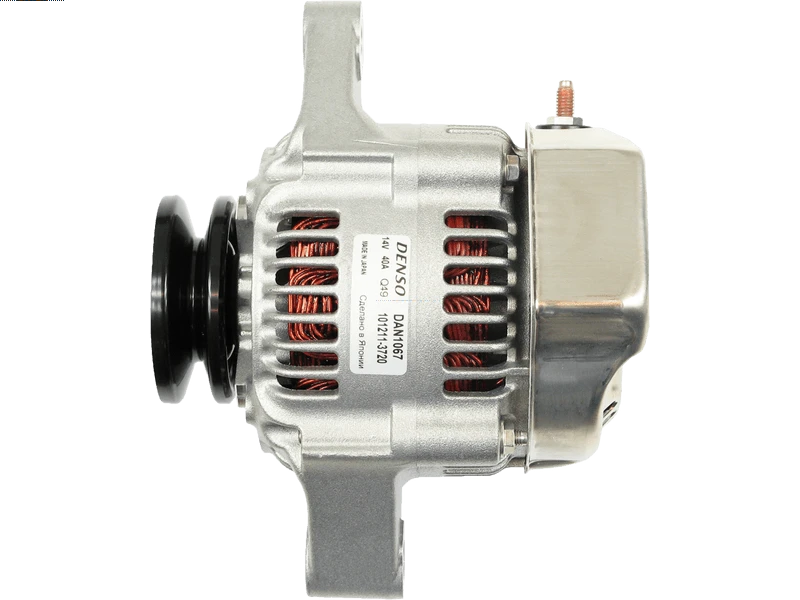

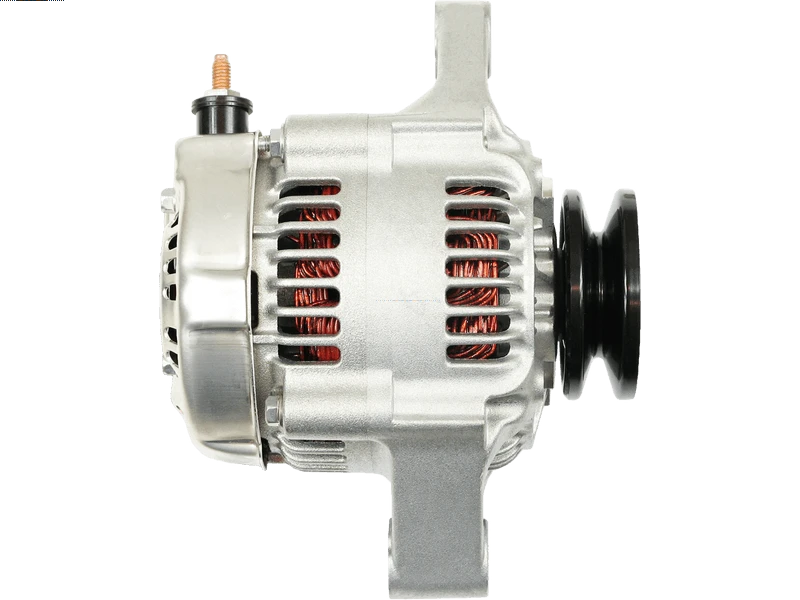

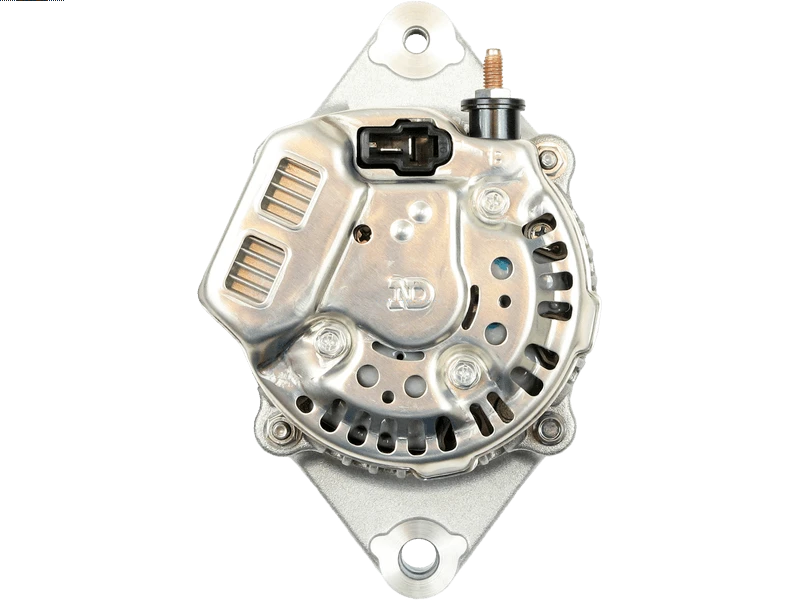

Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 754.80 including GST
NZ$ 656.35 excluding GST
or four payments of $188.70
with
Learn More
each
A6163(DENSO)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
DAN1067Associated Numbers
101211-3720 101211-3721 101211-3722 101211-3723 114411 1157326 13127N 1758064010 553143RI 553143RID CAL40128AS DAN1067 DENDAN1067 EAA-222382Specifications
| Amp | 40 A |
| Bottom Mounting Foot Width (B) | 29 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 142 mm |
| OEM Product | Yes |
| Plug Code | PL_2500 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9.50 mm |
| Pulley Outside Diameter (O.D.1) | 38 mm |
| Pulley Outside Diameter (O.D.2) | 63 mm |
| Pulley to Mount Distance (A) | 62 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ARCTIC CAT | 0.7 | [LOMBARDINI] | |
| ARCTIC CAT | 700 0.7 | 01.2007-12.2015 | |
| JCB | Groundhog 4x4 | 01.2008-12.2015 |
Reference Information
| 021080-0890 | DENSO |
| 063377575010 | MAGNETI MARELLI |
| 101211-3720 | DENSO |
| 101211-3721 | DENSO |
| 101211-3722 | DENSO |
| 101211-3723 | DENSO |
| 114411 | CARGO |
| 115.512.040.050 | PSH |
| 115.512.040.260 | PSH |
| 115.512.040.415 | PSH |
| 115.512.040.785 | PSH |
| 115.512.040.786 | PSH |
| 1157326 | LOMBARDINI |
| 1157397 | LOMBARDINI |
| 13127N | WAI / TRANSPO |
| 146-06129 | DIXIE |
| 17580-64010 | KUBOTA |
| 209442 | ERA |
| 28-6856 | ELSTOCK |
| 290-10393 | ROBERT'S |
| 446167 | LOGISTIK |
| 553143RI | KUHNER |
| 553143RID | KUHNER |
| 57748 | EAI |
| 70-29-13127 | WILSON |
| 89214899 | POWERMAX |
| 8EL012240-721 | HELLA |
| 9338 | CEVAM |
| A12DE1224A2 | SIDAT |
| AG0326 | GHIBAUDI |
| ALN4411 | KRAUF |
| ALT30587 | WOODAUTO |
| ALT421280 | SIOM |
| ALT421280A | SIOM |
| ALT6677 | ELECTROLOG |
| ALTS159 | 3EFFE |
| ALTS159R | 3EFFE |
| ALTS159U | 3EFFE |
| DAN1067 | DENSO |
| F032114411 | CARGO |
| GAAN1067-A | GPARTS |
| J5116010 | HERTH+BUSS |
| JFZ155A | LOMBARDINI |
| LRA03746 | LUCAS |
| LRA3746 | LUCAS |
| MAN7575 | MAGNETI MARELLI |
| PRAS159 | 3EFFE |
| PRAS159U | 3EFFE |
| UD19430A | AS-PL |
Video/Publications
A6163(DENSO)Related Items
