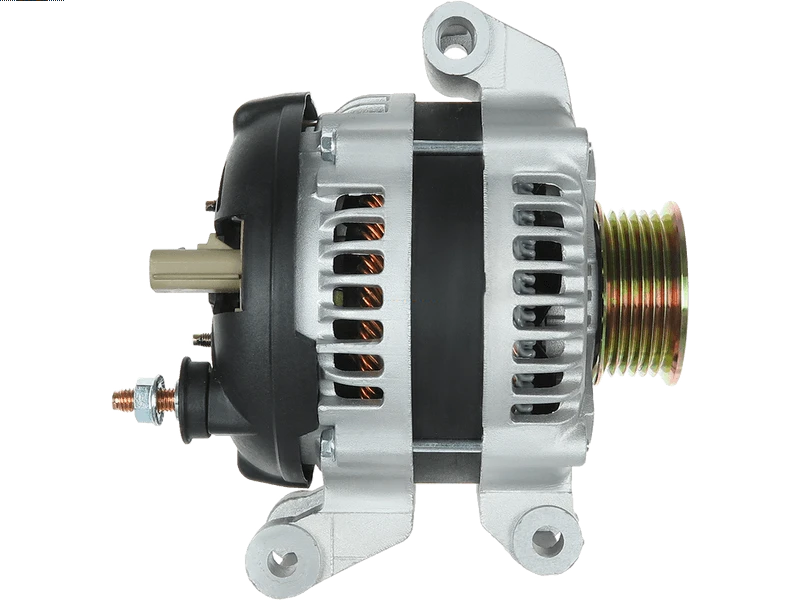

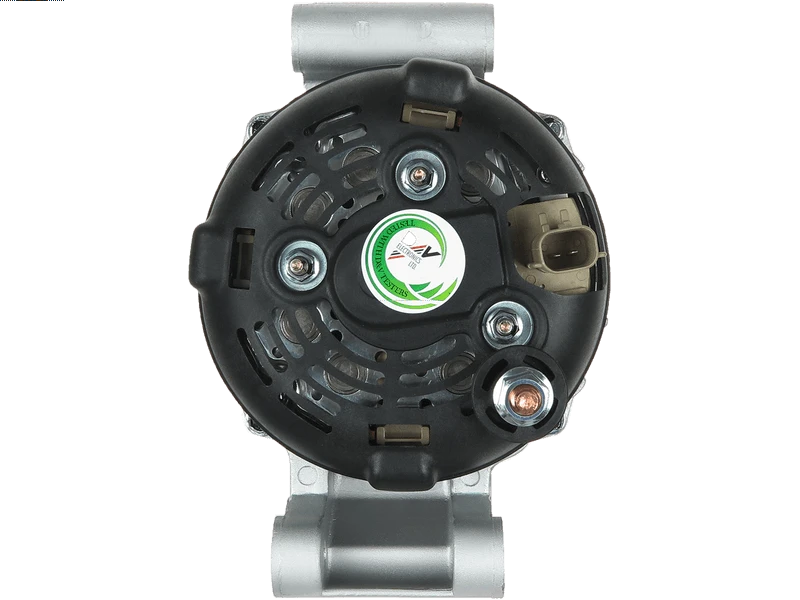

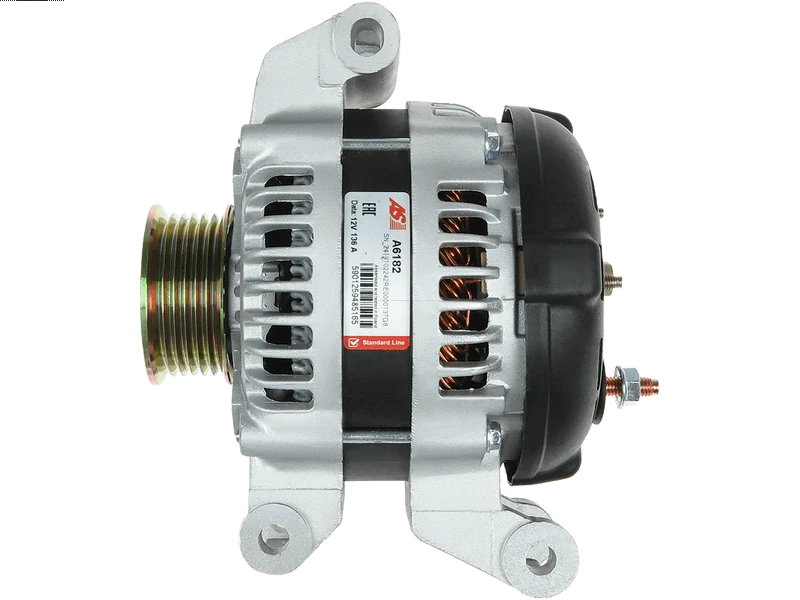

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 506.74 including GST
NZ$ 440.64 excluding GST
or four payments of $126.69
with
Learn More
each
A6182
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
4210000030Associated Numbers
04727324AB 13867R 27-5732 421000-0030 4727324AB 554249RI AEK1170 ALT30429 LRA03120 UD01145ASpecifications
| Amp | 136 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 183.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 85 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 69 mm |
| Pad mount thickness (E.2) | 69 mm |
| Pad mount thickness (E.3) | 69 mm |
| Plug Code | PL_2802 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 21 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Voyager 2.4i 16V | [EDO] | 01.2001-12.2007 |
| CHRYSLER | Voyager 2.4i 16V | [EDZ] | 01.2001-12.2007 |
| DODGE | Caravan 2.4 | [EDZ] | 01.2001-12.2007 |
Reference Information
| 04727324AB | CHRYSLER |
| 115936 | CARGO |
| 13867R | WAI / TRANSPO |
| 27-5732 | ELSTOCK |
| 421000-0030 | DENSO |
| 447100 | LOGISTIK |
| 4727324AB | CHRYSLER |
| 554249RI | KUHNER |
| AEK1170 | AUTOELECTRO |
| ALT30429 | WOODAUTO |
| ALT6737 | ELECTROLOG |
| F032115936 | CARGO |
| LRA03120 | LUCAS |
| LRA3120 | LUCAS |
| UD01145A | AS-PL |
