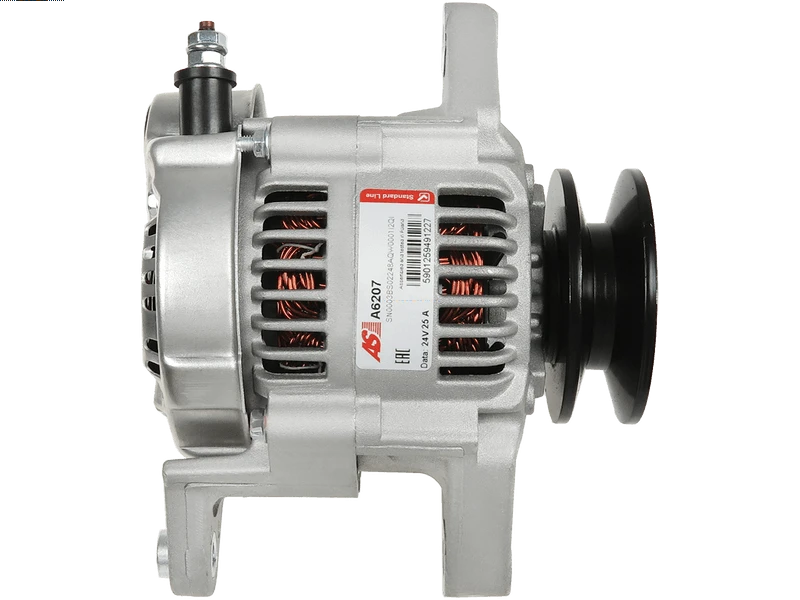

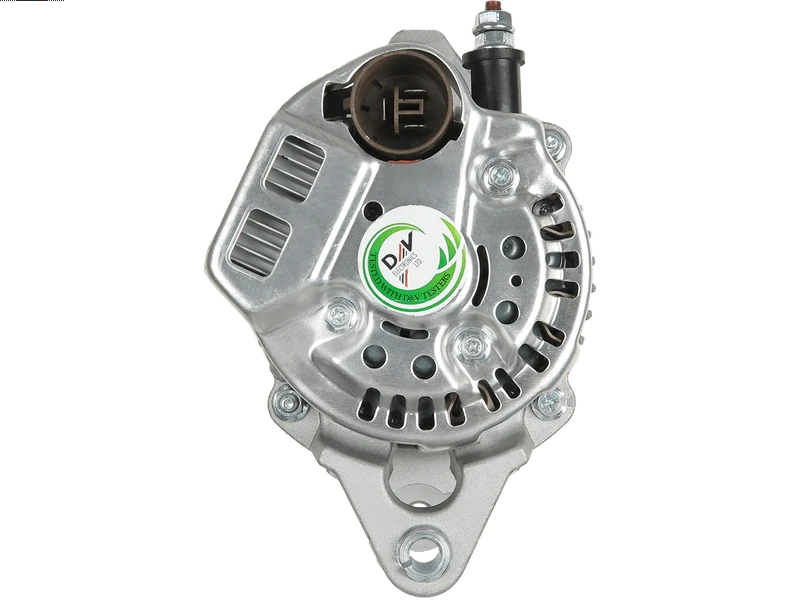

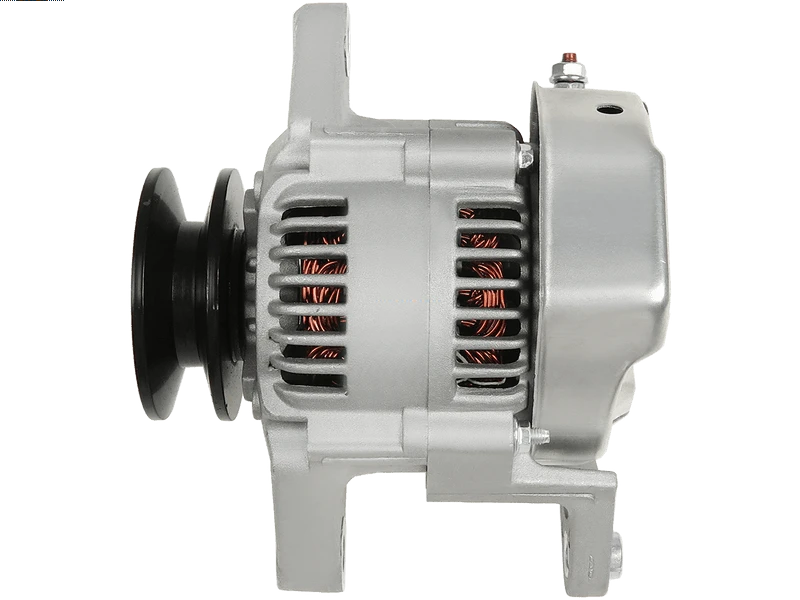

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 345.26 including GST
NZ$ 300.23 excluding GST
or four payments of $86.32
with
Learn More
each
A6207
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
JA1170IR-24V UD02271ASpecifications
| Amp | 25 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 147 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_3500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 16.50 mm |
| Pulley Outside Diameter (O.D.1) | 44 mm |
| Pulley Outside Diameter (O.D.2) | 76 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | 5FD20 | [1Z] | 01.1989-12.1994 |
| TOYOTA | 5FD23 | [1Z] | 01.1989-12.1994 |
| TOYOTA | 5FD25 | [1Z] | 01.1989-12.1994 |
| TOYOTA | 5FD33 | [11Z] | 01.1989-12.1994 |
| TOYOTA | 5FD35 | [11Z] | 01.1989-12.1994 |
| TOYOTA | 5FD38 | [11Z] | 01.1989-12.1994 |
| TOYOTA | 5FD40 | [11Z] | 01.1989-12.1994 |
| TOYOTA | 5FD45 | [11Z] | 01.1989-12.1994 |
| TOYOTA | 5FD50 | [12Z] | 01.1990-12.1996 |
| TOYOTA | 5FD50 | [14Z] | 01.1996- |
Reference Information
| 100211-4910 | DENSO |
| 100211-6940 | DENSO |
| 100211-6941 | DENSO |
| 100211-6950 | DENSO |
| 100211-6951 | DENSO |
| 112252 | CARGO |
| 12212N | WAI / TRANSPO |
| 146-06200 | DIXIE |
| 20132006BN | REAL |
| 2040600.0 | SANDO |
| 2528 | CEVAM |
| 27060-23061 | TOYOTA |
| 27060-23061-71 | TOYOTA |
| 27060-78304 | TOYOTA |
| 27060-78304-71 | TOYOTA |
| 27070-23061 | TOYOTA |
| 27070-23061-71 | TOYOTA |
| 446890 | LOGISTIK |
| 48-1935 | ELSTOCK |
| 553937RI | KUHNER |
| ALN2252 | KRAUF |
| ALT30156 | WOODAUTO |
| ALT6107 | ELECTROLOG |
| CAL40600AS | CASCO |
| F032112252 | CARGO |
| LRA02462 | LUCAS |
| LRA2462 | LUCAS |
| UD02271A | AS-PL |
