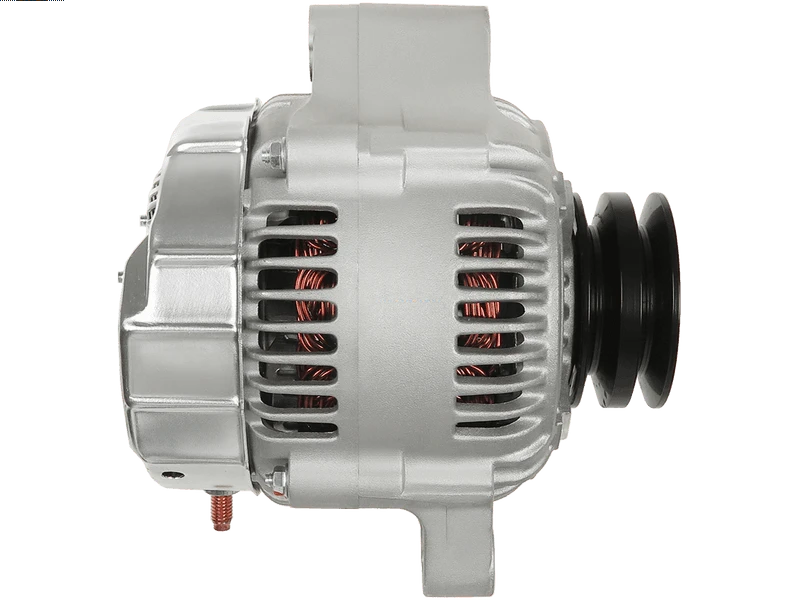

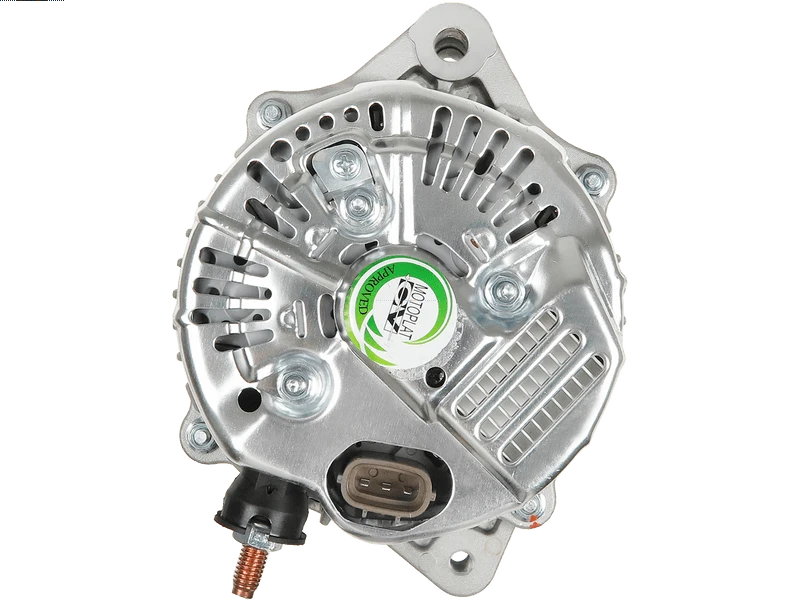

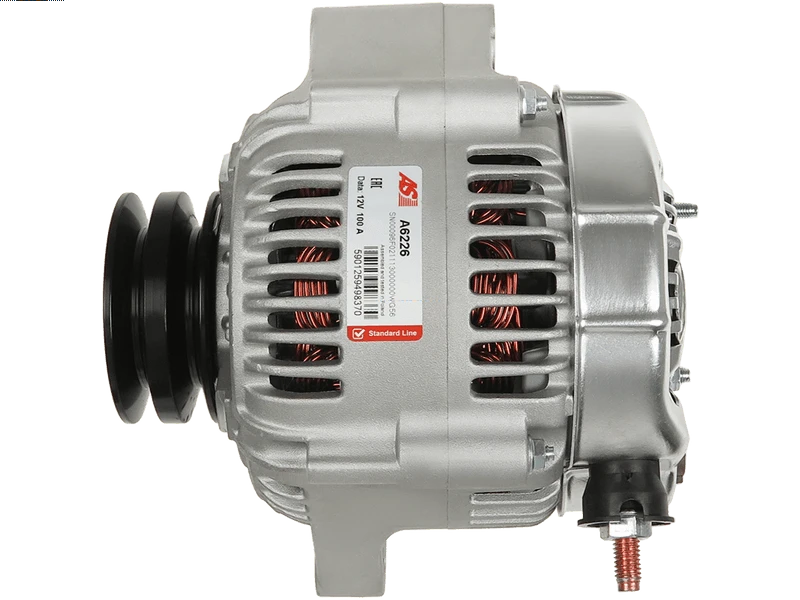

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 666.76 including GST
NZ$ 579.79 excluding GST
or four payments of $166.69
with
Learn More
each
A6226
No stock in NZ currently
No stock in NZ currently
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
101211-7000 101211-7010 101211-7011 101211-7320 195.902.080 27060-17180 27060-17181 27060-66040 27060-66100 28-4754 555076RI 835.012.105 AEB1534 ALN7000 LRA02273 UD30012ASpecifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 175.00 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 9.00 mm |
| Pulley Outside Diameter (O.D.1) | 51.00 mm |
| Pulley Outside Diameter (O.D.2) | 72.00 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Land Cruiser 4.5 | [1FZ-FE] | 01.1992-12.1988 |
Reference Information
| 101211-7000 | DENSO |
| 101211-7010 | DENSO |
| 101211-7011 | DENSO |
| 101211-7320 | DENSO |
| 195.902.080 | PSH |
| 27060-17180 | TOYOTA |
| 27060-17181 | TOYOTA |
| 27060-66040 | TOYOTA |
| 27060-66100 | TOYOTA |
| 28-4754 | ELSTOCK |
| 555076RI | KUHNER |
| 835.012.105 | PSH |
| 835.012.105.030 | PSH |
| 835.012.105.038 | PSH |
| 835.012.105.460 | PSH |
| 835.012.105.510 | PSH |
| A135.814 | PSH |
| AEB1534 | AUTOELECTRO |
| ALN7000 | KRAUF |
| ALT6035 | ELECTROLOG |
| LRA02273 | LUCAS |
| LRA2273 | LUCAS |
| UD103788A | AS-PL |
| UD30012A | AS-PL |
Video/Publications
A6226Related Items
