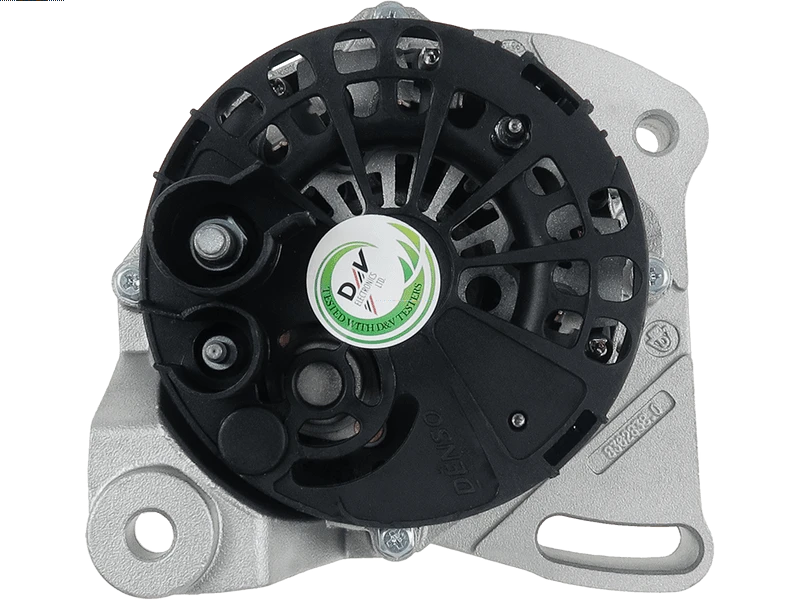

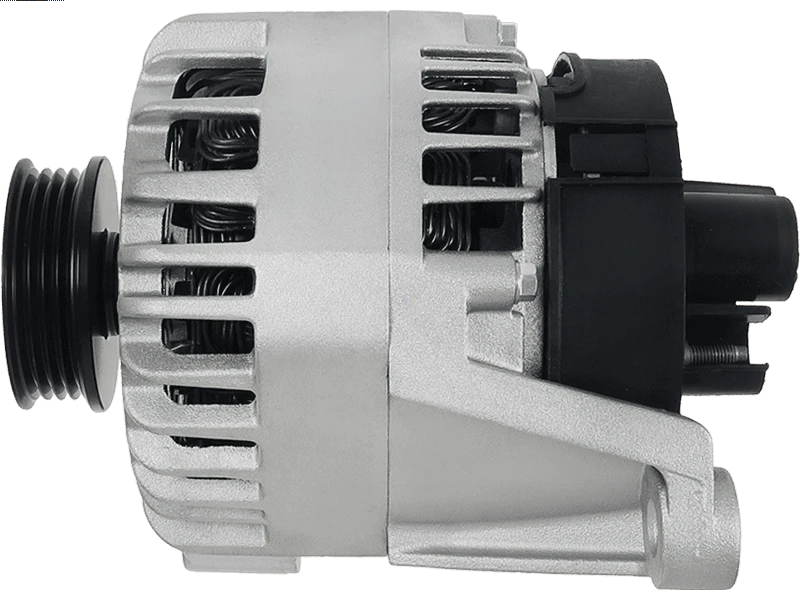

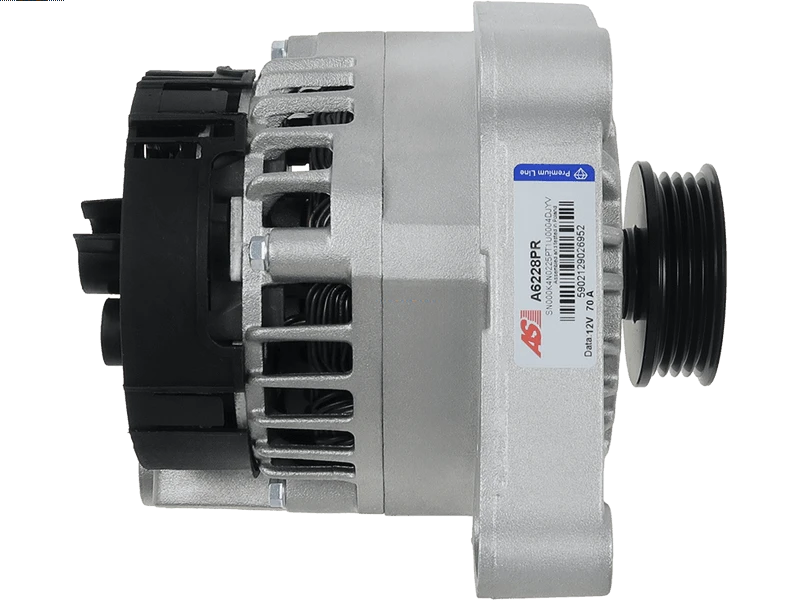

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
DENSO
Price:
NZ$ 285.22 including GST
NZ$ 248.02 excluding GST
or four payments of $71.31
with
Learn More
each
A6228PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986080490 102211-8220 102211-8221 114899 20110148 2030100 301843RI 301844RI 301844RIM 30890RI 30890RIM 4617 46231693 46420960 46530060 46554402 46800158 46813065 46816029 46843093 505.513.065 51859047 56966 63320219 63321200 63321233 63321270 63321600 63321712 63321761 63321848 63321869 63377001 71721120 71721152 8EL012426-661 8EL731724-001 8EL749555-001 9212731 943321200 943321270 A11VI46 ALT12007 CAL30100 CAL30100AS CAL30100ES CAL30100GS CAL30100OS CAL30100RS DENDAN511 DRA3353 DRA3353X EAA-221435Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 32.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 187 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 53.50 mm |
| Pulley to Mount Distance (A) | 55 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Doblo 1.2 8V | [223A5.000] | 01.2001- |
| FIAT | Doblo 1.2 i.e. 8V | [223A5.000] | 03.2001- |
| FIAT | Palio 1.2 | [178B5.000] | 04.1996-02.2001 |
| FIAT | Palio 1.2 | [178B7.045] | 01.1997-12.2002 |
| FIAT | Palio 1.2 | [178C4.066] | 01.1997-12.2002 |
| FIAT | Palio 1.2 | [188A4.000] | 01.1997-12.2002 |
| FIAT | Panda 1.1 | [187A.1000] | 09.2003- |
| FIAT | Panda 1.1 | [187A1.000] | 09.2004- |
| FIAT | Panda 1.2 | [188A.4000] | 09.2003- |
| FIAT | Panda 1.2 | [188A4.000] | 09.2004- |
| FIAT | Panda 1.2 4x4 | [188A4.000] | 10.2004- |
| FIAT | Panda 1.2 X | [188A4.000] | 09.2004- |
| FIAT | Punto 1.2 | [188A4.000] | 02.2000- |
| FIAT | Punto 1.2 | [188A4.000] | 09.1999- |
| FIAT | Punto 1.2 8V | [188A4.000] | 01.1999-12.2003 |
| FIAT | Punto 1.2 Natural Power | [188A4.000] | 09.2003- |
| FIAT | Punto 55 1.1 | [176A6.000] | 01.1993-12.1999 |
| FIAT | Punto 55 1.1 | [176B2.000] | 01.1993-12.1999 |
| FIAT | Punto 60 1.2 | [176A7.000] | 01.1993-12.1997 |
| FIAT | Punto 60 1.2 | [176B1.000] | 01.1993-12.1999 |
| FIAT | Punto 60 1.2 | [176B4.000] | 01.1993-12.1999 |
| FIAT | Punto 75 1.2 | [176A8.000] | 01.1993-12.1999 |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998- |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998-12.2000 |
| FIAT | Seicento 1.1 | [187A1.000] | 01.1998- |
| FIAT | Seicento 1.1 | [187A1.000] | 01.1998-12.2000 |
| FIAT | Siena 1.2 | [188A5.000] | 01.2001- |
| FIAT | Strada 1.2 | [178B5.000] | 06.1999-03.2005 |
| LANCIA | Y 1.1 i.e. | [176B2.000] | 01.1997-12.2000 |
| LANCIA | Y 1.2 i.e. | [188A4.000] | 01.1996-12.2000 |
| LANCIA | Y 1.2 i.e. | [840A3.000] | 01.1996-12.2000 |
| LANCIA | Ypsilon 1.2 | [188A4.000] | 10.2003- |
| LANCIA | Ypsilon 1.2 | [188A5.000] | 10.2003- |
Reference Information
| 102211-8220 | DENSO |
| 102211-8221 | DENSO |
| 20030100AV | ITAB AUTOMOTIVE |
| 20030100OV | ITAB AUTOMOTIVE |
| 20104001BN | REAL |
| 20104001OE | REAL |
| 20104001RE | REAL |
| 20110148 | PRESTOLITE |
| 2030100.0 | SANDO |
| 2030100.1 | SANDO |
| 2030100.4 | SANDO |
| 20984N | WAI / TRANSPO |
| 210237 | ERA |
| 210348 | ERA |
| 210746 | ERA |
| 28-2504 | ELSTOCK |
| 30890RI | KUHNER |
| 30890RID | KUHNER |
| 30890RIR | KUHNER |
| 4385 | CEVAM |
| 46231693 | FIAT |
| 46407644 | FIAT |
| 46419297 | FIAT |
| 46420960 | FIAT |
| 46530060 | FIAT |
| 46758244 | FIAT |
| 46800158 | FIAT |
| 46843093 | FIAT |
| 505.513.065.050 | PSH |
| 505.513.065.265 | PSH |
| 51859047 | FIAT |
| 56324 | EAI |
| 5895028 | FIAT |
| 63320219 | MAGNETI MARELLI |
| 63321200 | MAGNETI MARELLI |
| 63321233 | MAGNETI MARELLI |
| 63321270 | MAGNETI MARELLI |
| 63321600 | MAGNETI MARELLI |
| 63321605 | MAGNETI MARELLI |
| 63321712 | MAGNETI MARELLI |
| 63321848 | MAGNETI MARELLI |
| 63321867 | MAGNETI MARELLI |
| 71721120 | FIAT |
| 71721152 | FIAT |
| 7712541 | FIAT |
| 7715541 | FIAT |
| 7779915 | FIAT |
| 89212856 | POWERMAX |
| 8EL012426661 | HELLA |
| 943321173 | MAGNETI MARELLI |
| 943321200 | MAGNETI MARELLI |
| 943321200010 | MAGNETI MARELLI |
| 943321270 | MAGNETI MARELLI |
| 944390394710 | MAGNETI MARELLI |
| A11VI46 | ISKRA / LETRIKA |
| A12MA0189A2 | SIDAT |
| AAL1638 | APEC |
| AEA1248 | AUTOELECTRO |
| AG0185 | GHIBAUDI |
| ALE1844 | KRAUF |
| ALT12007 | WOODAUTO |
| ALT2120 | SIOM |
| ALT2120A | SIOM |
| ALT9017 | ELECTROLOG |
| ALTF761 | 3EFFE |
| ALTL231M | 3EFFE |
| ALTL777 | 3EFFE |
| CA1844IR | HC PARTS |
| CAL30100AS | CASCO |
| CAL30100GS | CASCO |
| CAL30100OS | CASCO |
| DA4463 | DELCO |
| DENDAN511 | WOODAUTO |
| DRA3353 | DELCO |
| DRA3353X | DELCO |
| GADAN511-A | GPARTS |
| GADAN511D-R | GPARTS |
| LRB00148 | LUCAS |
| LRB148 | LUCAS |
| MAN640 | MAGNETI MARELLI |
| MAN644 | MAGNETI MARELLI |
| MAR5105 | MAGNETI MARELLI |
| MRA39471 | MAGNETI MARELLI |
| NPANAL1638 | NAPA |
| PRAF761 | 3EFFE |
| PRAL231 | 3EFFE |
| PRAL231U | 3EFFE |
| PRAL777 | 3EFFE |
| RAA14464 | DELCO |
| STX100015 | STARDAX |
| STX100015R | STARDAX |
| STX100022 | STARDAX |
| STX100022R | STARDAX |
| STX100266 | STARDAX |
| STX100266R | STARDAX |
