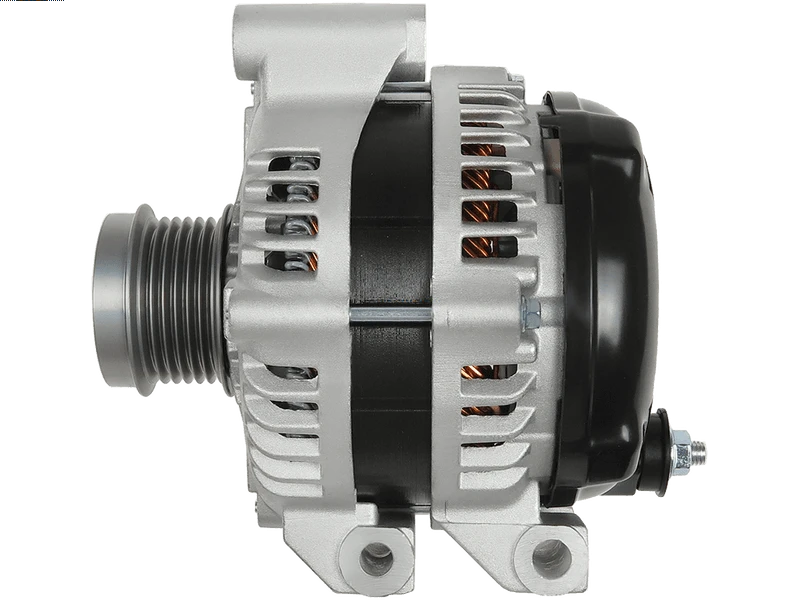

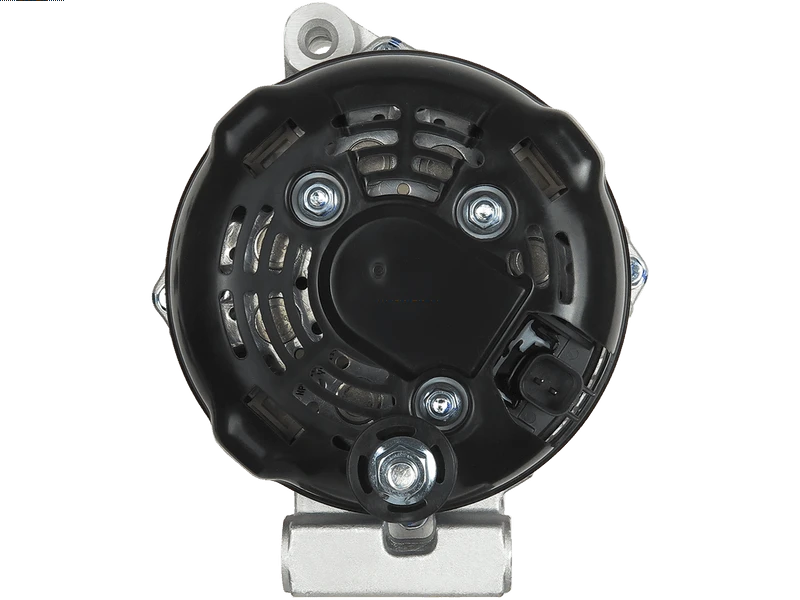

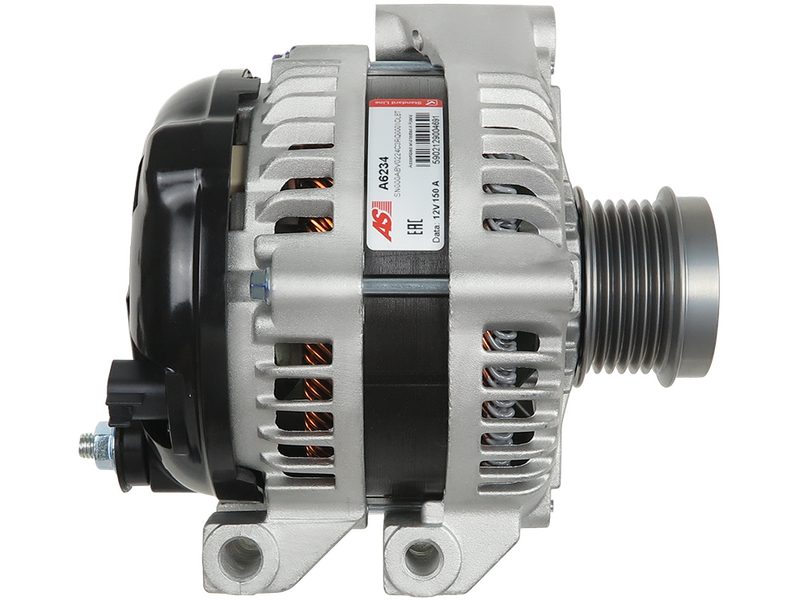

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 510.23 including GST
NZ$ 443.68 excluding GST
or four payments of $127.56
with
Learn More
each
A6234
2
Associated Numbers
04801624AD 11570R 421000-0770 4801624AD 554639RI 7B0-903-015-CXRMN 7B0-903-015C A-80504 A6234 DRA1279 P04801624AD RL801624AD UD11388A AS-PLList AS-PL CHRYSLER CHRYSLERList DELCO DENSOList DIXIE KUHNER LANCIAList VW WAI / TRANSPO 12061103 EuroTec 277864 Elstock 4210000770 Denso Chrysler 495506150 PSH 931279 EDR Remy 421000-077 Substitutes: JANNCO 400-52249R Light Duty 11068 Wilson 90-29-5776 References: Arrowhead AND0572 Bosch AL6482X Lester 11570 PIC Picture ID 290-5569 Volkswagen 07B903015CX Youtech/PartRef 335312 400-52642R J N 400-52249 94174 7B0-903-015CX 658535 anj314 dxa4086 0986CR6059 Exchange 0986UR6059 10444068 Alanko 11570N 13201191 AES 2040510 Sando 4210000770SEL +line 444068 447085 Logistik 5340721602 DRI DAS 68272108AA 68272108AB 68272108AD 7B0903015C 7B0903015CX 7B0903015CXRMN 7B0998015A A132984 Short code A158104 A161526 ADE1420 Everkraft AL00381 TMI (USA) CAL40510 Casco IR7661 Protech K04801624AE Fiat KRL801624AD LRA04255 Lucas RNL4210000770 RNLSpecifications
| Amp | 150 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 52 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 55 mm |
| Pad mount thickness (E.2) | 63 mm |
| Pad mount thickness (E.3) | 63 mm |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | 200 3.6 | 01.2011- | |
| CHRYSLER | Town & Country 3.6 | 01.2011- | |
| DODGE | Avenger 3.6 | 01.2011- | |
| DODGE | Grand Caravan 3.6 | 01.2011- | |
| DODGE | Journey 3.6 | 01.2011- | |
| RAM | C/V 3.6 | 01.2012- | |
| RAM | Ram Pickup 3.6 | 01.2014- | |
| RAM | Ram Pickup 3.6 | 01.2014- | |
| VW | Routan 3.6 | 01.2011- |
Reference Information
| 04801624AD | CHRYSLER |
| 0986CR6059 | BOSCH |
| 0986UR6059 | BOSCH |
| 10444068 | ALANKO |
| 114657 | FARCOM |
| 11570N | WAI / TRANSPO |
| 11570R | WAI / TRANSPO |
| 116599 | CARGO |
| 12061103 | EUROTEC |
| 13201191 | AES |
| 20132015BN | REAL |
| 2040510.0 | SANDO |
| 27-7864 | ELSTOCK |
| 290-10615 | ROBERT'S |
| 3118499 | HENKEL PARTS |
| 421000-0770 | DENSO |
| 421000-0771 | DENSO |
| 447085 | LOGISTIK |
| 4801624AD | CHRYSLER |
| 495.506.150.050 | PSH |
| 495.506.150.058 | PSH |
| 5340721602 | DRI |
| 5540824 | MEAT & DORIA |
| 554639RI | KUHNER |
| 68272108AA | CHRYSLER |
| 68272108AB | CHRYSLER |
| 68272108AD | CHRYSLER |
| 7B0903015 | VW |
| 7B0-903-015C | VW |
| 7B0903015CX | VW |
| 7B0-903-015-CXRMN | VW |
| 7B0998015A | VW |
| 7B0998015C | VW |
| 89216404 | POWERMAX |
| A12DE0540A2 | SIDAT |
| A6234 | AS-PL |
| A-80504 | DIXIE |
| ADN510A | AUTOTEAM |
| AL00381 | TMI |
| AL6482X | BOSCH |
| ALN7770 | KRAUF |
| ALT6783 | ELECTROLOG |
| CAL40510AS | CASCO |
| CXRMN | VW |
| DRA1279 | DELCO |
| F032116599 | CARGO |
| K04801624AD | FIAT |
| K04801624AE | FIAT |
| K68272108AA | FIAT |
| K68272108AB | FIAT |
| K68272108AC | FIAT |
| K68272108AD | FIAT |
| KRL801624AD | FIAT |
| LRA04255 | LUCAS |
| LRA4255 | LUCAS |
| P04801624AD | CHRYSLER |
| RL801624AD | CHRYSLER |
| RNL4210000770 | RNL |
| STX110301 | STARDAX |
| STX110301R | STARDAX |
| STX110362 | STARDAX |
| STX110362R | STARDAX |
| TN4210000770 | DENSO |
| UD11388A | AS-PL |
Video/Publications
