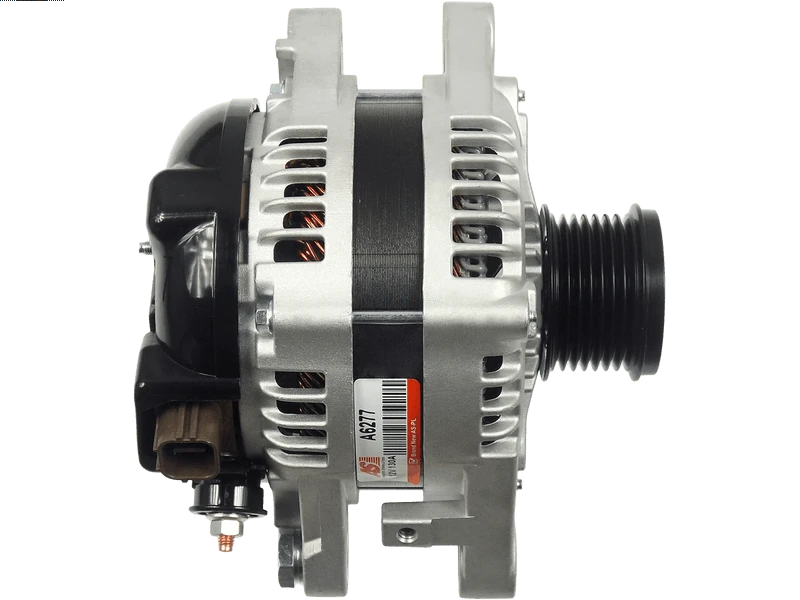

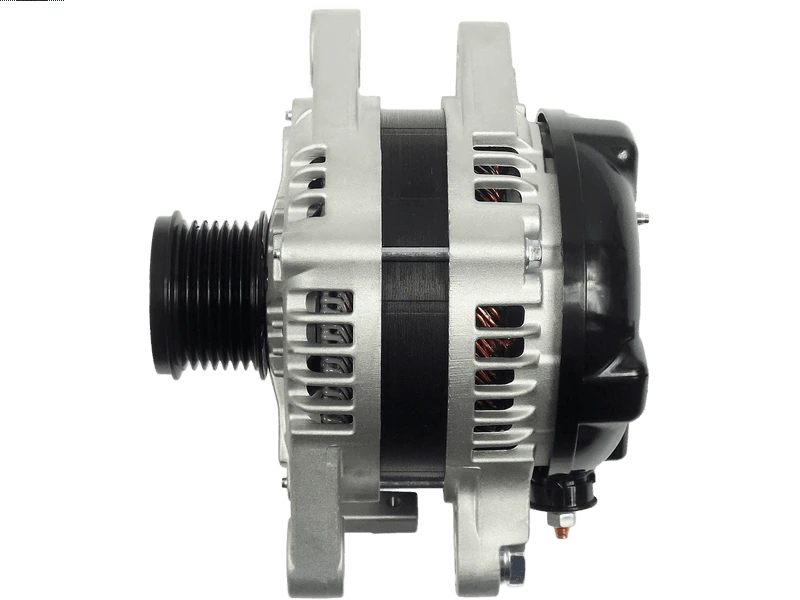

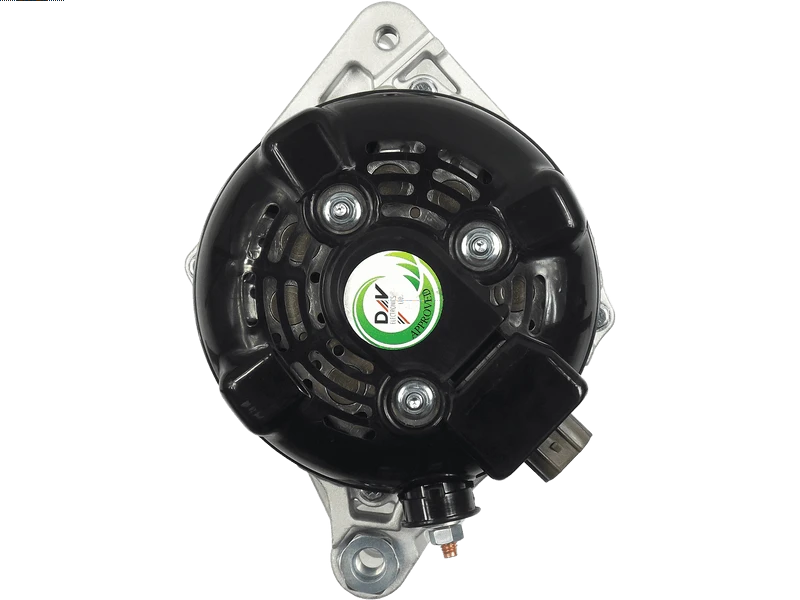

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 481.63 including GST
NZ$ 418.81 excluding GST
or four payments of $120.41
with
Learn More
each
A6522S
A6277
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-2090Associated Numbers
104210-2090 104210-4750 11323R 12822 20132083BN 2040380 27060-31100 27060-31101 553575RI 90-29-5636 A-80354 A1052D ALT30487 CAL40380 CAL40380AS CAL40380ES CAL40380GS CAL40380OS CAL40380RS UD11465A dxa597 anj293 65-8497-4 1042102090 Denso show 1042102091 1042102092 1042104750 11323 Lester 12061096 EuroTec 195920130 PSH 195920130SEL +line 2706031100 Toyota 2706031101 2706031102 2905244 PIC 57504 EAI 90295636 Wilson ARROWHEAD AND0423 VND0423 DENSO 104210-2091 J N ELECTRICAL PRODUCTS 400-52625 400-52677 JANNCO 400-52677R LESTER TOYOTA 27060-31102 J& 400-52625R ASPL CASCO DELCO List A80354 DIXIE REAL WAI / TRANSPO WILSON WOODAUTO 6584974 11323N ALND010 KRAUF ALN0075AN ALN0075ZD Motorherz ALN0075WA WPS 40052677R References: Arrowhead 40052625 40052677 Picture ID 40052625R 20132914RC 2040419 27060-31030 CAL40419RS UD11494ASpecifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 32.50 mm |
| OEM Product | No |
| Plug Code | PL_4002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | 350 3.5 i | [2GR-FE] | 01.2008-12.2012 |
| LEXUS | 450 3.5 i | [2GR-FE] | 01.2008-12.2012 |
| TOYOTA | RAV4 3.5 i | [2GR-FE] | 01.2007-12.2012 |
Reference Information
| 104210-2090 | DENSO |
| 104210-4750 | DENSO |
| 11323N | WAI / TRANSPO |
| 11323R | WAI / TRANSPO |
| 12822 | DELCO |
| 20132083BN | REAL |
| 2040380 | SANDO |
| 27060-31100 | WAI / TRANSPO |
| 27060-31101 | WAI / TRANSPO |
| 2706031102 | TOYOTA |
| 27060-31102 | TOYOTA |
| 28-8668 | ELSTOCK |
| 553575RI | KUHNER |
| 90-29-5636 | WILSON |
| A1052D | PRESTOLITE |
| A-80354 | DIXIE |
| ALT30487 | WOODAUTO |
| ALT6160 | ELECTROLOG |
| ALT616CP | ROLLCO |
| CAL40380 | CASCO |
| CAL40380AS | CASCO |
| CAL40380ES | CASCO |
| CAL40380GS | CASCO |
| CAL40380OS | CASCO |
| CAL40380RS | CASCO |
| LRA04559 | LUCAS |
| LRA4559 | LUCAS |
| UD11465A | AS-PL |
