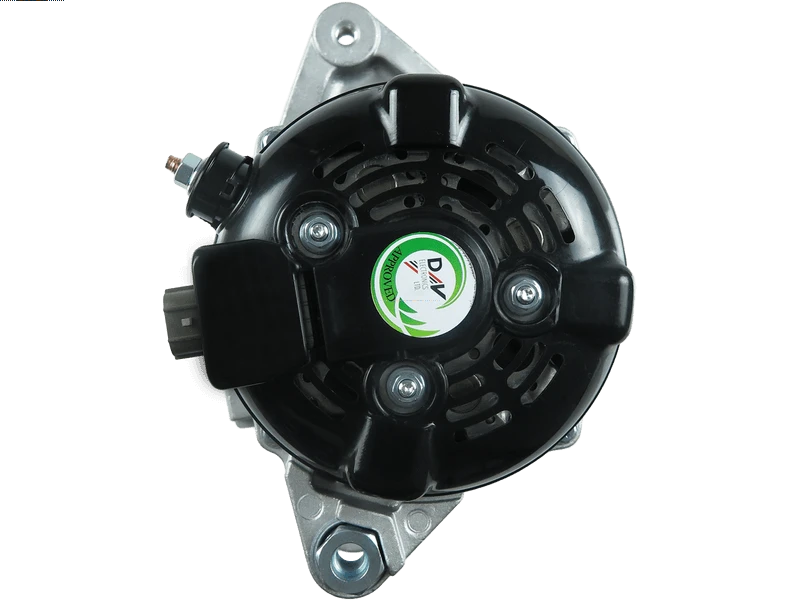

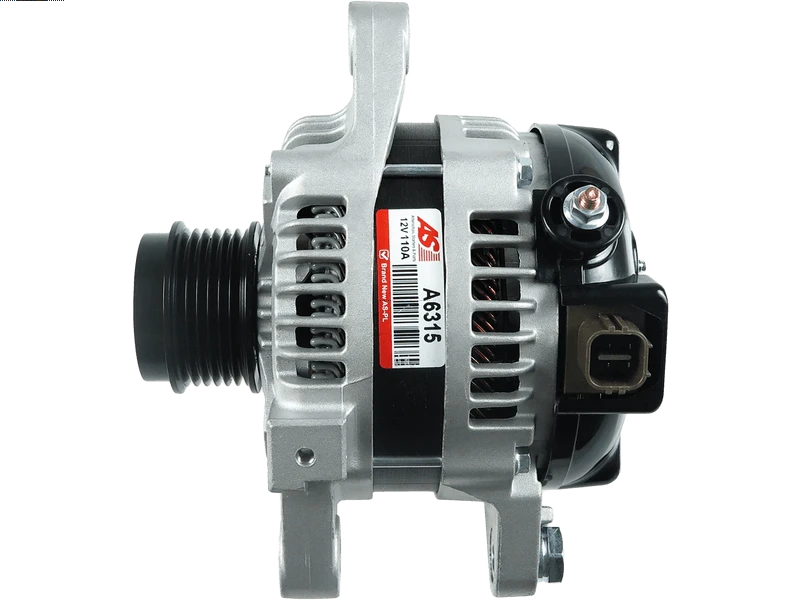

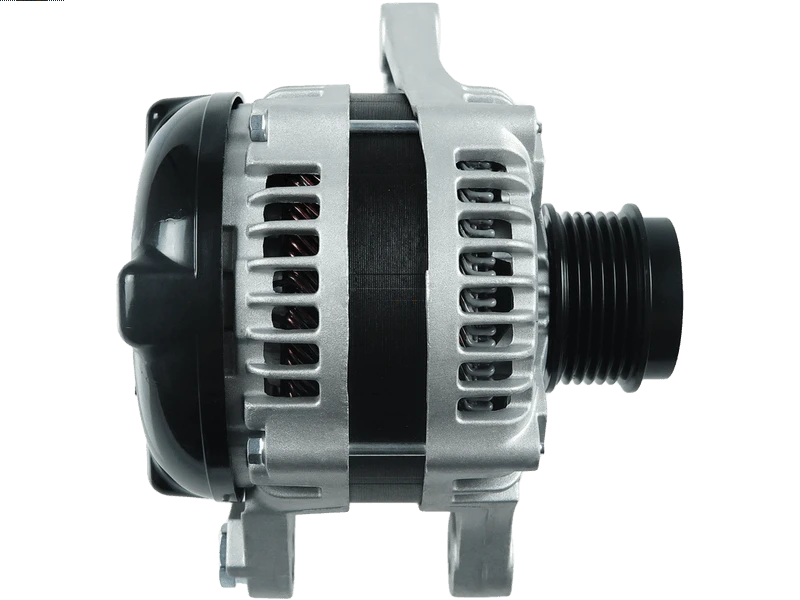

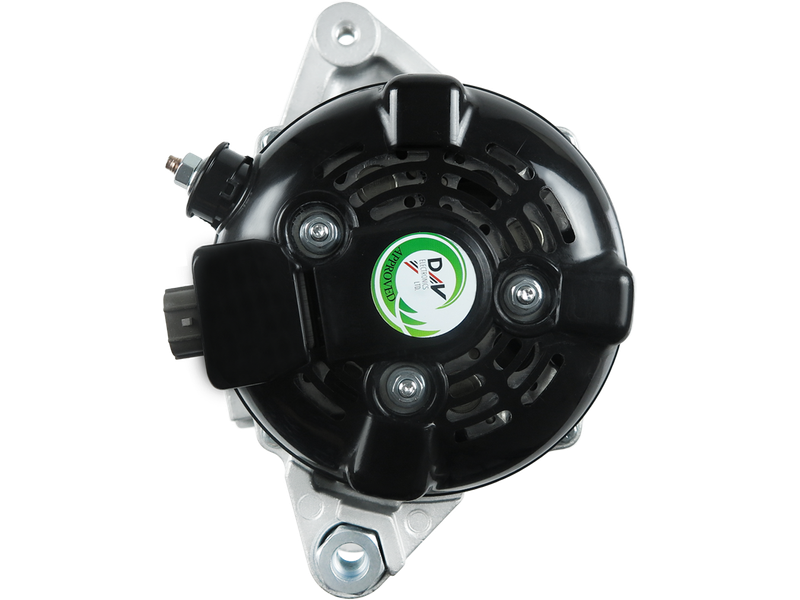

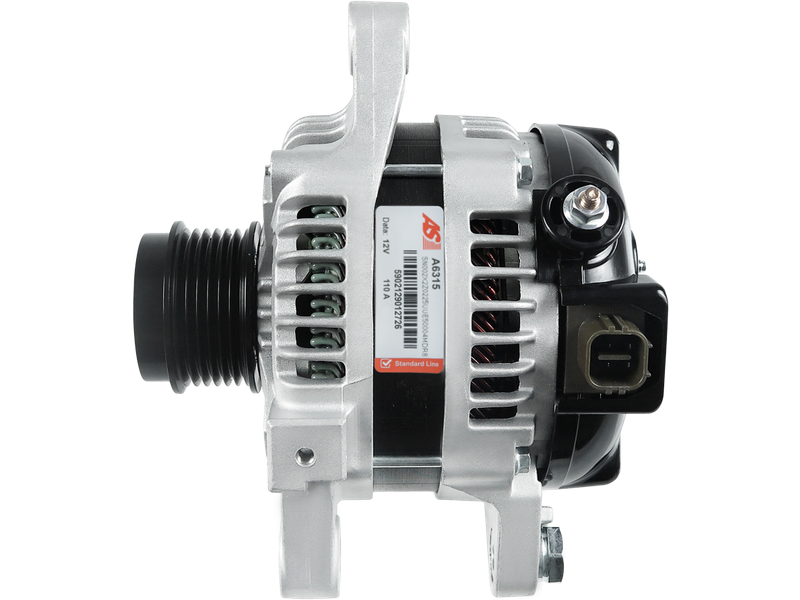

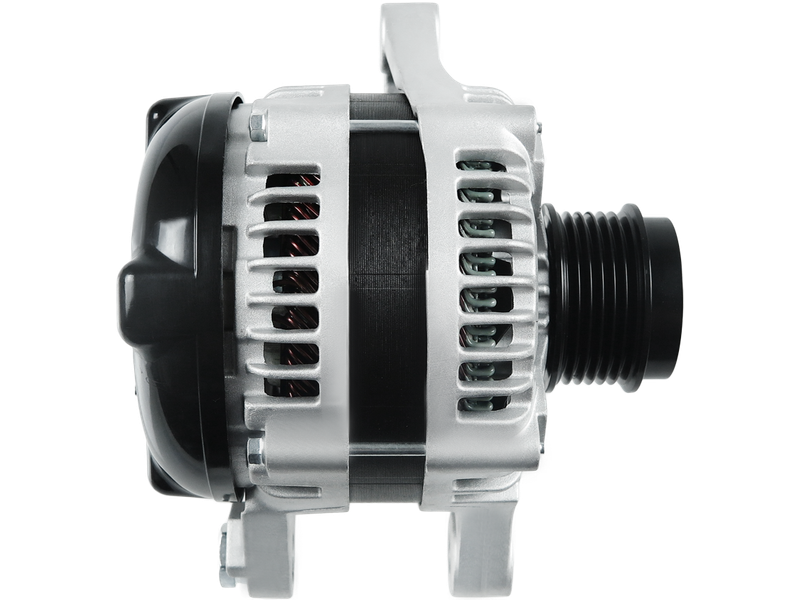

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 590.61 including GST
NZ$ 513.57 excluding GST
or four payments of $147.65
with
Learn More
each
A6315
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
104210-2801 104210-5480 104210-5481 104210-5490 104210-5491 11386R 12897 27060-0T040 27060-0T041 27060-37040 27060-37041 27060-37081 553934RI 90-29-5719 90-29-5719N A-80389 A1042D ALT30524 EAA-222152 UD11505ASpecifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PONTIAC | Vibe 1.8 | 01.2009-12.2010 | |
| SCION | XD 1.8 | 01.2008-12.2014 | |
| TOYOTA | Corolla 1.8 | 01.2009-12.2013 | |
| TOYOTA | Matrix 1.8 | 01.2009-12.2010 |
Reference Information
| 104210-2801 | DENSO |
| 104210-5480 | DENSO |
| 104210-5481 | DENSO |
| 104210-5490 | DENSO |
| 104210-5491 | DENSO |
| 11386N | WAI / TRANSPO |
| 11386R | WAI / TRANSPO |
| 12897 | DELCO |
| 27060-0T040 | TOYOTA |
| 27060-0T041 | TOYOTA |
| 27060-37040 | TOYOTA |
| 27060-37041 | TOYOTA |
| 27060-37081 | TOYOTA |
| 553934RI | KUHNER |
| 90-29-5719 | WILSON |
| 90-29-5719N | WILSON |
| A1042D | PRESTOLITE |
| A-80389 | DIXIE |
| ALT30524 | WOODAUTO |
| ALT6700 | ELECTROLOG |
| UD11505A | AS-PL |
Video/Publications
A6315Related Items
