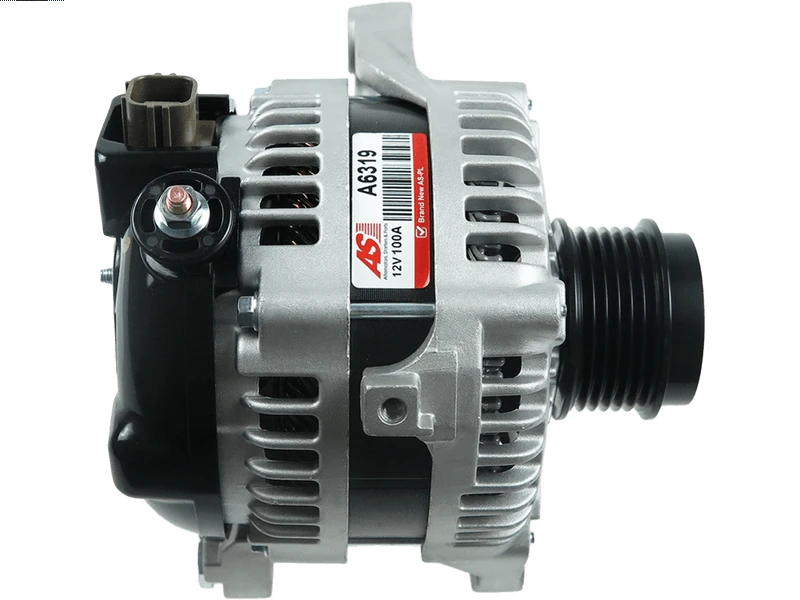

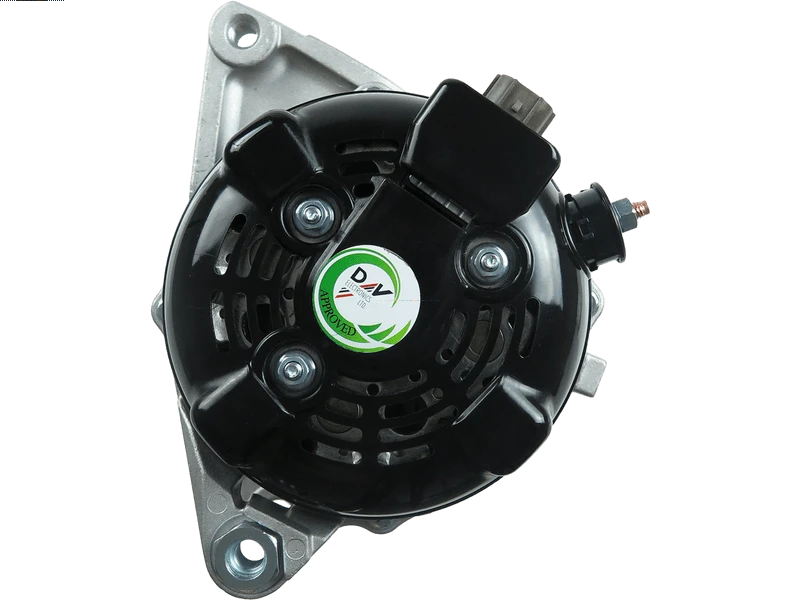

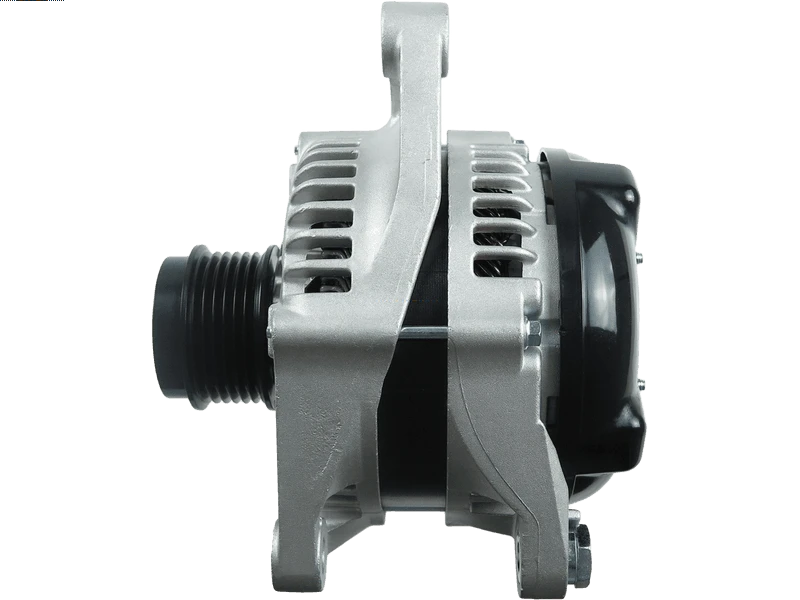

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 493.86 including GST
NZ$ 429.44 excluding GST
or four payments of $123.47
with
Learn More
each
A6319
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-2270Associated Numbers
0986UR6101 104210-2270 104210-2340 104210-8431 11402R 12946 27060-0V010 27060-36010 27060-36011 90-29-5726 94862 A-80492 A1045D ALN2340 UD11467ASpecifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | M10x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 64 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 26 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Alphard 2.5 | [AGT20] | 01.2011-12.2012 |
| TOYOTA | Camry 2.5 | [2AR-FE] | 01.2012-12.2015 |
| TOYOTA | RAV4 2.5 | [2AR-FE] | 01.2009-12.2012 |
Reference Information
| 0986UR6101 | BOSCH |
| 104210-2270 | DENSO |
| 104210-2340 | DENSO |
| 104210-8431 | DENSO |
| 11402R | WAI / TRANSPO |
| 12946 | DELCO |
| 27060-0V010 | TOYOTA |
| 27060-36010 | TOYOTA |
| 27060-36011 | TOYOTA |
| 90-29-5726 | WILSON |
| 94862 | DELCO |
| A1045D | PRESTOLITE |
| A-80492 | DIXIE |
| ALN2340 | KRAUF |
| UD11467A | AS-PL |
Video/Publications
A6319Related Items
