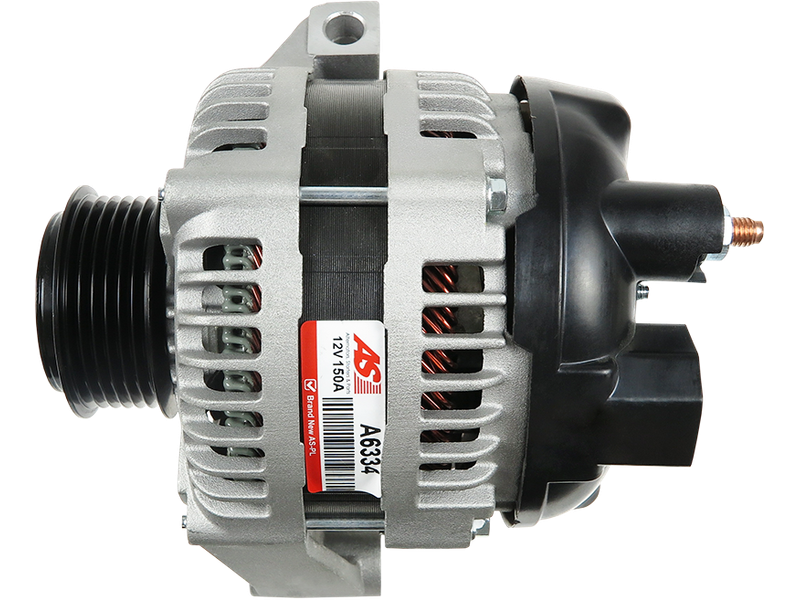

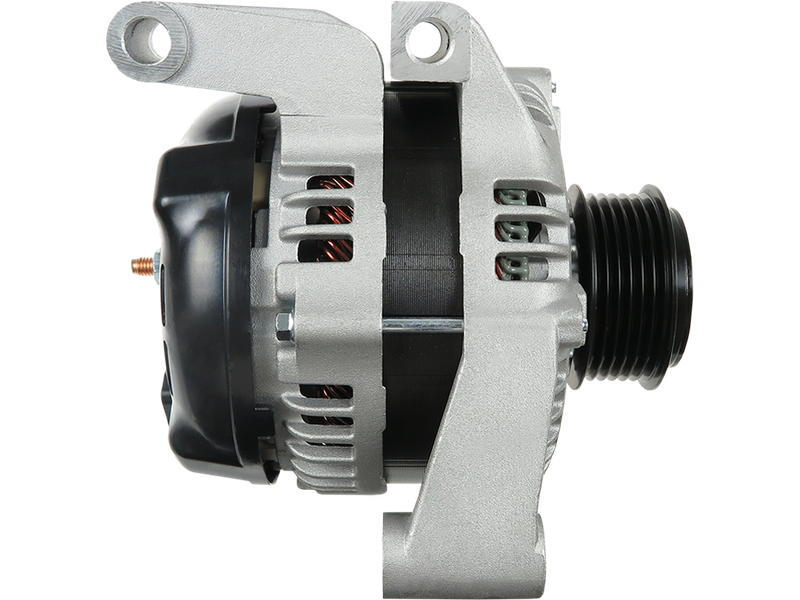

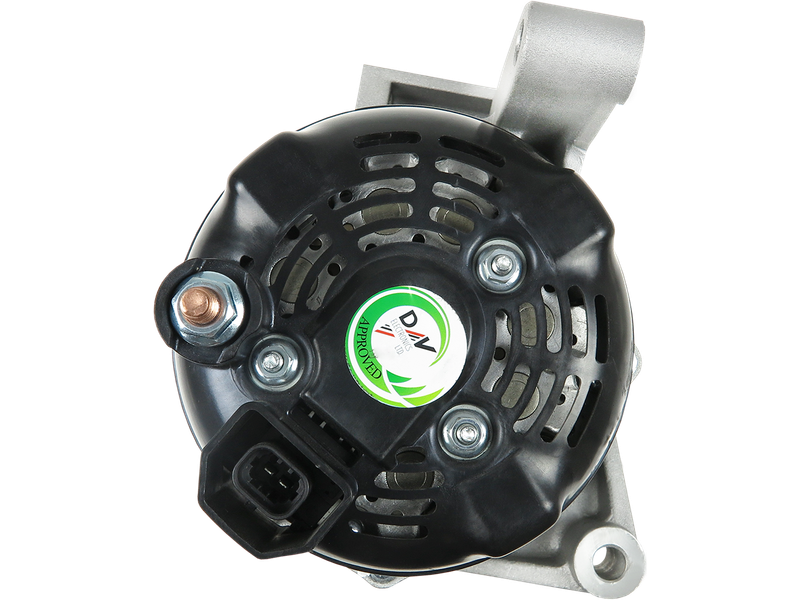

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 562.40 including GST
NZ$ 489.04 excluding GST
or four payments of $140.60
with
Learn More
each
A6334
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-5380Associated Numbers
104210-5380 11237R 12798 15846253 210-0680 90-29-5590 A-80359 UD11504ASpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 43.30 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 43 mm |
| Pad mount thickness (E.2) | 74 mm |
| Pad mount thickness (E.3) | 30 mm |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 56 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Impala 3.9 | 01.2007-12.2008 | |
| CHEVROLET | Monte Carlo 3.9 | 01.2007- |
Reference Information
| 104210-5380 | DENSO |
| 11237R | WAI / TRANSPO |
| 12798 | DELCO |
| 15846253 | DELCO |
| 210-0680 | DENSO |
| 90-29-5590 | WILSON |
| A-80359 | DIXIE |
| UD11504A | AS-PL |
Video/Publications
