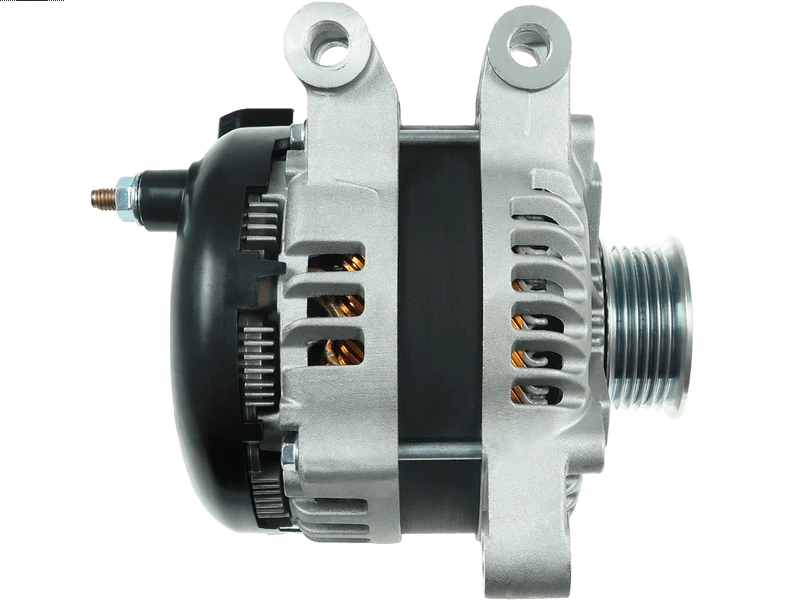

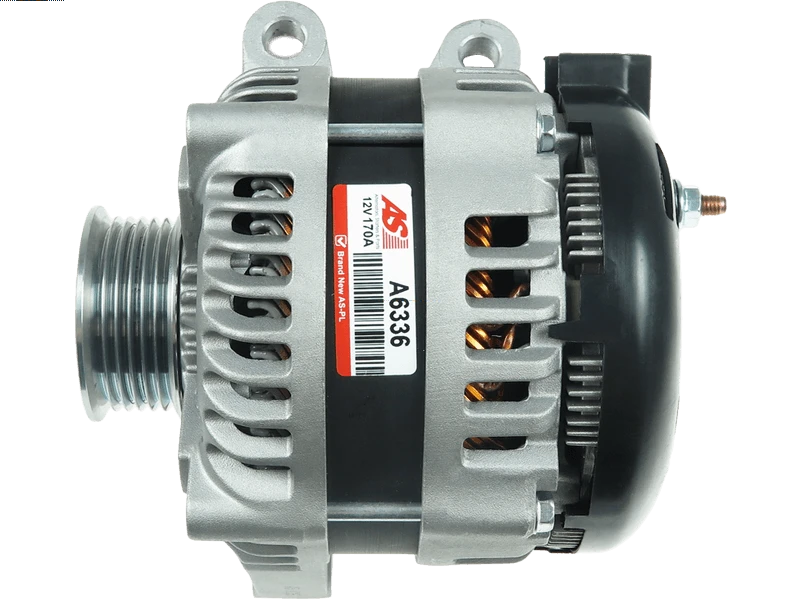

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 595.72 including GST
NZ$ 518.02 excluding GST
or four payments of $148.93
with
Learn More
each
A6336
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-6010Associated Numbers
104210-6010 11251R 12881 15136252 31400-78J10 90-29-5588 A-80364 UD11396ASpecifications
| Amp | 170 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 25 mm |
| Pad mount thickness (E.2) | 50 mm |
| Pad mount thickness (E.3) | 50 mm |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | XTS 3.6 | 01.2013-12.2014 | |
| CHEVROLET | Caprice 3.6 | 01.2012-12.2015 | |
| CHEVROLET | Impala 3.6 | 01.2012- | |
| CHEVROLET | Impala Limited 3.6 | 01.2014-12.2015 | |
| SUZUKI | XL-7 3.6 | 01.2007-12.2009 |
Reference Information
| 104210-6010 | DENSO |
| 11251N | WAI / TRANSPO |
| 11251R | WAI / TRANSPO |
| 12881 | DELCO |
| 15136252 | DELCO |
| 20132410BN | REAL |
| 2040014.0 | SANDO |
| 23106528 | GM |
| 31400-78J10 | SUZUKI |
| 90-29-5588 | WILSON |
| A-80364 | DIXIE |
| CAL40014AS | CASCO |
| UD11396A | AS-PL |
