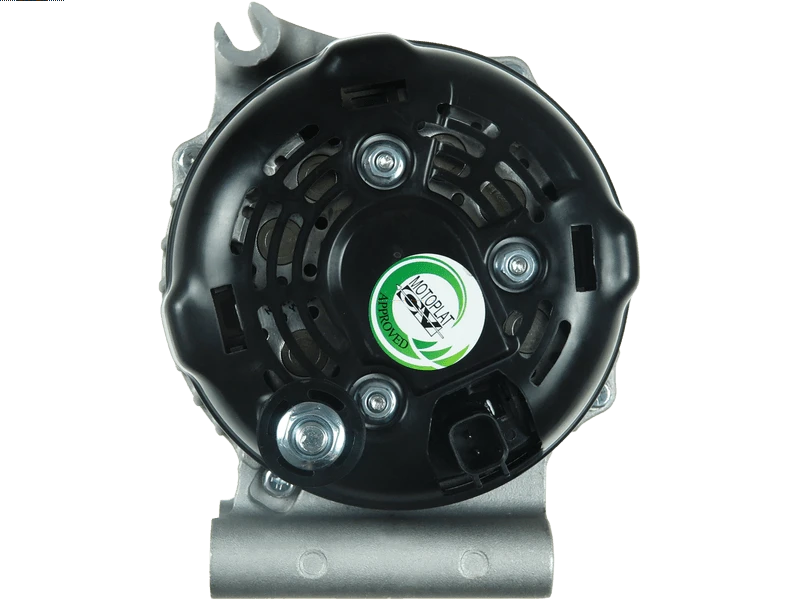

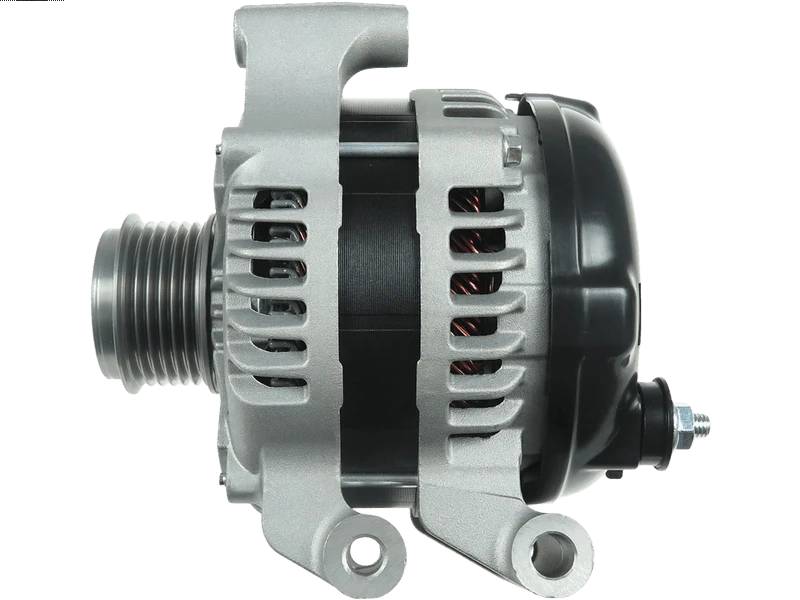

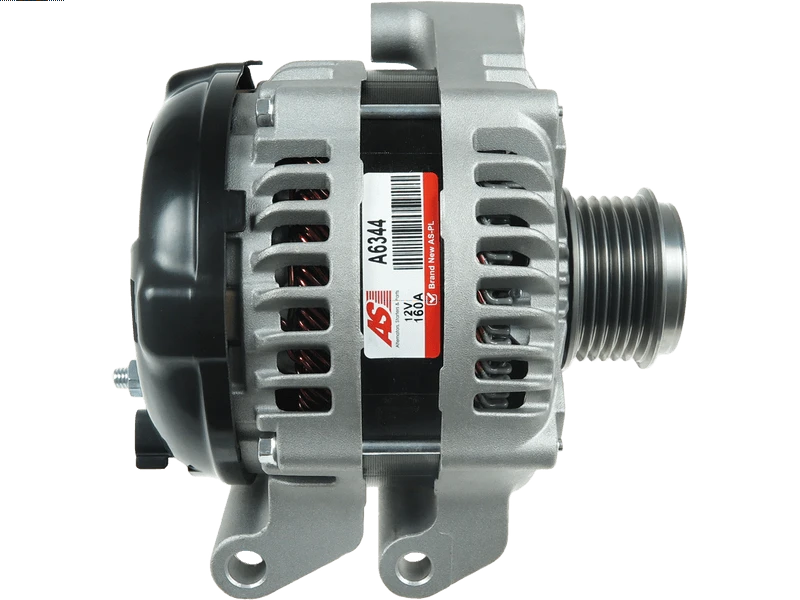

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 516.68 including GST
NZ$ 449.29 excluding GST
or four payments of $129.17
with
Learn More
each
A6344
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
20025 421000-0820 56029622AB 56029622AC 68271763AB A-80691 UD11394ASpecifications
| Amp | 160 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 50 mm |
| Pad mount thickness (E.2) | 93 mm |
| Pad mount thickness (E.3) | 93 mm |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | 200 3.6 V6 | 01.2015-12.2015 | |
| JEEP | Cherokee 3.2 V6 | 01.2014-12.2014 |
Reference Information
| 12886N | WAI / TRANSPO |
| 20025 | DELCO |
| 421000-0820 | DENSO |
| 421000-0821 | DENSO |
| 56029622AB | CHRYSLER |
| 56029622AC | CHRYSLER |
| 68271763AB | CHRYSLER |
| 835.962.160.050 | PSH |
| 90-29-5871 | WILSON |
| A-80691 | DIXIE |
| ALT30650 | WOODAUTO |
| UD11394A | AS-PL |
