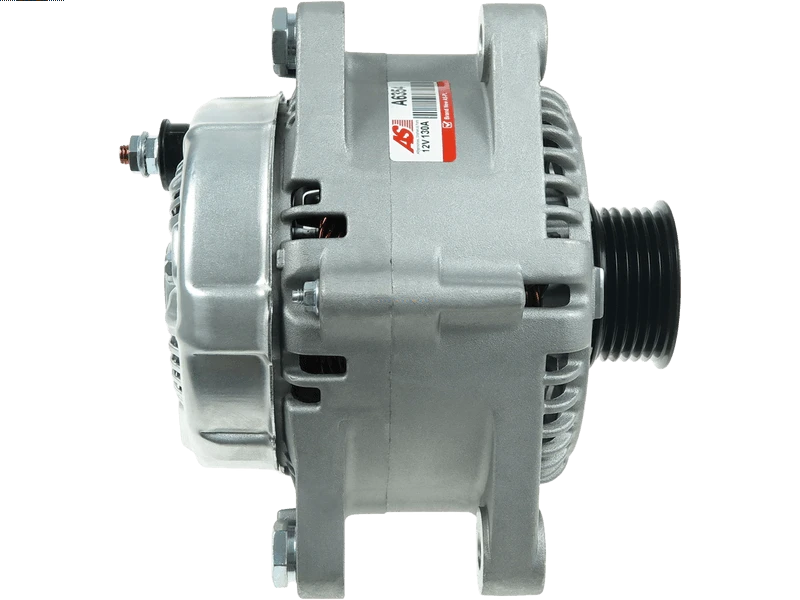

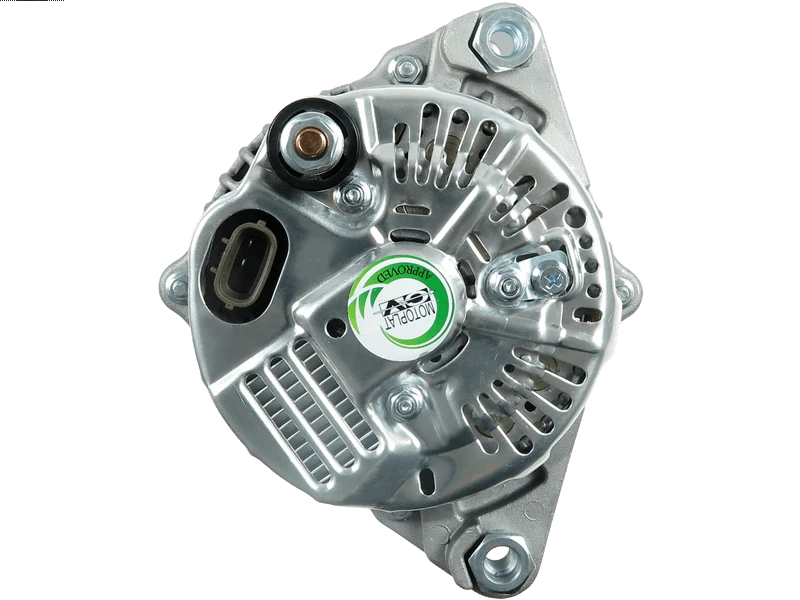

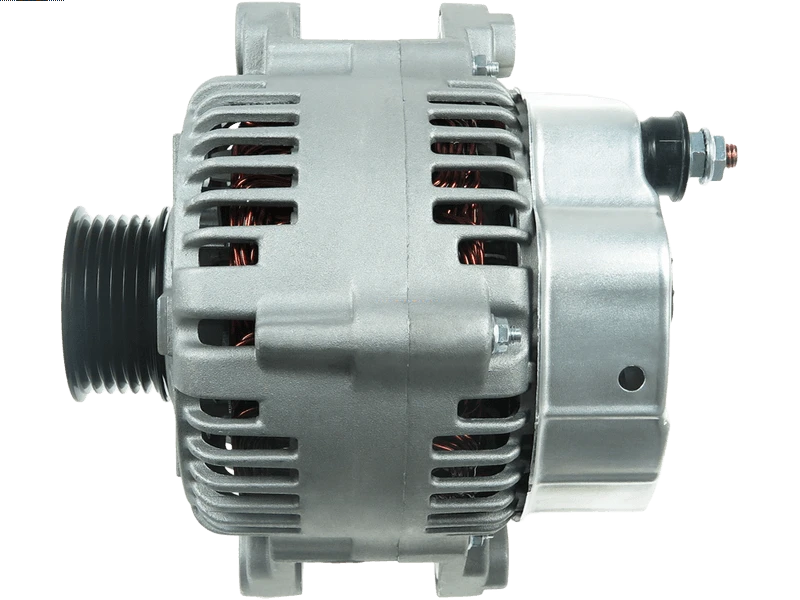

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 459.41 including GST
NZ$ 399.49 excluding GST
or four payments of $114.85
with
Learn More
each
A9309S
A6354
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1022113102Associated Numbers
02131-9153 02131-9330 102211-3102 102211-3240 11191N 12727 12736 37300-3C120 37300-3C170 553747RI 553747RID 90-33-1000 A-80333 A-80340 UD12244A DXA559 anj241 65-8510 14-323Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 43 mm |
| OEM Product | No |
| Plug Code | PL_3304 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Azera 3.3 | 01.2007- | |
| HYUNDAI | Azera 3.8 | 01.2007- | |
| HYUNDAI | Entourage 3.8 | 01.2008-12.2010 | |
| HYUNDAI | Grandeur 3.3 | [G6DB] | 01.2005- |
| HYUNDAI | ix55 3.8 V6 | [G6DA] | 01.2011- |
| HYUNDAI | ix55 3.8 V6 4WD | [G6DA] | 01.2011- |
| HYUNDAI | Santa Fe 3.3 | 01.2007-12.2009 | |
| HYUNDAI | Sonata 2.4 | 01.2009-12.2010 | |
| HYUNDAI | Sonata 3.3 | [G6DB] | 01.2005- |
| HYUNDAI | Veracruz 3.8 | 01.2012-12.2012 | |
| KIA | Borego 3.8 | 01.2009-12.2011 | |
| KIA | Sedona 3.8 | 01.2006-12.2010 | |
| KIA | Sorento 3.3 | [G6DB] | 01.2008- |
| KIA | Sorento 3.3 V6 | [G6DB] | 01.2007- |
| KIA | Sorento 3.3 V6 4WD | [G6DB] | 01.2007- |
Reference Information
| 02131-9153 | HYUNDAI / KIA |
| 02131-9330 | HYUNDAI / KIA |
| 0986CR0144 | BOSCH |
| 0986UR0144 | BOSCH |
| 102211-3102 | DENSO |
| 102211-3240 | DENSO |
| 11191N | WAI / TRANSPO |
| 12727 | DELCO |
| 12736 | DELCO |
| 20128911BN | REAL |
| 2041119.0 | SANDO |
| 37300-3C120 | HYUNDAI / KIA |
| 37300-3C125 | HYUNDAI / KIA |
| 373003C150 | HYUNDAI / KIA |
| 37300-3C170 | HYUNDAI / KIA |
| 446583 | LOGISTIK |
| 553747RI | KUHNER |
| 553747RID | KUHNER |
| 5540861 | MEAT & DORIA |
| 90-33-1000 | WILSON |
| A12DE0818A2 | SIDAT |
| A-80333 | DIXIE |
| A-80340 | DIXIE |
| ALT6415 | ELECTROLOG |
| CAL41119AS | CASCO |
| DRA1143 | DELCO |
| J5110555 | HERTH+BUSS |
| STX110271 | STARDAX |
| STX110271R | STARDAX |
| UD12244A | AS-PL |
