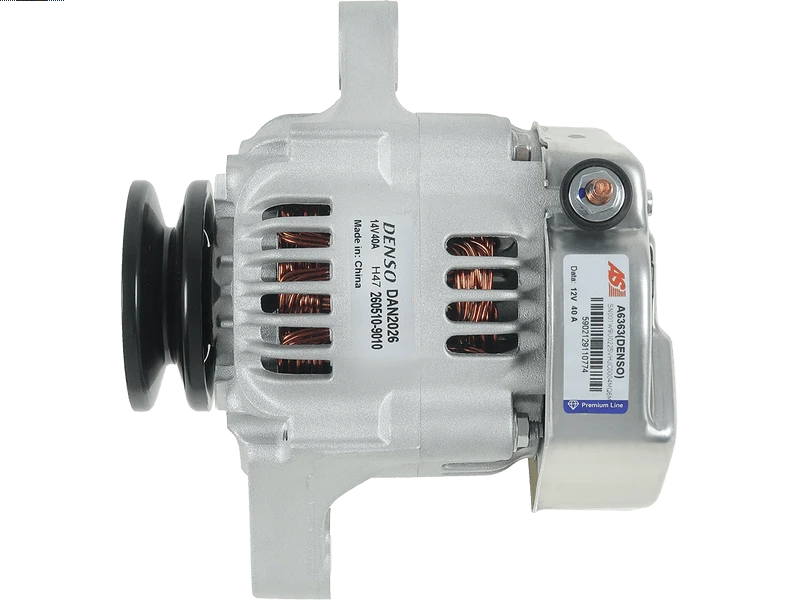

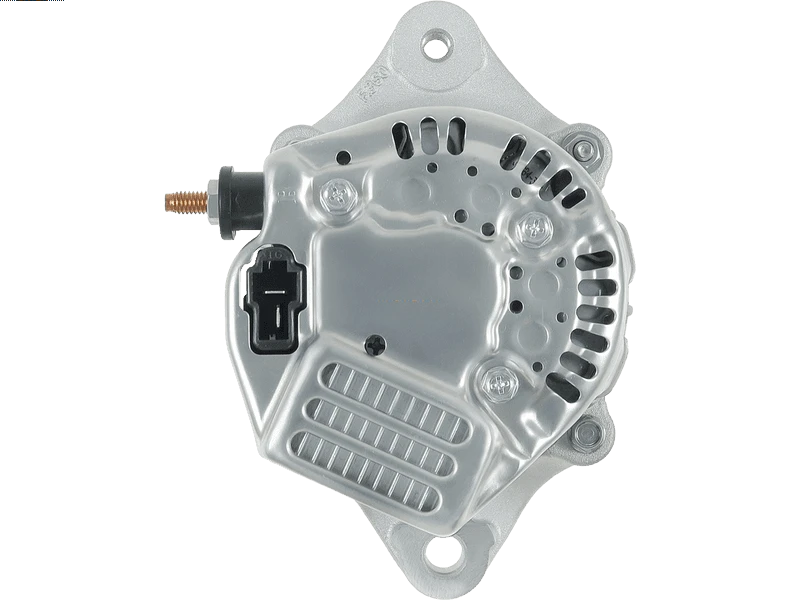

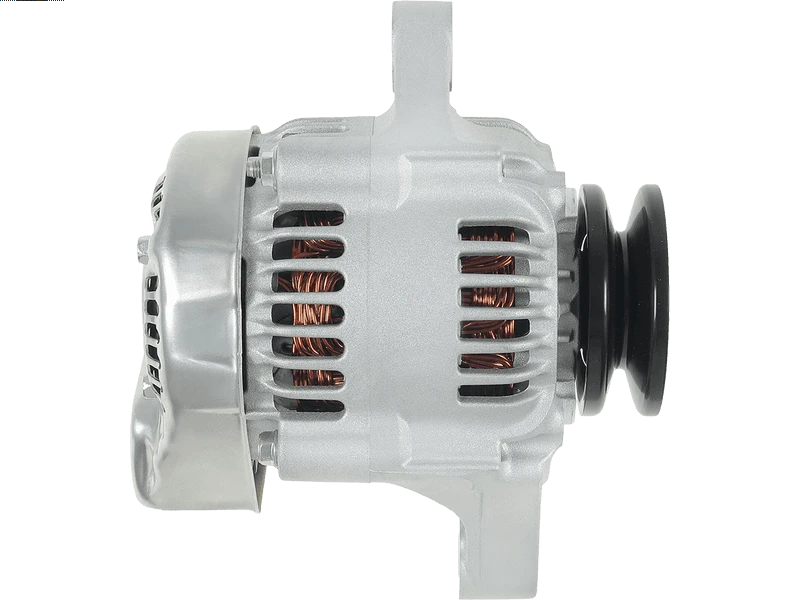

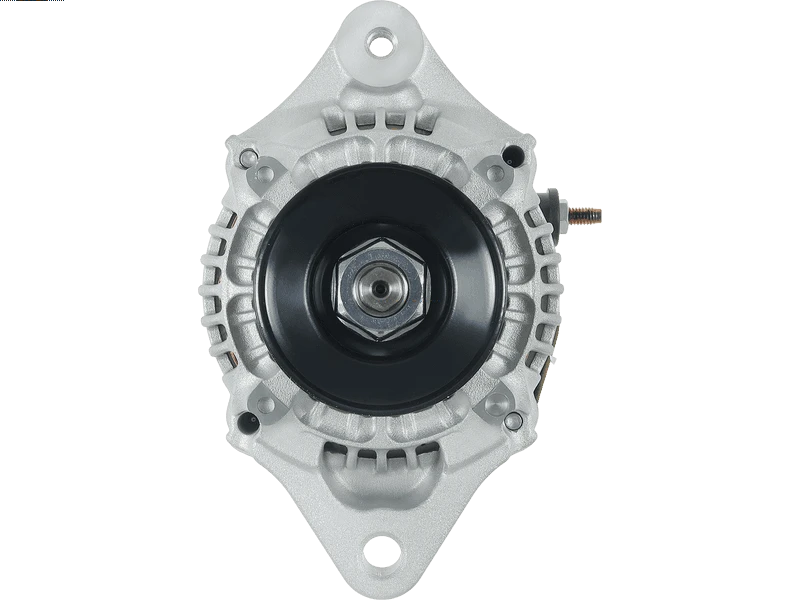

A6363(DENSO) - Brand new OEM DENSO Alternator

Specifications

Amp	40 A
Bottom Mounting Foot Width (B)	21 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Grooves	1 qty
Groove Width (W.1)	9.5 mm
Length (L.1)	144 mm
OEM Product	Yes
Outside Diameter (O.D.1)	38.5 mm
Outside Diameter (O.D.2)	63 mm
Plug Code	PL_2500
Product Line	Premium Line
Product Type	Brand new
Pulley to Mount Distance (A)	43 mm
Pulley Type	SOLID
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DAIHATSU	Cuore 0.6
DAIHATSU	Cuore 0.8	[ED10]	09.1985-11.1996
DAIHATSU	Cuore 0.8	[ED20]	01.1995-11.1996
DAIHATSU	Cuore 0.8 4WD	[ED10]	09.1986-10.1988
DAIHATSU	Hijet 0.8	[CD]	06.1986-12.1989
DAIHATSU	Hijet 1.0	[CB]	06.1986-12.1989
DAIHATSU	Hijet 1.0	[CB41]	12.1992-05.1998
DAIHATSU	Hijet 1.0 i		07.1994-05.1998
HUSQVARNA	PT26D	[403D-11]	01.2008-
JCB	CX	[403C-11]
KUBOTA	Engine
TOYOTA	Various Models	[FGF20]	01.1989-

Reference Information

2706087201 DAN2026 16791-64011 185046220 16705-64011 16705-64012 101211-1310 27060-87202-000 LRA2616 02-631200 2706087202 2040550.1 5540481 1002114690 115.521.040 27060-87502-000 20132055OE CAL40550GS 12189R 2.70609E+12 02-600935 27060-87201-000 100211-4690 1012111310 62812000050 27060-87501-000 16231-64012 LRA02616 1624164012 1624164011 12189N 553861RI 1624164010 UD810110(DENSO)A 27060-87801-000 1588164201 6281-200-002-0 02/631200 100211-1630 15881-64200 28-1504 15881-64202 2706087501 DENDAN2026 ALN0551 1002111680 111048 600-821-2350 02/600935 185046430 101211-8961 100211-1680 2706096001 ALT6115 3A011-74012 1002111630 210657 55639

Video/Publications

1002111630 1002111680 1002114690 1012111310 111048 115.521.040 12189N 12189R 1588164201 1624164010 1624164011 1624164012 185046430 20132055OE 2040550.1 2706087201 2706087202 2706087501 2706096001 28-1504 553861RI 55639 ALN0551 CAL40550GS DAN2026 DENDAN2026 LRA02616 LRA2616 UD810110(DENSO)A 210657
